B-63322EN-2/01 12. CUSTOMER'S BOARD MANIPULATION
- 61 -
12.2.2 Memory Display Function
•
••
• Overview
The memory display function displays the contents of the customer's
board side memory.
Memory display function display and manipulation
To display the CUSTOMER'S BOARD (MEMORY) screen, press the
function menu key, and then press the [CUSTOM BOARD] soft key.
Next, press the Chapter key and then the [MEMORY] soft key.

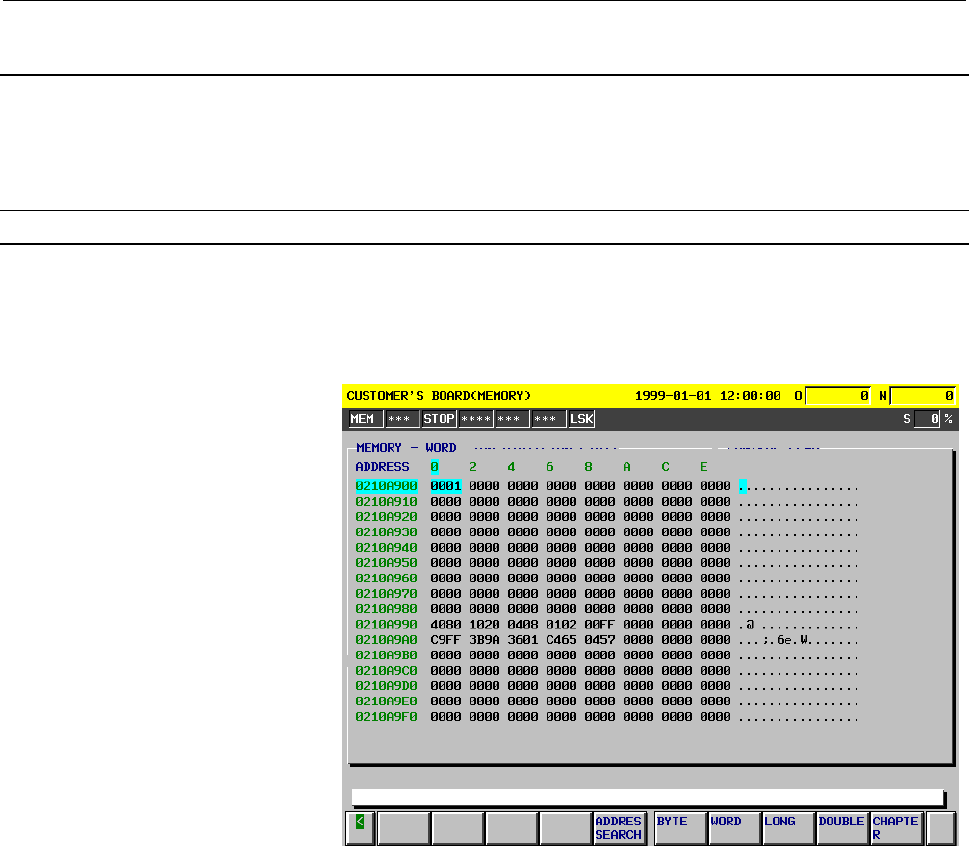

Fig. 12.2.2 (a) CUSTOMER'S BOARD (MEMORY) screen
The CUSTOMER'S BOARD (MEMORY) screen displays the display
start addresses, data (16 bytes × 16 lines), and ASCII-coded character
data (16 bytes × 16 lines). (If the double-display format is used,
however, character data is not displayed.)
One page displays 256 bytes of data, starting at start addresses.
Previous page
Next page
