B-66264EN/01 3.SYSTEM INSTALLATION (SETUP)
- 7 -
3.1 INSTALLING THE FANUC MACRO COMPILER (FOR Series
30i) SYSTEM
This section describes how to install the FANUC Macro Compiler
(for
Series 30i) software on the hard disk.
Procedure
Insert the FANUC Series 30i Macro Compiler system floppy disk into
the floppy disk drive, click [Start], and then click [Run].
Enter the following command line in [Open] and then click <OK>.
?:\MCOMP\MSETUP <in> <out>
? : : Name of the drive containing the Macro Compiler system
floppy disk
("MSETUP.BAT" is in the "MCOMP" directory on the
system floppy disk.")
<in> : Specify the name of the drive containing the Macro Compiler
system floppy disk.
<out> : Specify the drive name of the hard disk to hold the system.

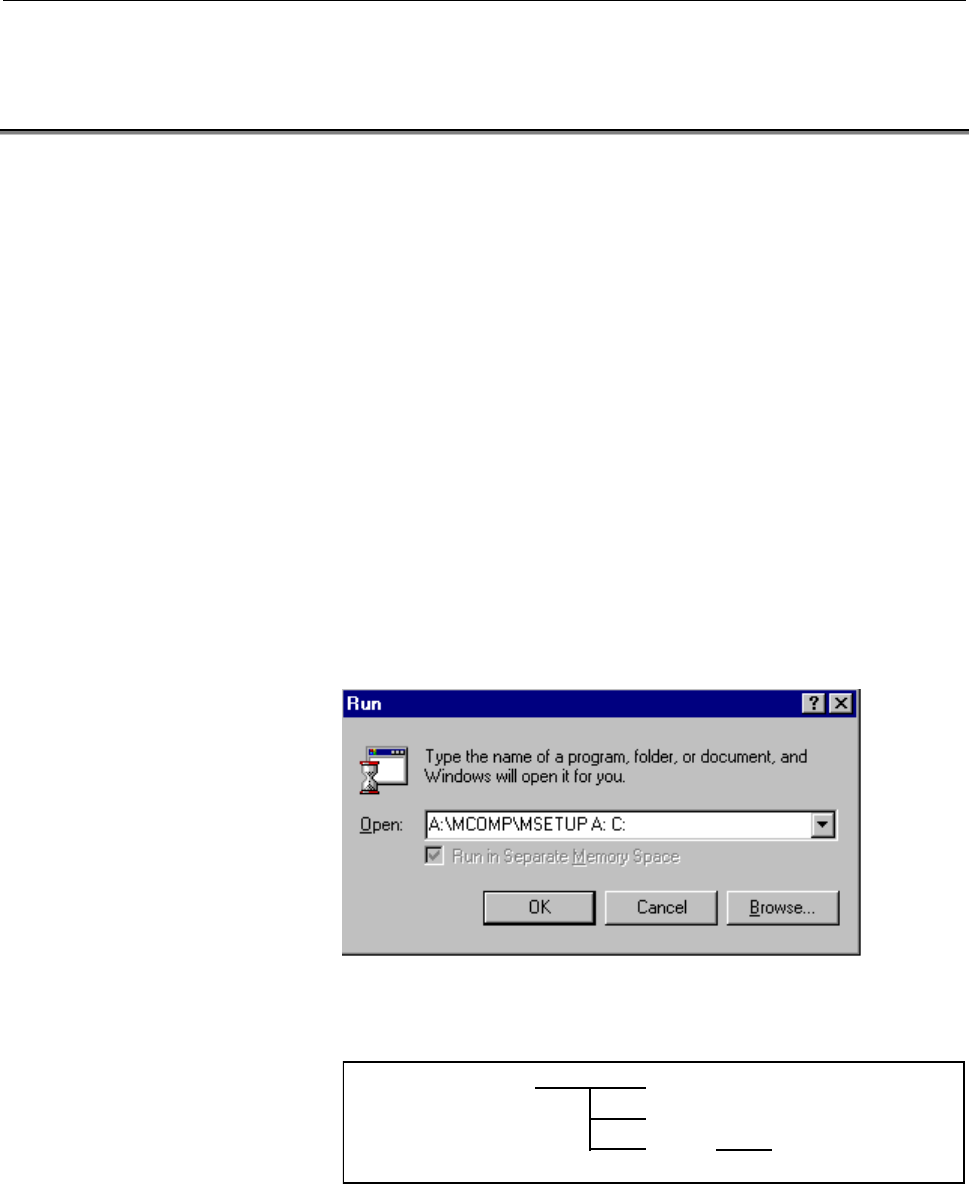

Example of installing the Macro Compiler
This example assumes that the system floppy disk is inserted into
drive A: and the system is to be installed on hard disk drive C:.
When the command line above is entered and then executed, the
following directories are created on drive C: and the system software
and sample programs are copied to them.
C:\MCOMP30I
\TOOL
\SAMPL
\MEX
\USR
