FANUC PANEL i Additional Manual Page 13

Additional Manual
Connecting Manual
For FANUC PANEL i
EDIT
DRAW. NO. CUST
TITLE
DESCRIPTION
DESIG.
DATE
A
-83125E
13
/
SHEET

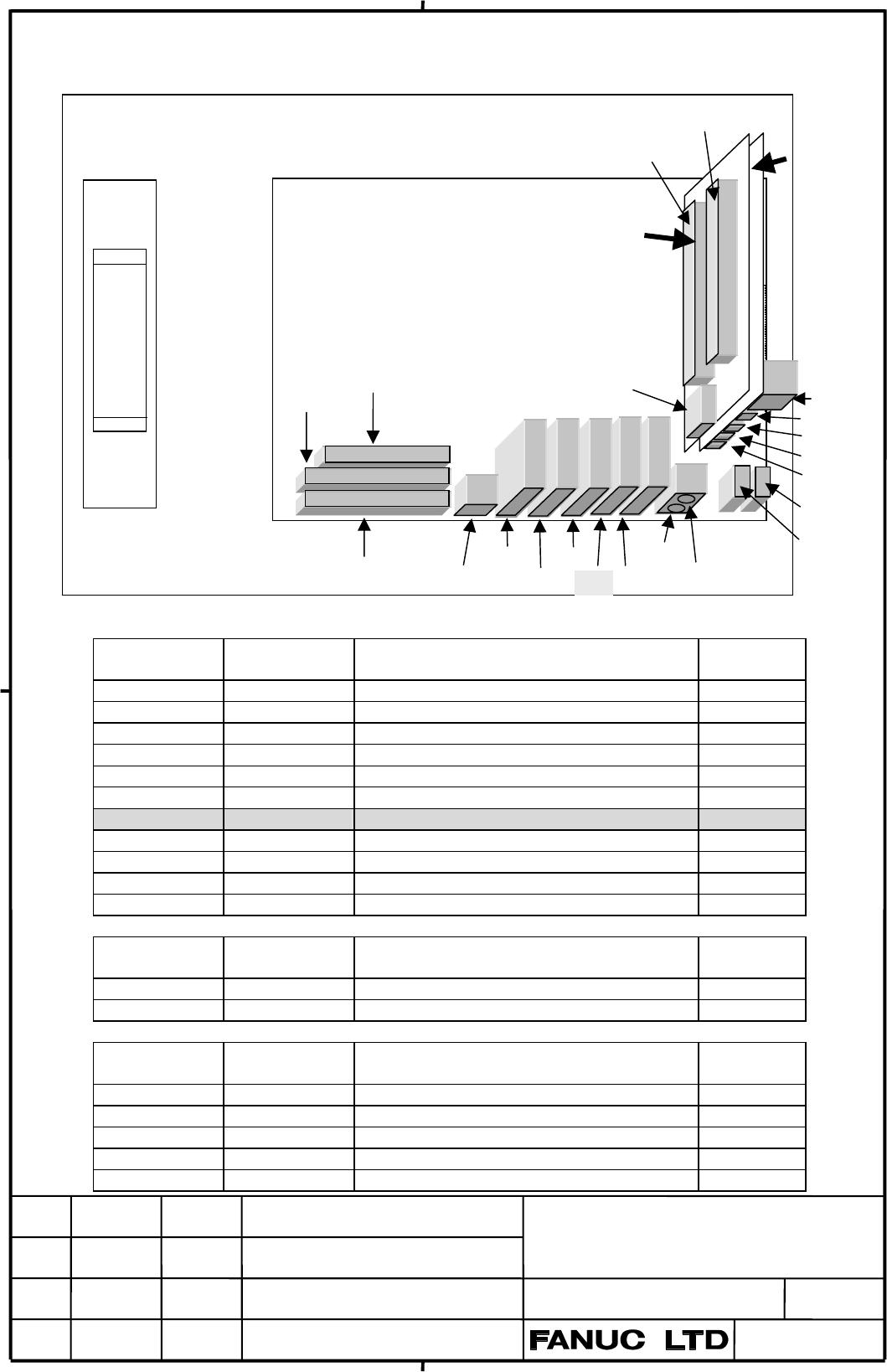

4. Connection to Peripheral
4.1 Connector Location
Master PCB
Connector
Number
Connector
Name
Function
Reference
CA81A, B HDD1, HDD2 HDD signal (Primary, Secondary) Section 4.8
CD34 FDD FDD signal Section 4.9
CD38U ETHERNET Ethernet Section 4.11
JD33 232-1 Serial Port1 Section 4.3.
JD46 232-2 Serial Port 2 Section 4.4.
JD9 CENTRO Parallel Port Section 4.5.
JA61 MDI MDI (300i) Section 4.13
JA63 CRT Video port Section 4.12
CD32L KEY BOARD Keyboard Section 4.7.
CD32U MOUSE Mouse Section 4.7.
CD41L,M USB1,USB2 USB port (channel1,2) Section 4.10.
PCI Back Panel PCB
Connector
Number
Connector
Name
Function
Reference
COP7 or COP21
HSSB High Speed Serial Bus (HSSB) Section 4.6.
CA78A,B PCI SLOT1,2 PCI extension slot Section 5.
Power Supply PCB
Connector
Number
Connector
Name
Function
Reference
CPD14 +24V INPUT Main Power Input Section 4.2.
CPD11A FDD PWR FDD Power Output Section 4.9.
CPD11B HDD PWR 1 HDD Power Output Section 4.8
CPD11C HDD PWR 2 CD-ROM Drive Power Output Section 4.9.
CPE11C HDD FAN FAN for HDD Section 4.8
(5)
J
A
63
CPE11C
Power
Supply
PCB
CPD14
V
iew from
the back side
CD32L
CD32U
CPD11B
JD9 JD33
JD46
CA78
A
CA78B
CD41L
CD41M
C
A
81B
CD34
C
A
81
A
CPD11C
CPD11
A
CD38U
Master PCB
PCI Back Panel
PCB
J
A
61
COP7 (for 150i/160i/180i/210i)
COP21 (for 300i)
(5)
(5)
(5)
05 PANEL i for 300i is added
