Appendix A : Punch panel for PANEL i
1. Summary
FANUC PANEL i is provided with the interface connectors for PC function for example a serial
port or a parallel port. But it is not easy to connect/disconnect cables to these connectors for
customer or end user after PANEL i is integrated in the machine tool because these connectors
are arranged on the rear side of PANEL i.
Punch panel for PANEL i enables user to connect/disconnect cables with ease.
2. Specification
Name Specification
Punch panel
(stand alone type)
A08B-0082-C200
FA Full keyboard
With punch panel
(For 15”LCD type, English)
A08B-0082-C151#EC
FA Full keyboard
with punch panel
(For 15”LCD type, Japanese)
A08B-0082-C151#JC
Cable for serial/USB interface A08B-0082-K810
Cable for parallel interface A08B-0082-K811
Punch panel
for PANEL i
Cable for Keyboard/Mouse A08B-0082-K812
3. Construction

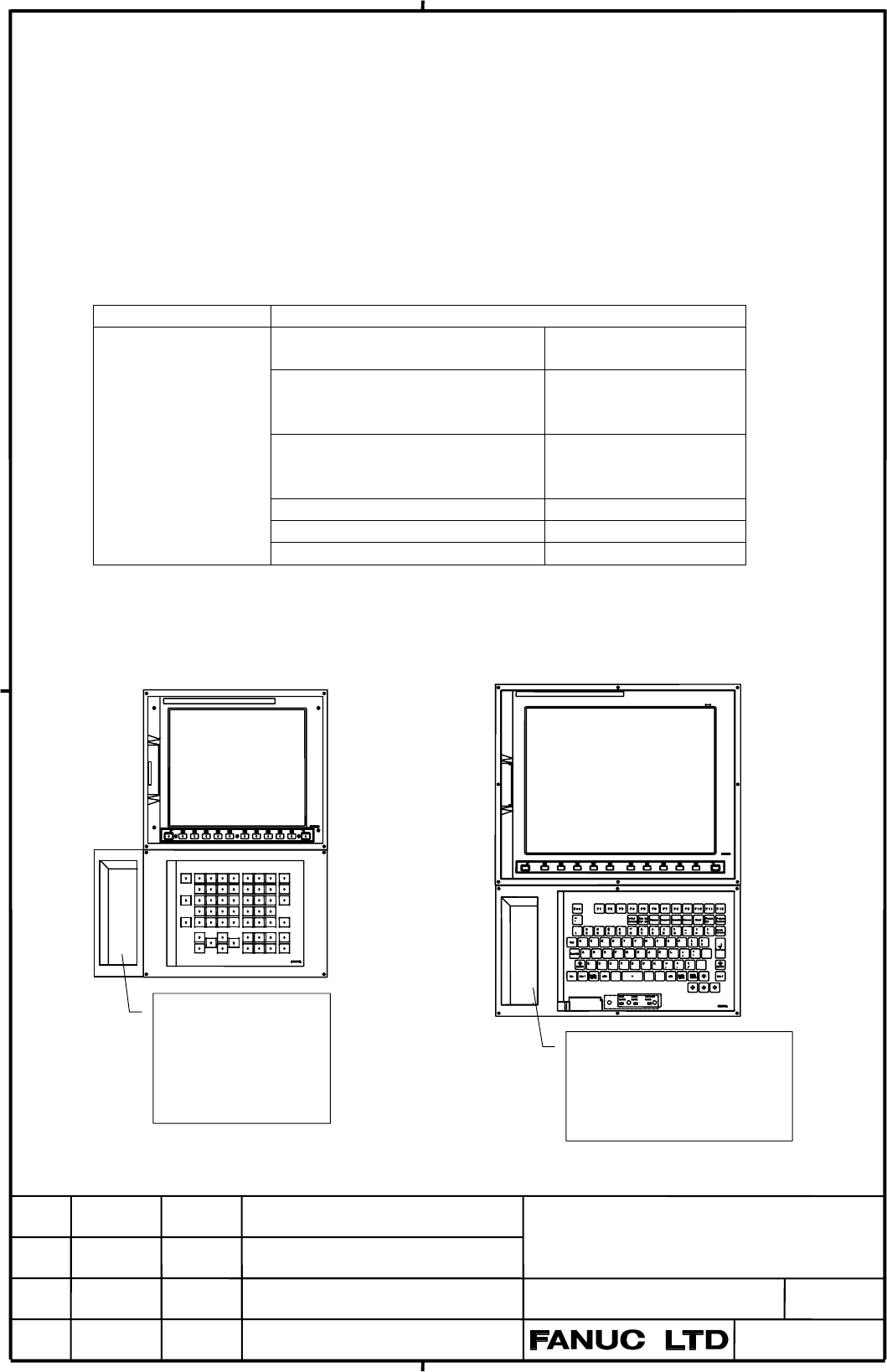

Punch panel (stand alone type) and FA Full keyboard with punch panel is as bellow figure.
Punch panel
(stand alone type)
USB x2
Serial port
Parallel port
Keyboard/Mouse
FA Full keyboard with
punch panel (15”LCD type)
USB x2
Serial port
Paralle port
04 This page is added
