FANUC PANEL i Additional Manual Page 20

Additional Manual
Connecting Manual
For FANUC PANEL i
EDIT
DRAW. NO. CUST
TITLE
DESCRIPTION
DESIG.
DATE
A
-83125E
20
/
SHEET

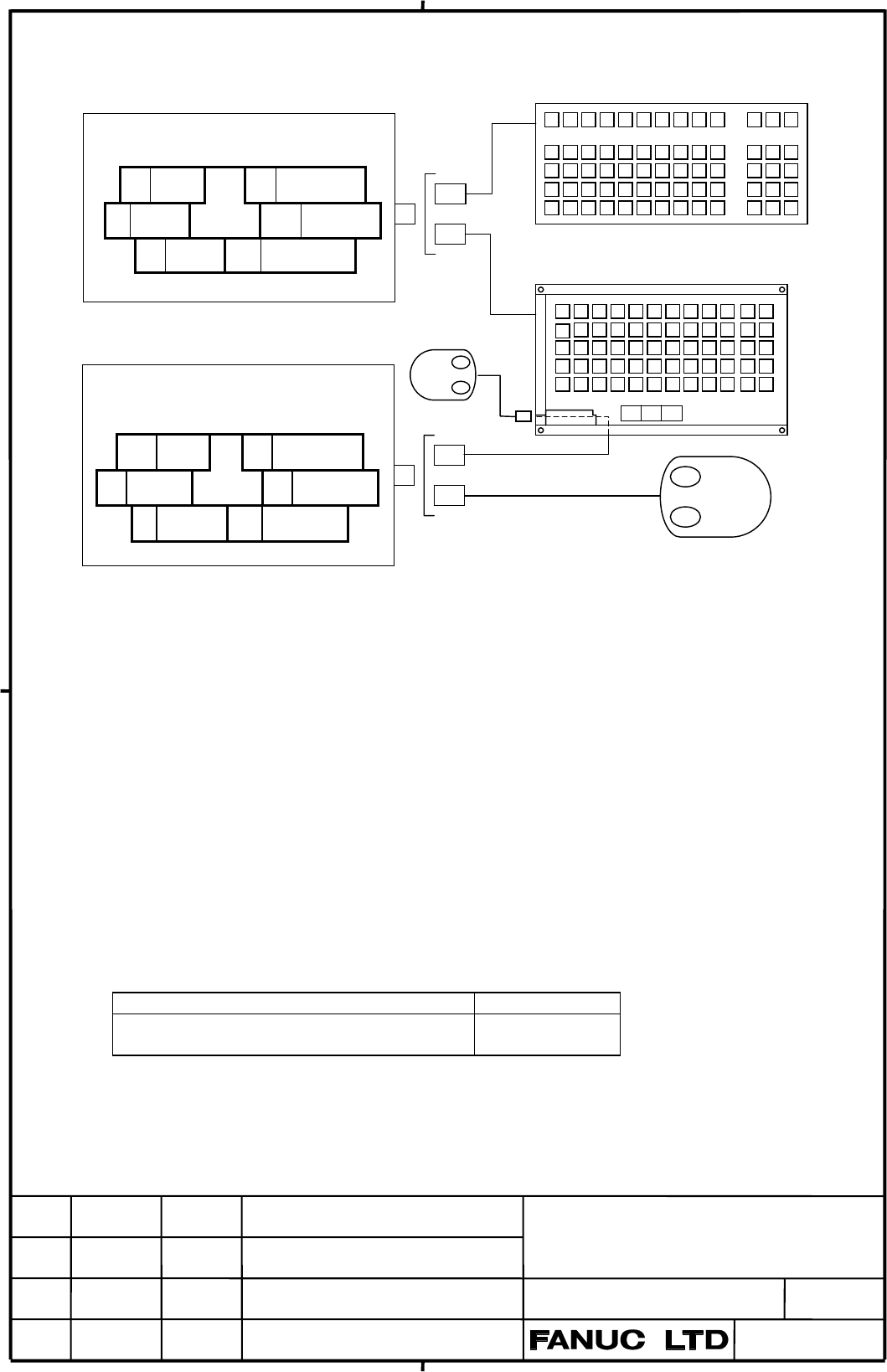

4.7 Keyboard, Mouse
PANEL i
CD32L
（mini-DIN6）
CL32U
（mini-DIN6）
Note 1) Some kinds of Keyboard and Mouse may not work properly with the PANEL i, so careful
checking by the customer will be required. And please be aware that Keyboard and Mouse in
the market is not almost considered about waterproof and dust-roof.
1) RECOMMENDED FULL KEYBOARD
A86L-0001-0210 : 101 type (in the market) Only for application development or maintenance
A86L-0001-0211 : 106 type (in the market) Only for application development or maintenance
A02B-0236-C131#JC : FA Full Keyboard (Japanese) for 10.4” LCD type
A02B-0236-C131#EC :FA Full Keyboard (English) for 10.4” LCD type
A02B-0236-C132#JC : FA Full Keyboard (Japanese) for 12.1” LCD type
A02B-0236-C132#EC : FA Full Keyboard (English) for 12.1” LCD type
A08B-0082-C150#JC : FA Full Keyboard (Japanese) for 15.0” LCD type
A08B-0082-C150#EC : FA Full Keyboard (English) for 15.0” LCD type
Note) Refer to the below manual about FA Full Keyboard.
Name Drawing No.
FA FULL-KEYBOARD FOR FANUC NC
BOARD CONNECTION MANUAL
A-73159E
2) RECOMMENDED MOUSE
A86L-0001-0212・・・Standard PS/2 Mouse (in the market)
(Only for application development or maintenance)
Mouse (in the market)
6 5 KEYCLK
4 +5V 3 0V
2 1 KEYDATA
KB
MS
6 5 MSCLK
4 +5V 3 0V
2 1 MSDATA
FA Full Keyboard
Full Keyboard (in the market)
Mouse (in the market)
