15i/150i - Model B Connection manual (Hardware) Page 105

Connection manual (Hardware)
B–63783EN/01
6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
93
However, the maximum pulse transmission distance for the manual pulse
generator is 50 m. Taking this into consideration, the cable length may
be extended to:
38.37 m (when two generators are used), or
25.58 m (when three generators are used).

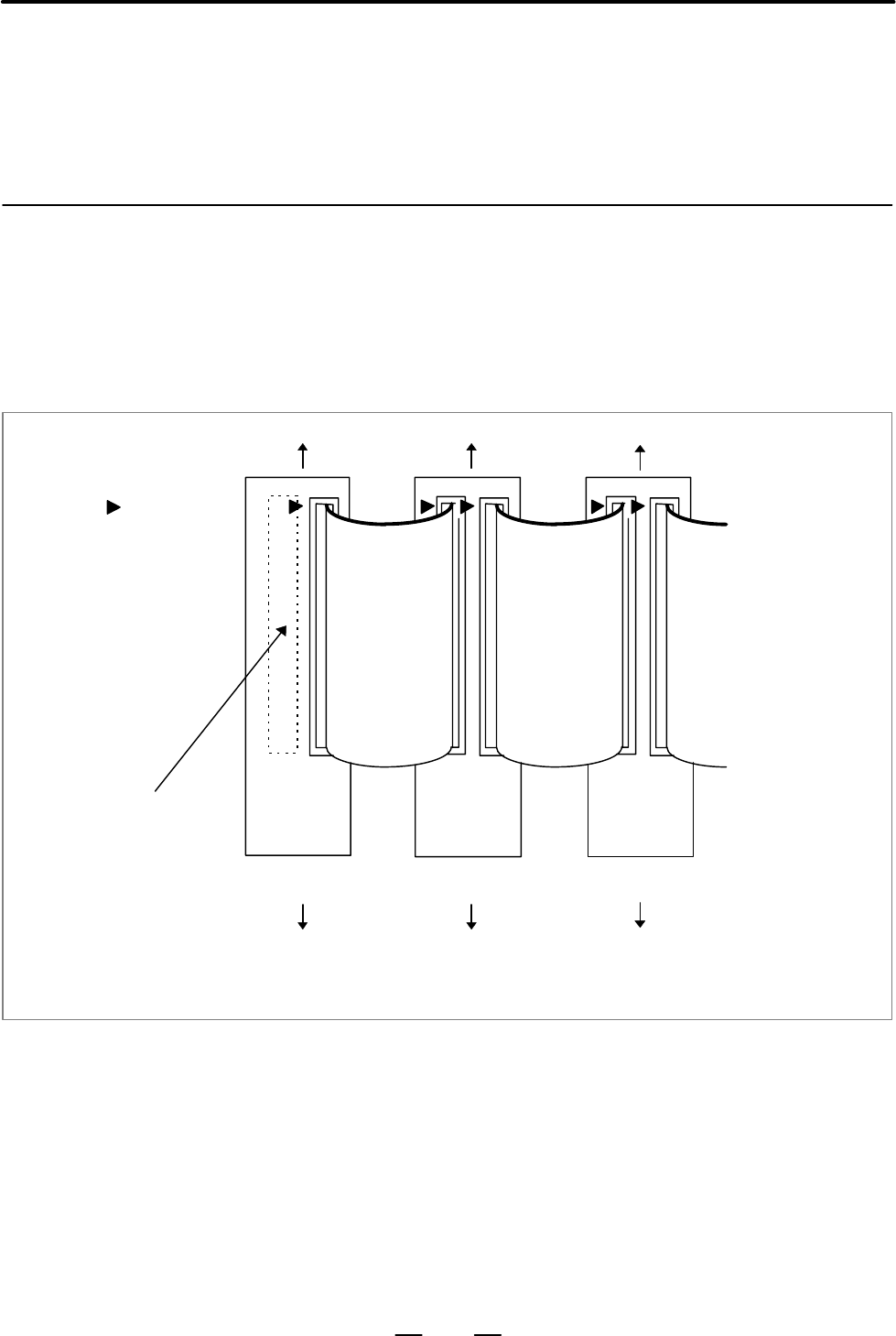

Modules can be connected in the same way, regardless of whether you are
connecting the basic module to an extension module or connecting two
extension modules. Connect the modules by using 34–pin flat cable
connectors as shown in the figure below. Ensure that all 34 pins at one
end of the cable are connected to the corresponding pins at the other end;
e.g., connect the A1 pin to the pin having the same designation (A1) at
the other end.
CA52
CA53
CA52
CA53
CA52
DI/DO interface side DI/DO interface side DI/DO interface side
A1 pin mark
Basic module
Extension module Extension module
Top view
34–pin flat cable
34–pin flat cable34–pin flat cable
34–pin flat cable
Heat sink hole
DIN rail side DIN rail side DIN rail side
Flat cable–side connector specification:
HIF3BA–34DA–2.54R (Hirose Electric Co., Ltd.)
Module connector–side specification:
HIF3BA–34PA–2.54DS (Hirose Electric Co., Ltd.) or
FAP–3403–1202–OBS (Yamaichi Denki Co., Ltd.)
6.3.17
Connection of Basic
and Extension Modules
