15i/150i - Model B Connection manual (Hardware) Page 309

Connection manual (Hardware)

Page of 525

/ 525

B–63783EN/01

7. CONNECTION TO CNC PERIPHERALS

297

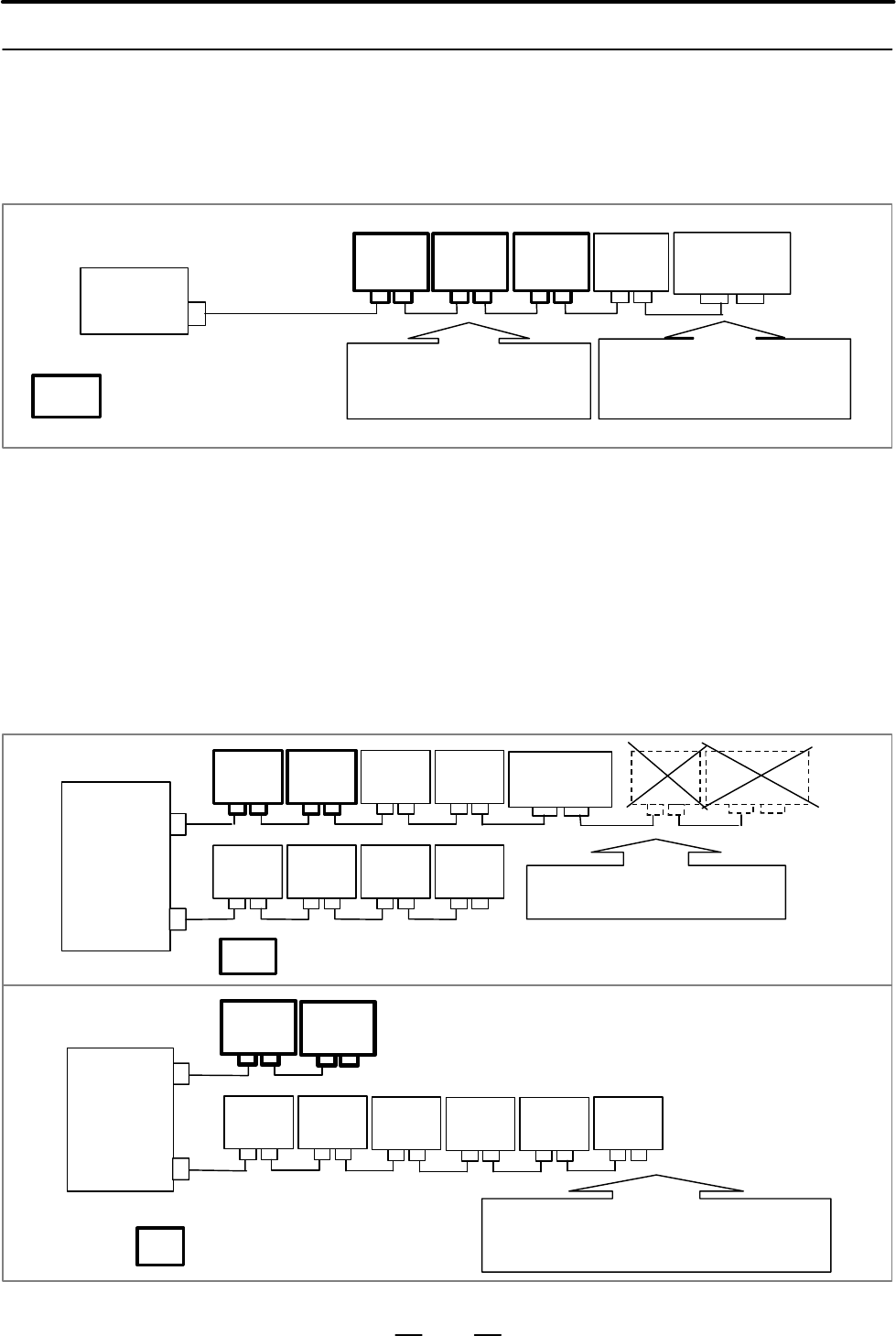

– When high–speed HRV current control is to be used, amplifiers for

high–speed HRV current control are required. As the separate

detector interface unit, a separate detector interface unit supporting

servo HRV3 must be used.

COP10A–1

Axis control card

Axis set for high–speed

HRV current control

1st axis

2nd axis

3rd axis 4th axis

Separate detec-

tor interface unit

For the axes set for high–speed

HRV current control, amplifiers for

high–speed HRV current control

are required.

A unit for servo HRV3 is required.

– When an FSSB line uses high–speed HRV current control,

servo amplifiers for up to four axes can be connected to the

FSSB line, and up to five slaves including a separate detector

interface unit are allowed. When high–speed HRV current

control is used in a system with five or more axes, two FSSB

lines are required, so a TYPE B axis control card is required.

With two FSSB lines, up to eight axes can be controlled.

When an axis control card supporting servo HRV3 is used,

a separate detector interface unit supporting servo HRV3 is

required as the separate detector interface unit even if it is

attached to an FSSB line that does not use high–speed HRV

current control.

COP10A–1

COP10A–2

COP10A–1

COP10B–2

Axis set for high–speed HRV current control

TYPE B axis control card

When an FSSB line uses high–speed

HRV current control, up to four axes (five

slaves) can be connected to the line.

When an FSSB line does not use high–speed

HRV current control, up to eight axes (10 slaves)

can be connected. The limit on the axis control

card, however, is not exceeded.

1st axis 2nd axis 3rd axis 4th axis

Separate

detector

interface unit

4th axis

Separate

detector

interface unit

8th axis7th axis6th axis5th axis

TYPE B axis control card

1st axis

2nd axis

3rd axis 4th axis

5th axis

6th axis 7th axis

8th axis

Axis set for high–speed HRV current control

7.6.3

Requirements for the

FSSB Line
