15i/150i - Model B Connection manual (Hardware) Page 319

Connection manual (Hardware)
B–63783EN/01
7. CONNECTION TO CNC PERIPHERALS
307
(1)Use the unit in a completely sealed cabinet.
(2)Mount the unit on a vertical surface, and allow a space of at least 100
mm above and below the unit. Do not place any unit generating a large
amount of heat under the detector interface unit.
(3)For the dimensions of the unit, see the corresponding outline drawing
in Appendix A.
CAUTION
This unit requires a clearance on both sides for
maintenance purposes to accommodate a screwdriver
inserted obliquely when the detector interface unit is
mounted or removed.
As a guideline, allow a gap of at least about 20 mm between
this unit and each adjacent unit if the detector interface unit
is not shorter than adjacent units, and about 70 mm if it is
shorter.
If this unit is mounted next to the side of the cabinet, allow
a gap of at least about 70 mm between the unit and the
cabinet side.

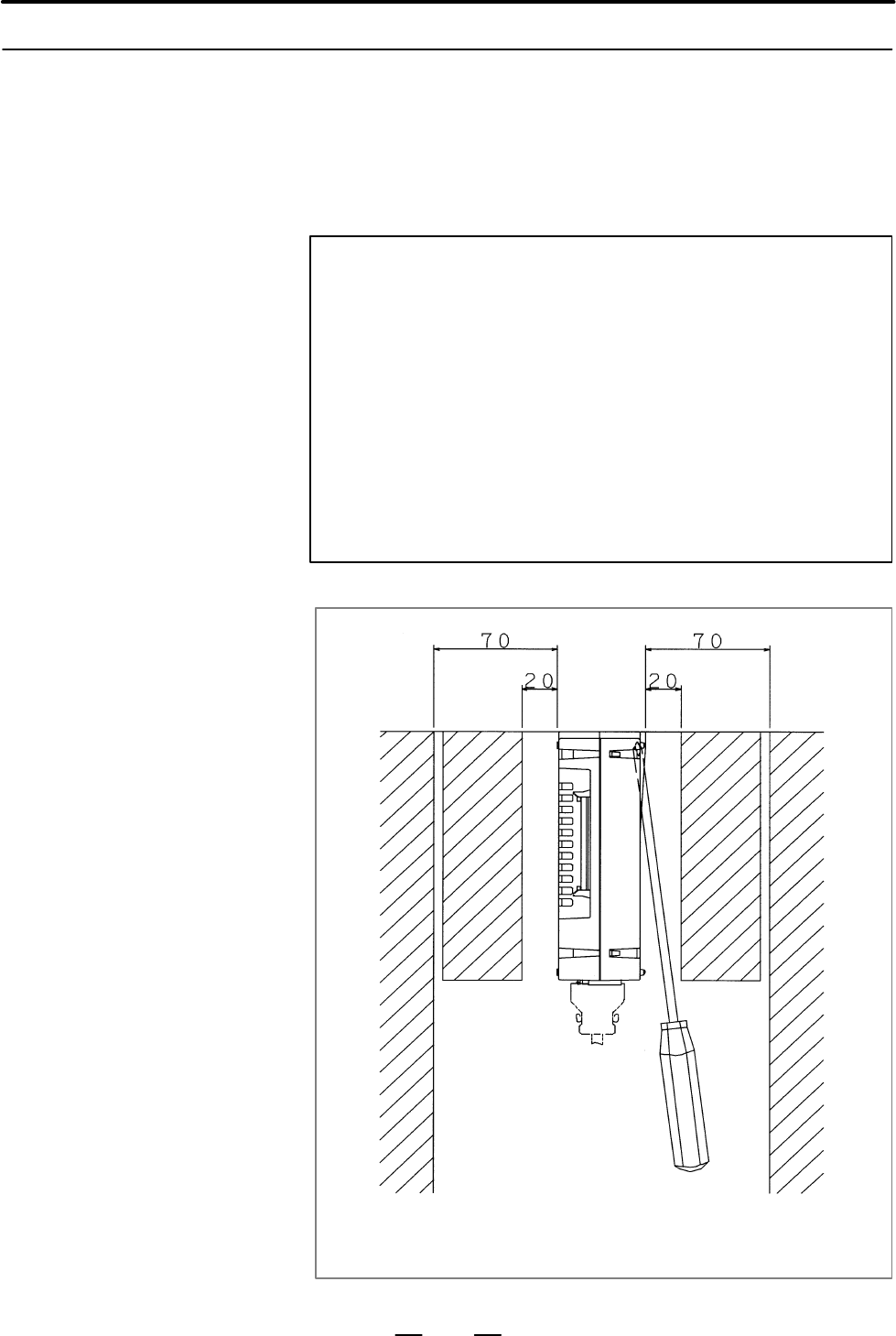

Maintenance clearance around the separate detector interface unit
7.6.4.9
Cautions for mounting
separate detector
interface unit
