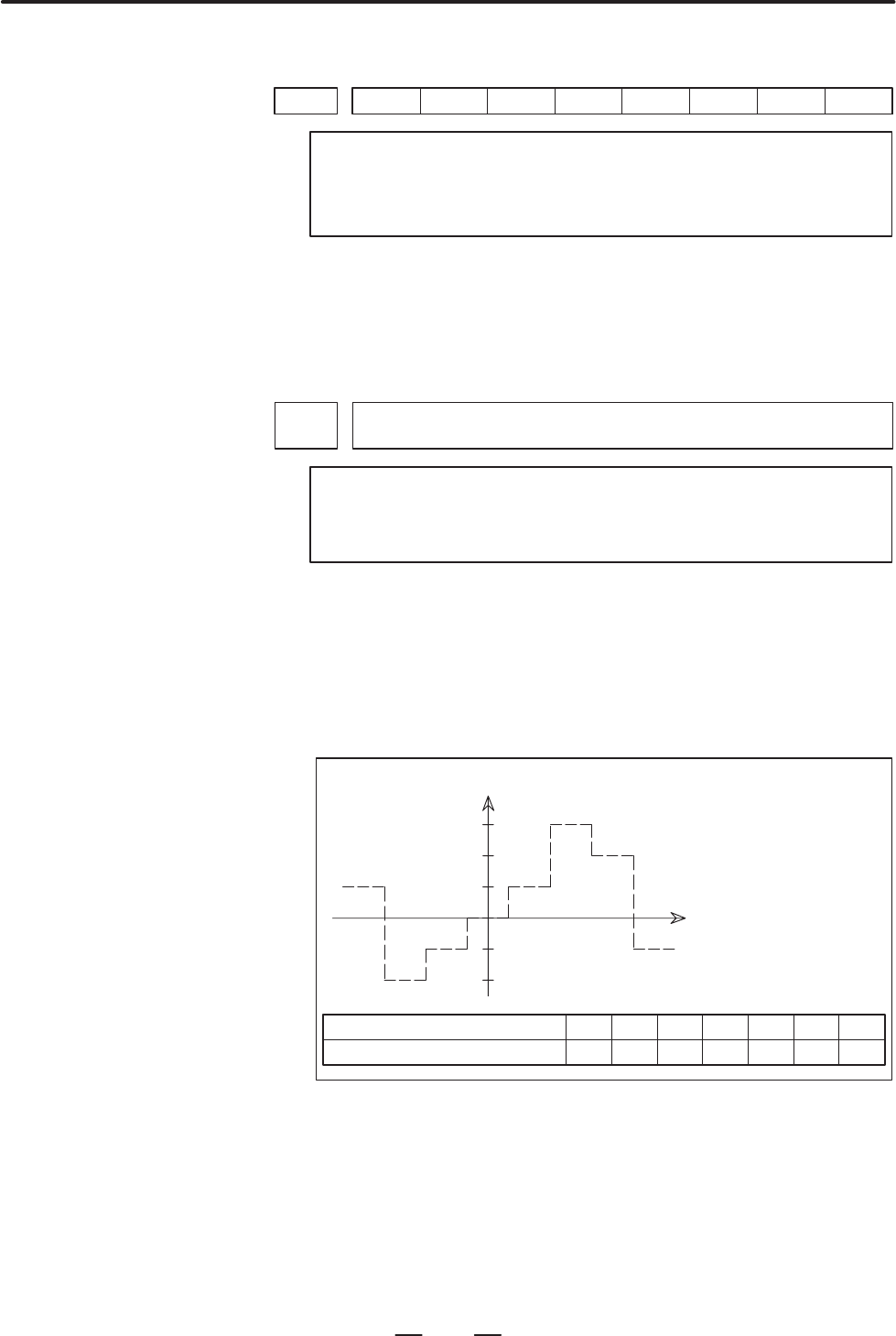

Series 0i-PC Parameter manual Page 118

Parameter manual
4. DESCRIPTION OF PARAMETERS
B–64160EN/01
110
#7
3605
#6 #5 #4 #3 #2 #1 #0
BDP
NOTE
When this parameter has been set, the power must be
turned off before operation is continued.
[Data type] Bit
BDP Both–direction pitch error compensation is:
0 : Not used.
1 : Used.
3620
Number of the pitch error compensation position for the reference position for
each axis
NOTE
When this parameter is set, the power must be turned off
before operation is continued.
[Data type] Word axis
[Unit of data] Number
[Valid data range] 0 to 1023
Set the number of the pitch error compensation position for the reference
position for each axis.
3
2
1
–1
–2
Pitch error compensation value (absolute value)
Reference position
Pitch error compensation
position (number)
Compensation position number
Set compensating value
31 32 33 34 35 36 37
+3 –1 –1 +1 +2 –1 –3
Fig.4.18 Pitch Error Compensation Position Number and Value (Example)
In the above example, set 33 as the number of the pitch error
compensation position for the reference position.
4.18
PARAMETERS OF
PITCH ERROR
COMPENSATION
