4. DESCRIPTION OF PARAMETERS
B–64160EN/01
60
θ
θ

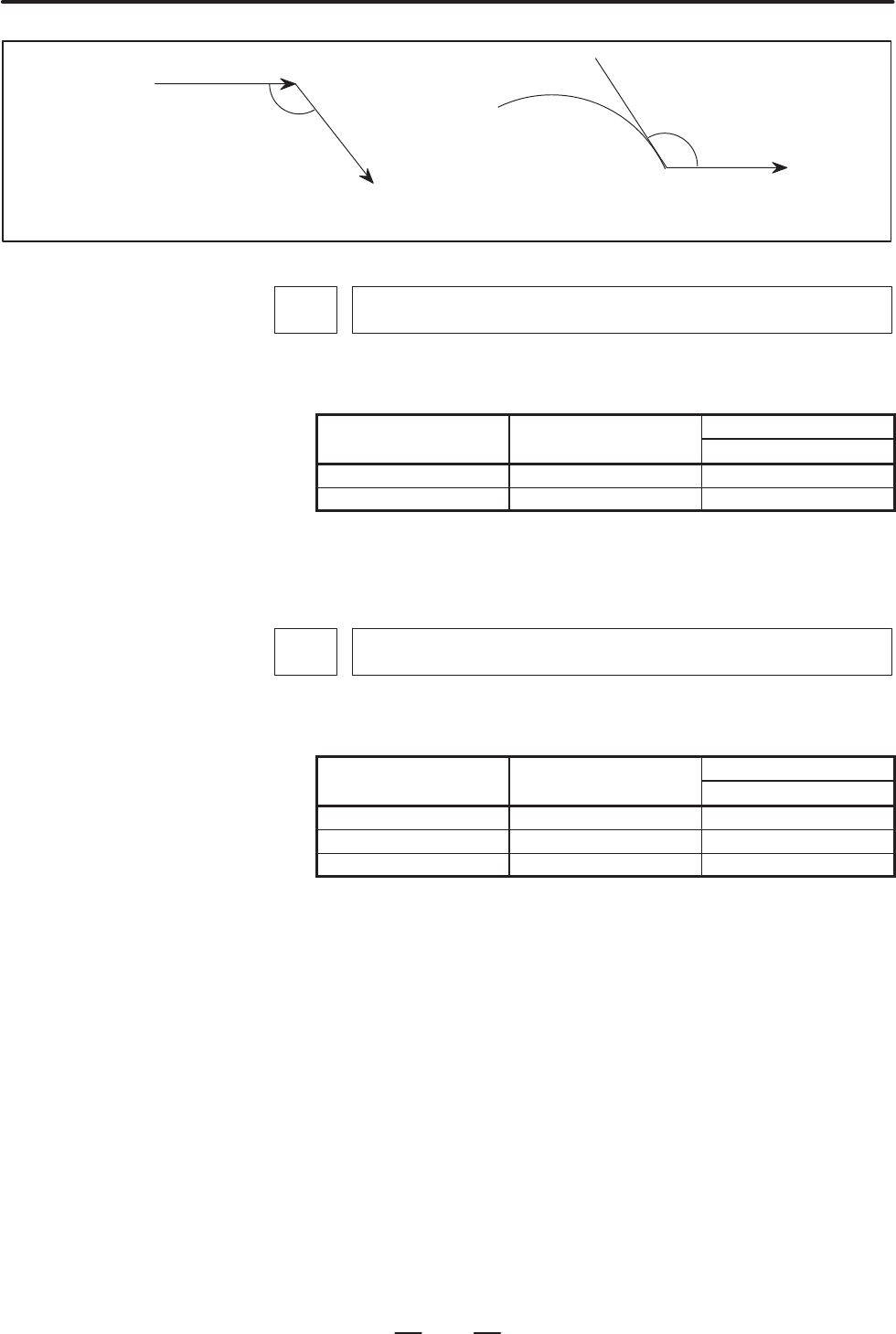

Block A (G01)
Block B (G01)
Angle subtended by two straight lines
Block A (G02)
Block B (G01)
Angle subtended by an arc and its tangent
1780
Allowable speed difference for the speed difference–based corner deceleration
function (for advanced preview control)
[Data type] Word
[Unit of data, valid range]
Increment system
Unit of data
Valid range
I
ncremen
t
sys
t
em
U
n
it
o
fd
a
t
a
IS-A, IS-B
Millimeter machine 1 mm/min 6 to 15000
Inch machine 0.1 inch/min 6 to 6000
Set the speed difference for the speed difference–based automatic corner
deceleration function when linear acceleration/deceleration before
interpolation is used.
1783
Allowable speed difference for the speed difference based corner deceleration
function (for advanced preview control)
[Data type] Word axis
[Unit of data, valid range]
Increment system
Unit of data
Valid range
I
ncremen
t
sys
t
em
U
n
it
o
fd
a
t
a
IS-A, IS-B
Millimeter machine 1 mm/min 6 to 15000
Inch machine 0.1 inch/min 6 to 6000
Rotation axis 1 deg/min 6 to 15000
A separate allowable feedrate difference can be set for each axis. The
allowable feedrate difference is set for each axis with this parameter.
Among the axes that exeed the specified allowable feedrate difference, the
axis with the greatest ratio of the actual feedrate difference to the
allowable feedrate difference is used as the reference to calculate the
reduced feedrate at the corner.
