3 FORMAT

3.1 HIGH-SPEED PECK TAPPING CYCLE

In case of the parameter PCP(No.5200#5)=0, if commanding G84/G88 as the tapping, the

high-speed peck tapping cycle is performed.

G84 X(U)_ C(H)_Z(W)_ R_ P_ Q_ F_ K_ M_ ;

G88 Z(W)_ C(H)_X(U)_ R_ P_ Q_ F_ K_ M_ ;

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole and the position

of the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of the hole and at point R when a return is made

Q_ : Depth of cut for each cutting feed

F_ : The cutting feedrate

K_ : Number of repeats (if required)

M_ : M code for C-axis clamp (if required)

Name

No.

Date

Contents

Draw u

FANUC Series 16i /18i /21i

–

TA/TB

Peck tapping cycle (G84 or G88)

Specifications

A-78549E

2004.06.09

4/16

Apprv.

Desig.

Desi

T. Kurokawa

G84 or G88 (G code A or G98 mode)

G84 or G88 (G99 mode)

Point Z

Point R

(3)

(2)

(1)

CCW

P1 CCW

Initial

level

M(a+1)

Point R

level

Point Z

Point R

(1)

(2)

(3)

CCW

M(a+1)

Point R

level

P1 CCW

d = Return value

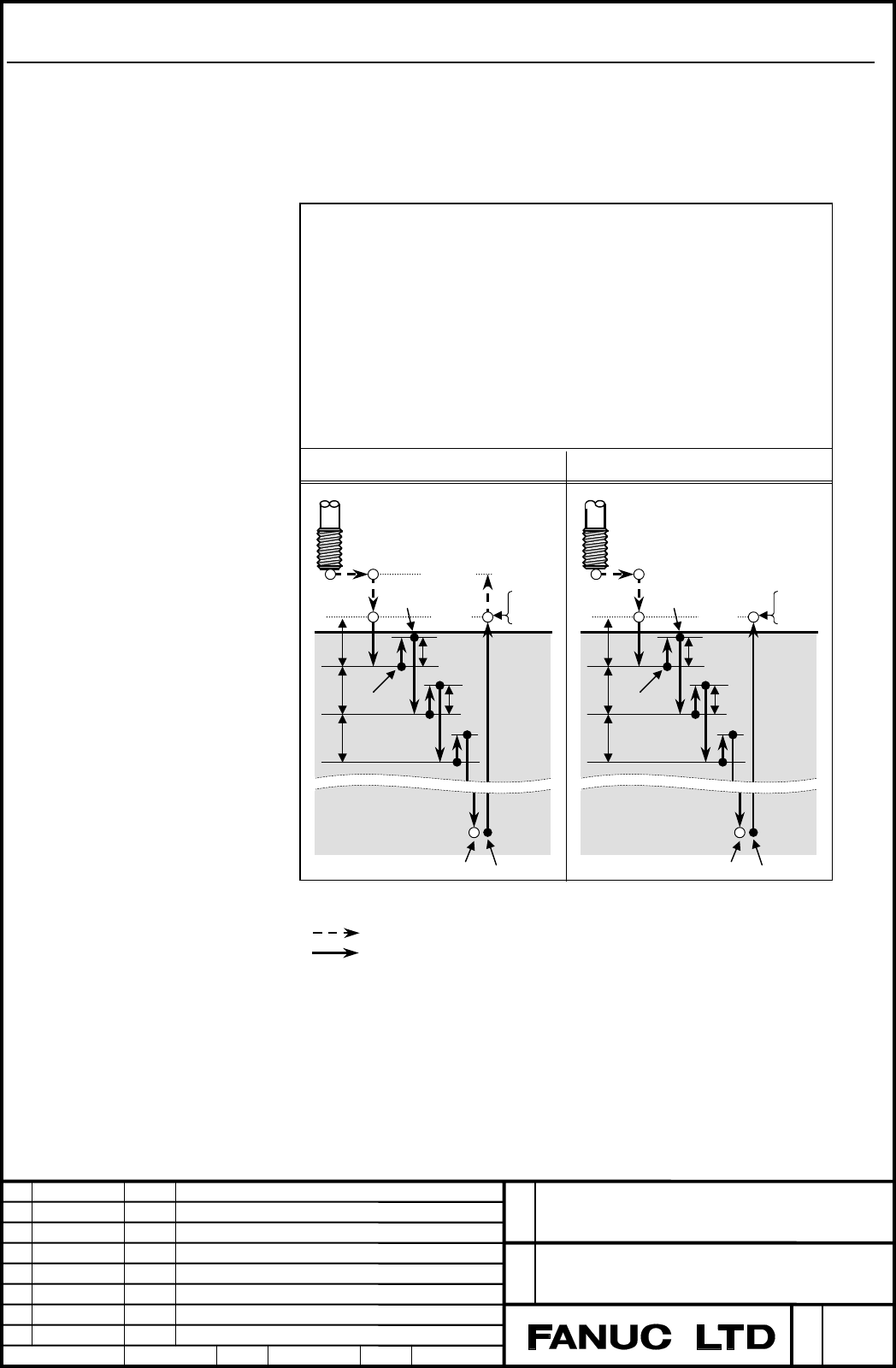

- High-speed peck tapping cycle

When the cut from Point R, only the distance

which was commanded by address Q is

performed. (Operation (1))

After that, the M code for the spindle CCW is

output and the tool returns only about the

distance d (Return Value) which was set to

parameter No.5213. (Operation (2))

After that, the M code for spindle CW is

output and the cutting of distance (q+d) is

performed. (Operation (3))

After that, until the tip reaches the hole-

bottom (Point Z), Operation (2) and

Operation (3) are repeated.

Each mark in the above figure shows the following operation.

CCW

M(a+1)

Note 1 Before outputting each M code of the spindle CCW rotation and spindle CW rotation,

the M05 output is possible. (Parameter M5T(No.5101#6))

Note 2 P1, Ma, M(a+1) and P2 aren't executed (output) when there are not a

command/setting.

: Positioning (rapid traverse G00)

: Cutting feed (linear interpolation G01)

: Dwell time which was commanded by the program by using the address P

: M code for the spindle CCW rotation is output (M04 or Parameter No.5113 )

: M code for the spindle CW rotatiuon is output (M03 or Parameter No.5112 )

: M code for C-axis clamp is output ( a=Setting value of parameter No.5110 )

: M code for C-axis unclamp is output

: Dwell time which was set by parameter No.5111
