FANUC Series 16i /18i /21i Additional Manual Page 3

Additional Manual
Edit
Apprv.Desig.
Sheet
Title
Draw
No.
3
/
11
Date
Design
Descri
p
tion
Date
FANUC Series16i/18i/21i–MB/TB
Automatic operation and temporary
storage of external program
ith M l M
A-79189EN
03.Sep.’03
2. Specifications
2.1 Size of temporary storage memory
The maximum size of registrable program is 9500m for the size of the part
program storage memory and the temporary storage memory together.
Size of the temporary part program storage memory
= 9,500m - size of the part program storage

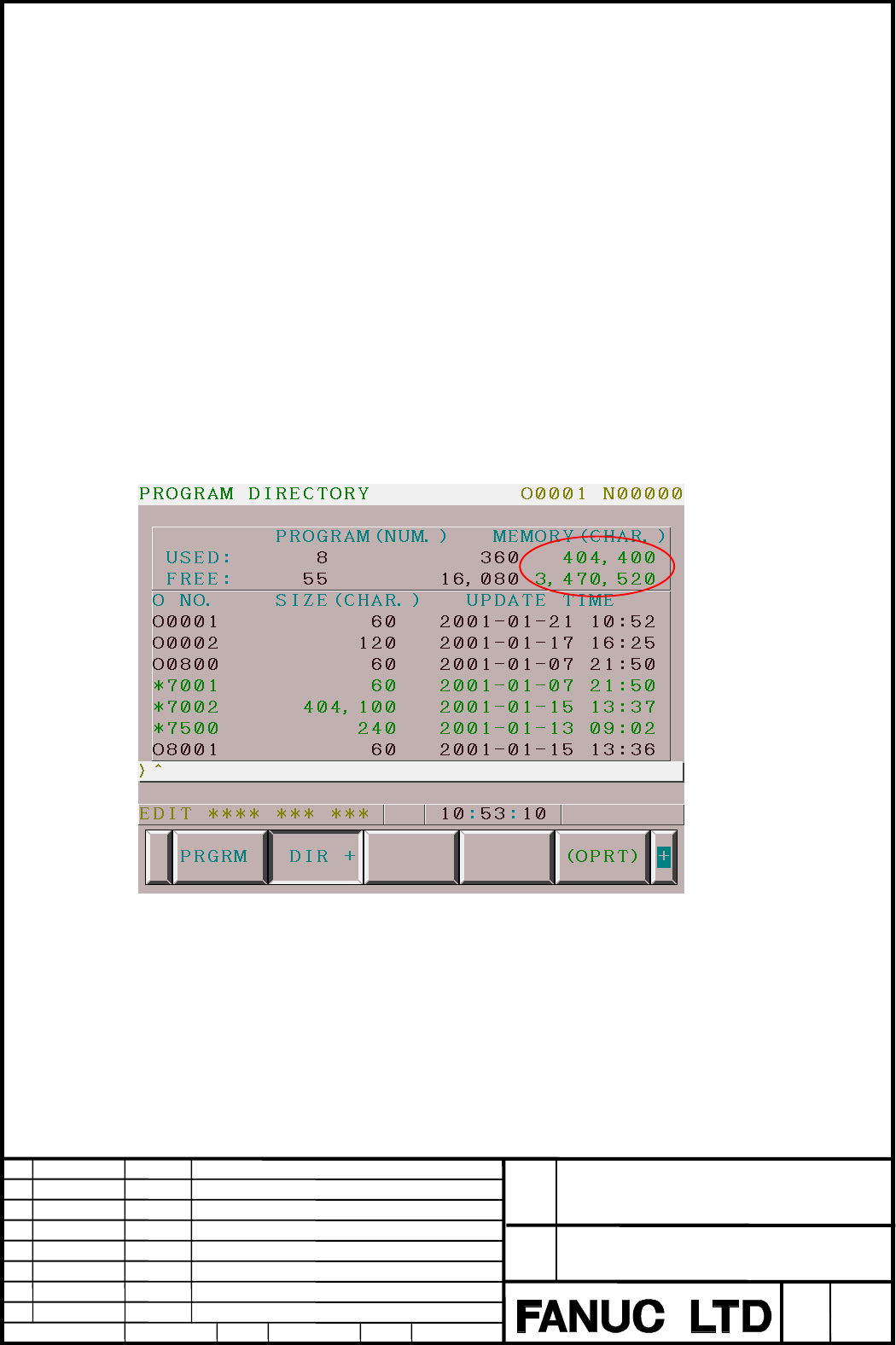

The free memory size and the used memory size are displayed on right side of
program directory screen.
2.2 Range of part program on temporary storage memory
The range of programs number on the temporary storage memory is specified by
CNC parameters No.12011 ,12012. It is not possible to use the both the part
program storage memory and the temporary part program storage memory by
one program.
