FANUC Series16i/18i/21i–MB/TB
Automatic operation and temporary
storage of external program
ith M l M
A-79189EN
03.Sep.’03
The parameters No.12011 and 12012 can not be changed if any program exists on
CNC.
Example)
No.12011 = 7,000
No.12012 = 7,999
Part program on the temporary storage memory : O7000 - O7999
Part program on the part program storage memory : O0001 - O6999
O8000 - O9999

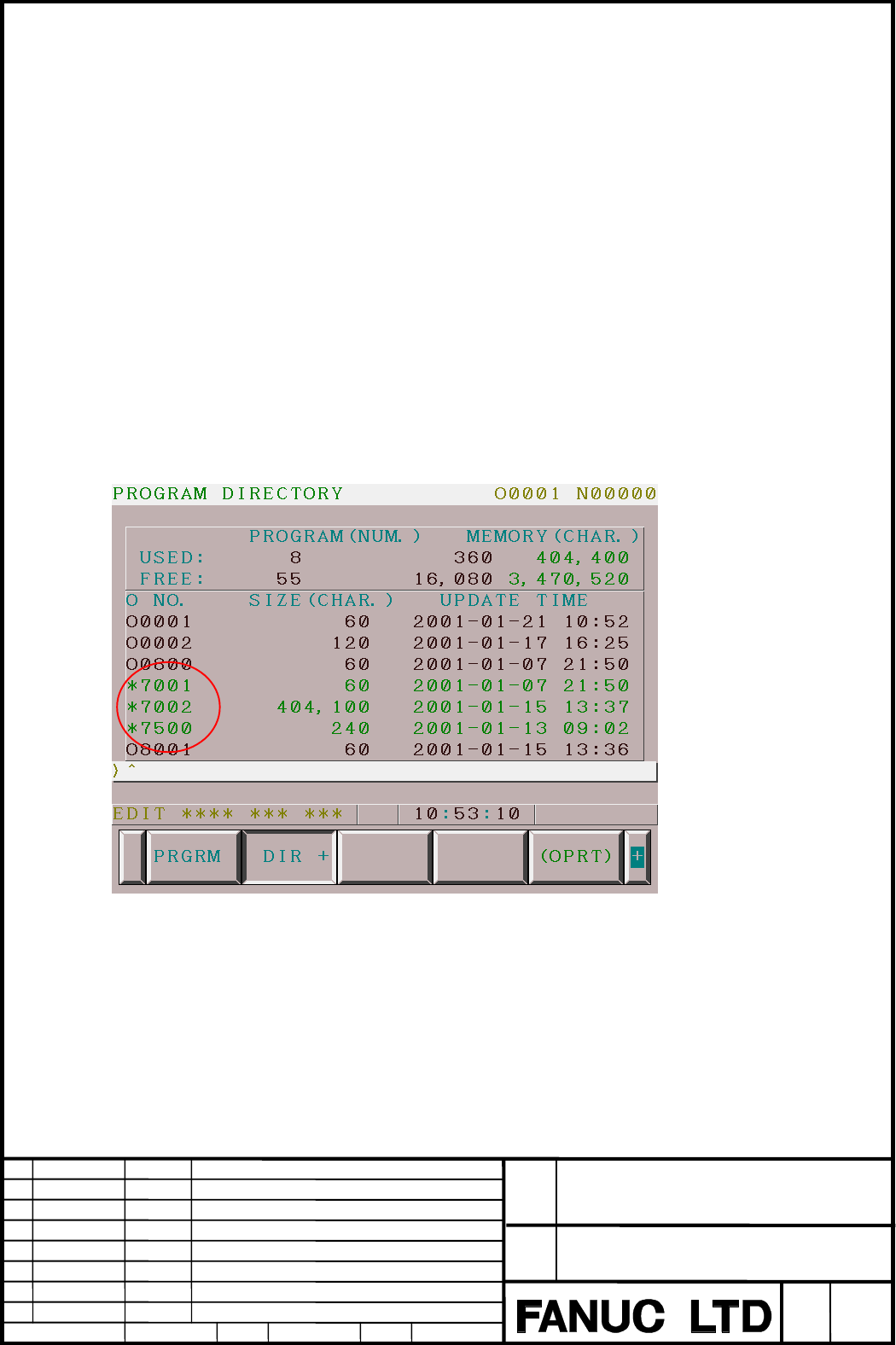

2.3 Display of program directory screen
The “O” number of part program on the temporary storage memory is displayed
as
“*”character.
2.4 Number of registered part program on the temporary storage memory
Number of registerable part program on the temporary storage memory is the
number which pulls the number of registered part program on the part program
storage memory from the number of all registerable programs.
Example)
