FANUC MODBUS/TCP Additional Manual Page 24

Additional Manual
A-90188E-01 SETTING 1.MODBUS/TCP SERVER FUNCTION
- 22 -
Item Description Parameter No
AREA1-3
Specify the I/O size to exchange I/O data with
MODBUS/TCP clients.
A unit is 16-bit word.
A range is the following.
For a PMC address %M or %ME:
The available range is from 0 to 4000.
Example) "0", "1", "2", - - - "4000"
For a PMC address %R:
The available range is from 0 to 5000.
DATA SIZE
(WORD)
Example) "1", "2", "3", - - - "5000"
AREA1:Pa33
AREA2:Pa43
AREA3:Pa53

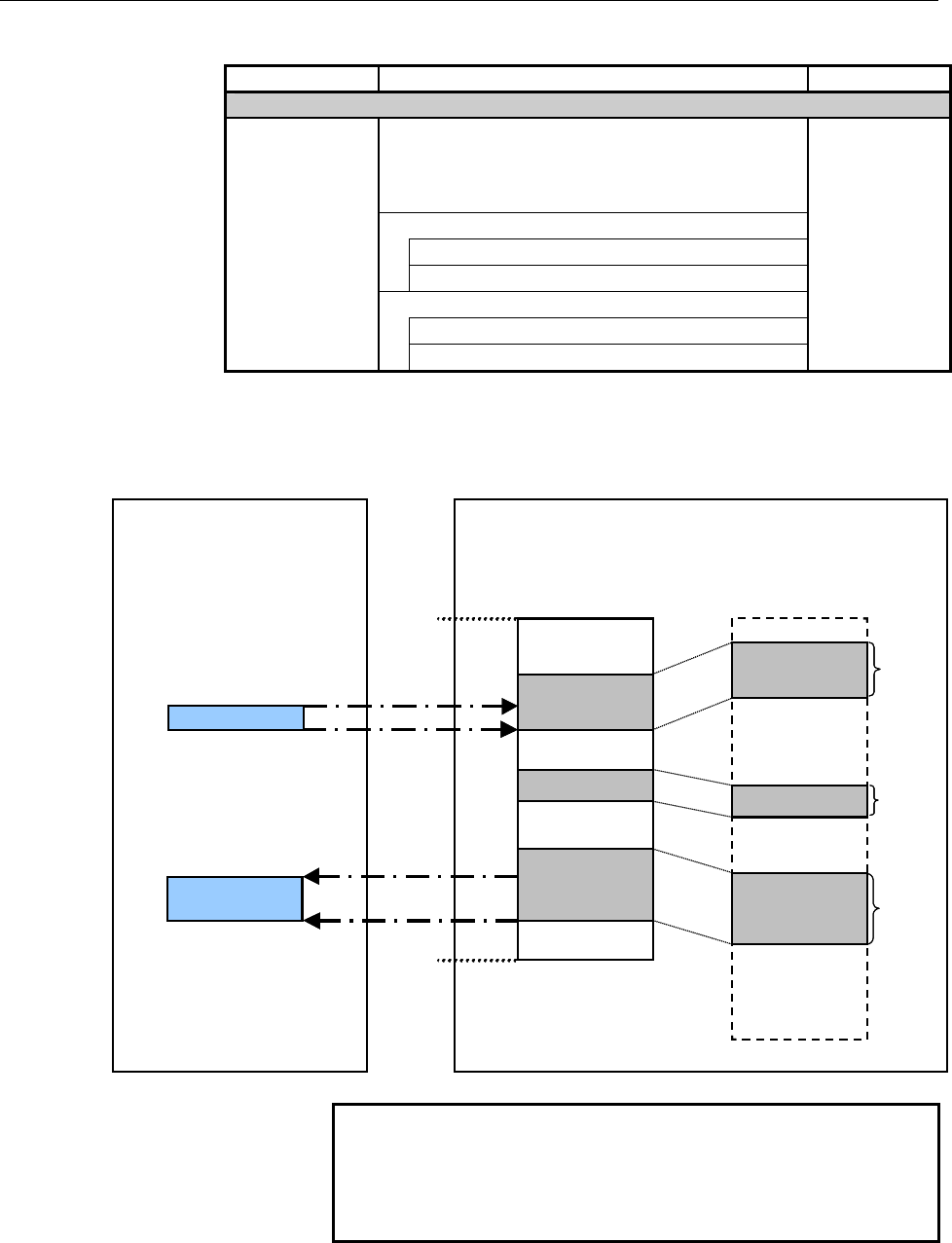

Relation between MODBUS area and PMC area
NOTE
If “DATA MODBUS ADDRESS”(Pa32, Pa42, Pa52)
of each AREA overlaps, the READ data on the
client is equal to the value in AREAn of "ENABLE",
where n is maximum number.
Pa32→
Pa42→
Pa52→
←Pa31
15 0
←Pa41
←Pa51
←Pa33
←Pa43
←Pa53
MODBUS Area
(Hold ing Reg is ters )
PMC Area
15 0
AREA1
AREA2
AREA3
MODBUS/TCP ServerMODBUS/TCP Client
00000→
65535→
Read Registers
Write Registers
Pa32→
Pa42→
Pa52→
←Pa31
15 015 0
←Pa41
←Pa51
←Pa33
←Pa43
←Pa53
MODBUS Area
(Hold ing Reg is ters )
PMC Area
15 0
AREA1
AREA2
AREA3
MODBUS/TCP ServerMODBUS/TCP Client
00000→00000→
65535→65535→
Read Registers
Write Registers
