A-90188E-01 SETTING 1.MODBUS/TCP SERVER FUNCTION
- 25 -
1.2 MAINTENANCE SCREEN OF MODBUS/TCP SERVER
FUNCTION
The maintenance screens of MODBUS/TCP Server function has
COMMUNICATION STATE screen, CONNECTION
INFORMATION screen and MODBUS LOG screen.
In COMMUNICATION STATE screen, communication status
detected by the MODBUS/TCP board’s hardware is displayed.
In CONNECTION INFORMATION screen, the IP addresses of the
MODBUS/TCP clients under communicating are displayed.
In MODBUS LOG screen, information detected by the
MODBUS/TCP board’s software is displayed.
Precedure
1 Press function key .
2 Soft key[PMC] appears. (When soft key [PMC] does not appear,
press the continue key located at the right end of soft keys
several times.)
3 If you press soft key [PMC], PMC MAIN MENU screen appears.
4 Pres soft key [PMCDGN] and [I/OCHK] and then [MODBUS],
the following SCREEN1-4 appears.

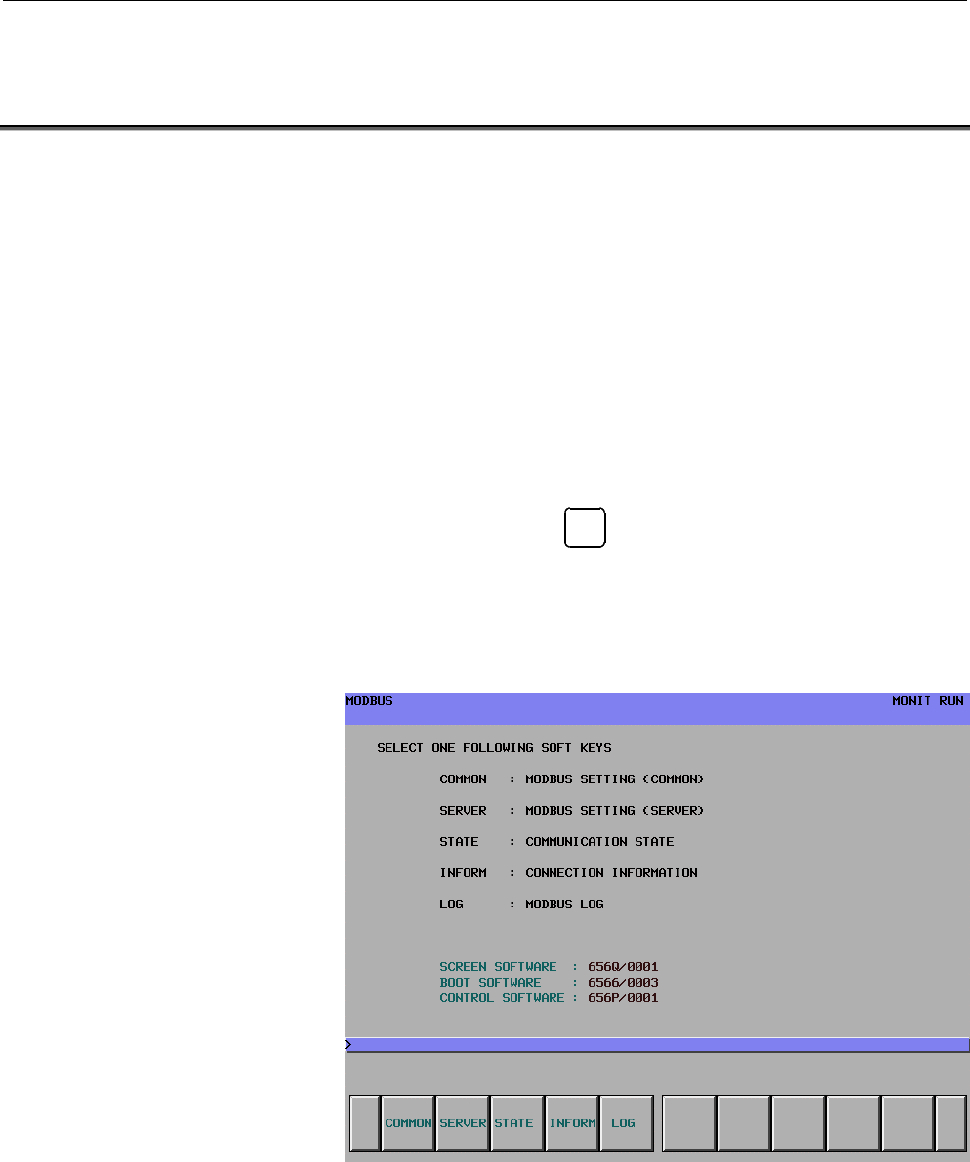

SCREEN 1 - 4
SYSTEM
