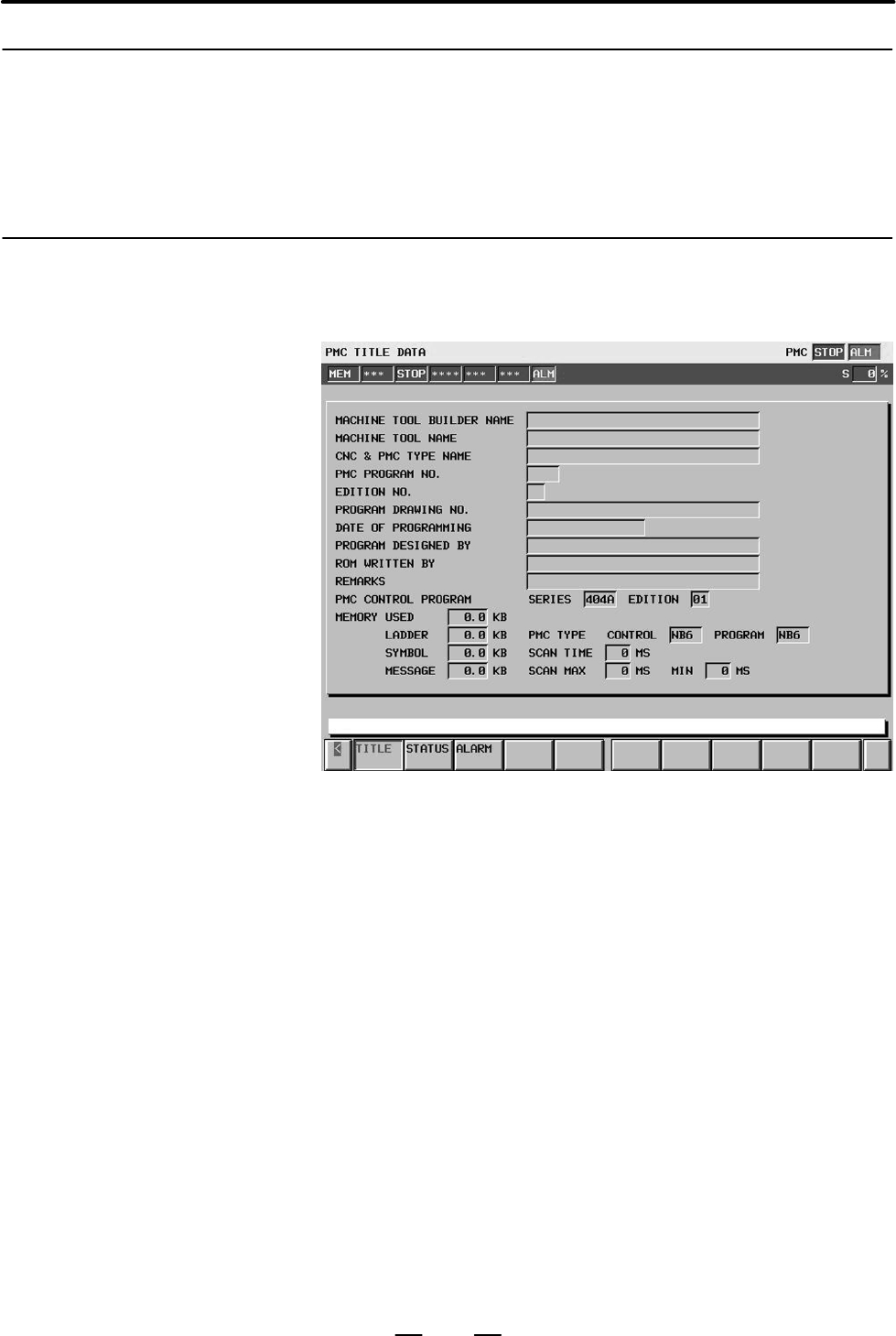

The title data corresponds to the title of each sequence program. It
consists of the following ten items:
D Machine tool builder name (32 characters)
D Machine tool name (32 characters)
D NC and PMC type (32 characters)
D Sequence program number (4 characters)
D Edition number (2 characters)
D Sequence program drawing (32 characters)
D Date of sequence program creation (16 characters)
D Sequence program creator (32 characters)
D ROM data writing operator (32 characters)
D Comment (32 characters)
The following data is displayed:
D PMC basic software series and edition
D The amount of memory used by the sequence data and time required
to execute the ladder program
D PMC basic software type and sequence program PMC type
D Current, maximum, and minimum execution time for the ladder
program
4.3.3
PMC Input/Output
Signal and
Internal–relay Displays
(PMCDGN)
4.3.3.1
Title data display (TITLE)
