Manual Guide (for Milling) Operators manual Page 132

Operators manual
1. HOLE MACHINING TYPES OF CYCLE MOTIONS B-63424EN/03
-120-
ABS / INC
: Specify travel ways from the following soft-keys.
[G90ABS (absolute)], [G91INC (incremental) ],
[NO-OUT]
RETURN
POINT
: Specify return point level from the following
soft-keys.
[I-LVL (G98)], [R-LVL (G99)], [NO-OUT]
HOLE POINT
X, Y
: Hole position data. It is used in the case of no
using Hole Pattern menu.
TRAVEL
SPEED
: Forward or backward traveling speed
( only for small-hole peck cycle)
DWELL TIME
: Dwell time at the bottom of the hole
( only for small-hole peck cycle)
REPEAT
NUMBER
: Number of repeat. It is used in the case of no using
Hole Pattern menu.
MOVEMENTS :
“Q” represents the depth of cut for each cutting feed. It must
always be specified as an incremental value.
In the second and subsequent cutting feeds, rapid traverse is
performed up to a “d” point just before where the last drilling
ended, and cutting feed is performed again. “d” is set in parameter
(No.5115).
Ra
p
id traverse
Feed traverse
Dwell
P
•
••

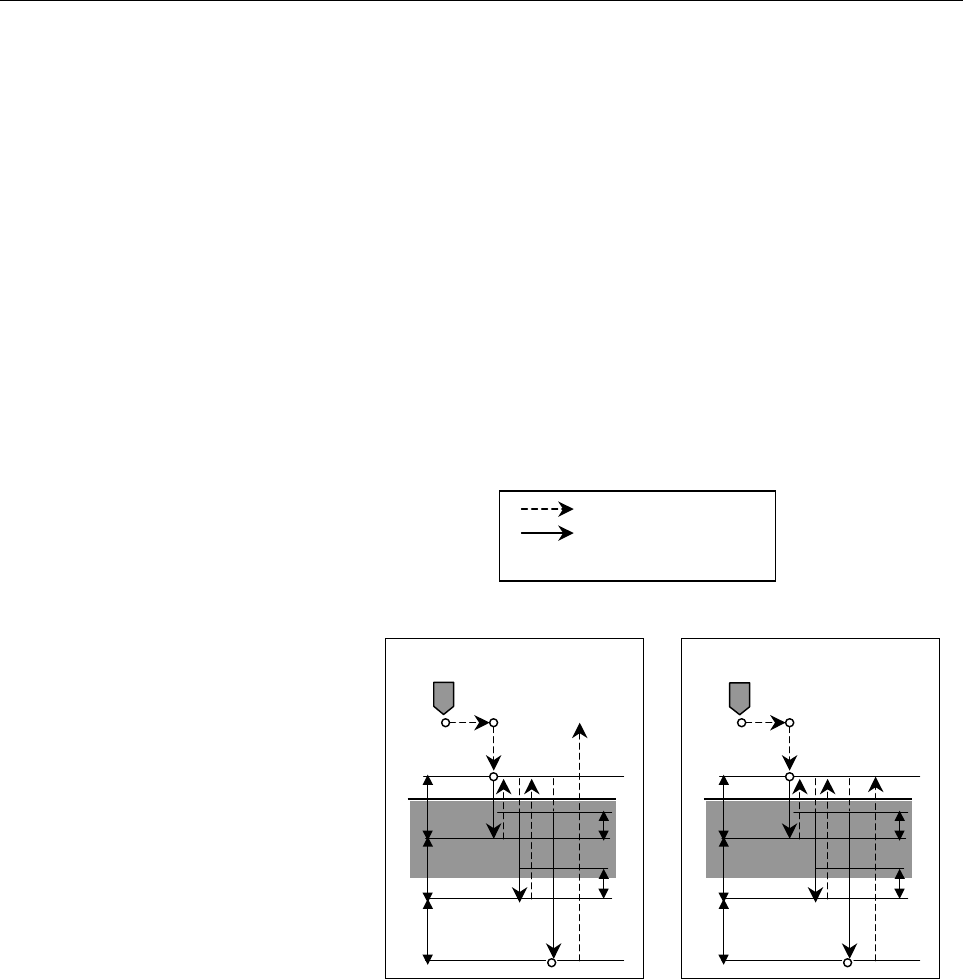

• Peck Drilling Cycle
G83 (G98) G83 (G99)
Point R
Q
Q
Q
Q
Q
Q
d
d
d
d
Point R
Point Z Point Z
Initial level
Point R level
