B-63424EN/03 APPENDIX A. PARAMETERS
-305-

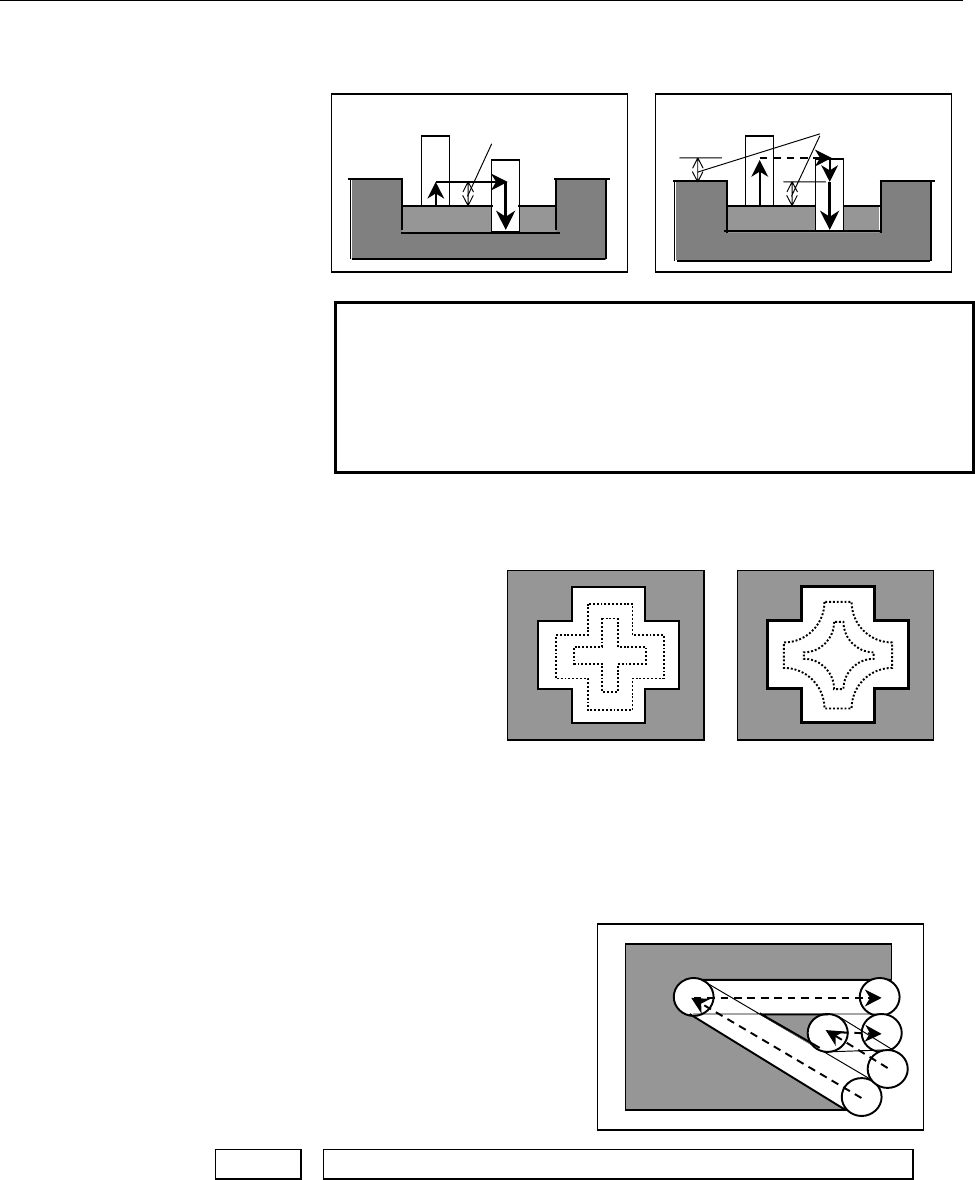

ESC 1 : Retract the tool to the point ( surface + clearance ).
0 : Retract the tool to the point ( cutting plane + clearance ).
NOTE
In ESC = 1, the tool may interfere with the work-
piece. if the tool is not lifted to a safe position
depending on the clearance for in-feed.
Therefore, be particularly careful to avoid
interference between the tool and work-piece.
CNR 1 : Cut corners using circular interpolation.
0 : Cut corners using linear interpolation.
CHK 1 : There is a check cut leaving. If there is a portion left uncut at a
corner in pocketing, it is identified automatically and cut off. This
function may decrease the processing speed for tool path
preparation.
0 : There is no check cut leaving.
9125 CONSID
CONSID G-code number of Contour Side Cutting for automatic changing soft-
keys
Valid data range 0 to 999
Units 1
FANUC standard settings 224
CNR = 1
CNR = 0
ESC = 1
clearance
ESC = 0
clearance
