3. PROGRAMMING OPERATIONS

OPERATION B-63424EN/03

-58-

iii) A and either X or Y are inputted

-> The tangential point selection request window is

displayed. Input number data 1 or 2, then push INSERT

The end point of this line will be determined.

If the positional relationship between the tangential

point and the line is such that an inputted A conflicts

with the inputted X or Y, a warning message is

displayed to indicate that invalid data has been

inputted.

iv) A and both X and Y are inputted

-> The end point of the arc and line will be determined.

The tangential point selection request window is not

displayed.

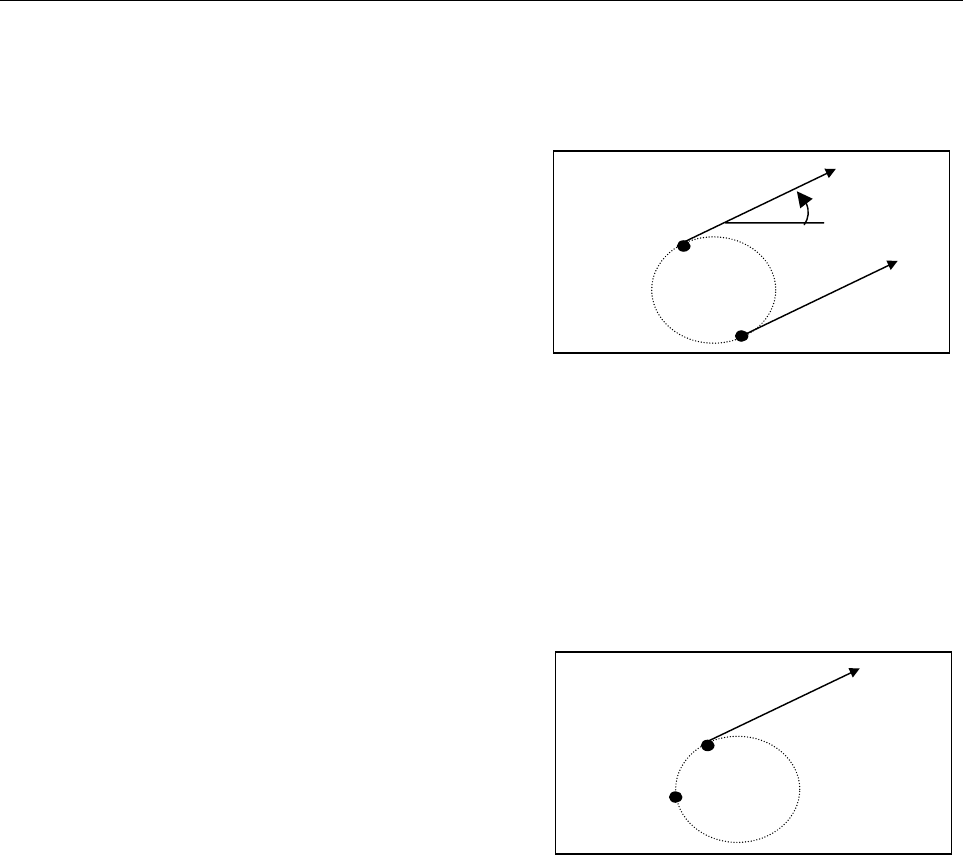

Start point

Tangential point

(X, Y)

Tangential point

X or Y
