Manual Guide (for Milling) Operators manual Page 316

Operators manual

Page of 332

/ 332

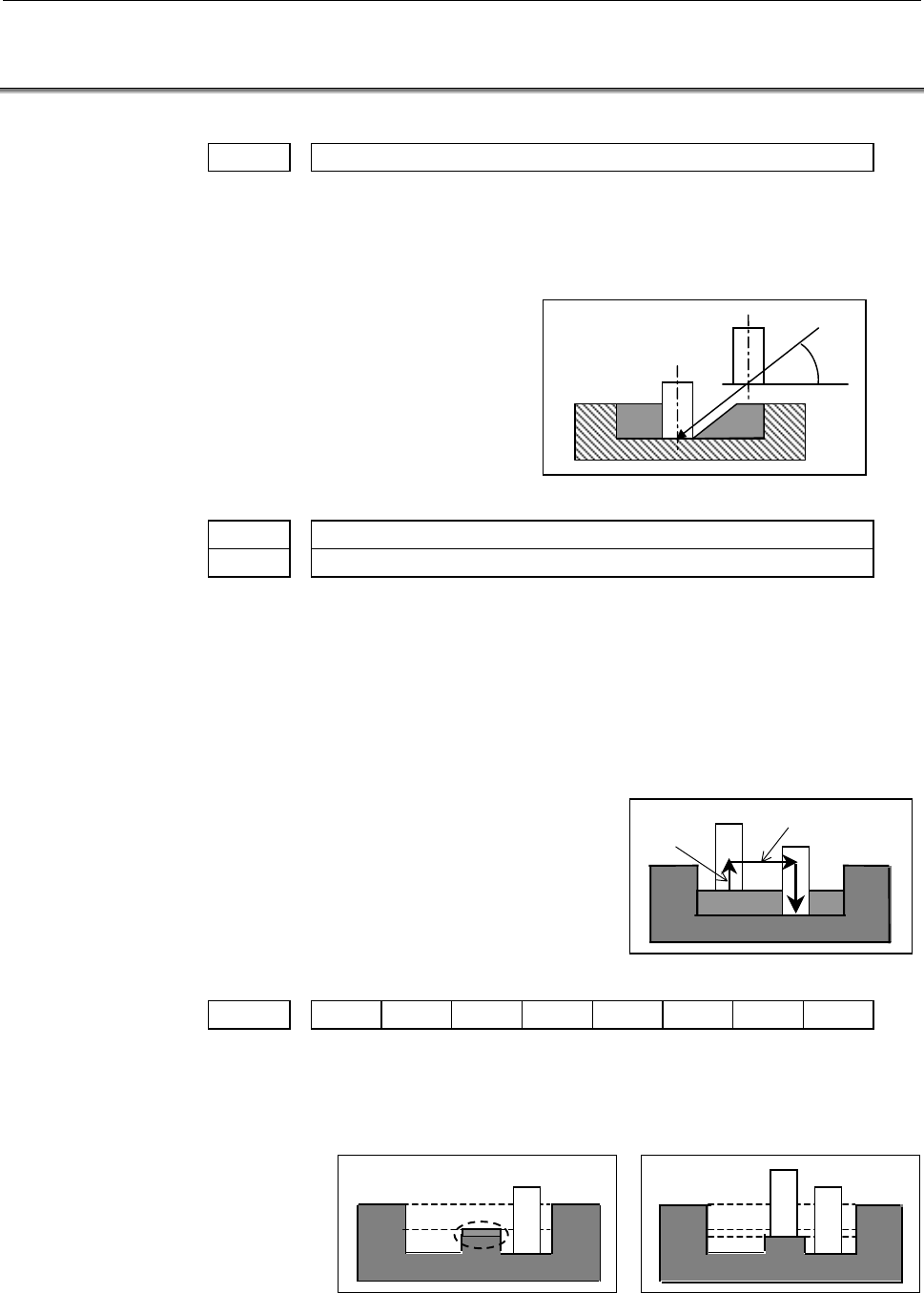

A. PARAMETERS APPENDIX B-63424EN/03

-304-

A.4 PARAMETERS FOR CYCLE MACHINING

9120 TOLANG (A)

TOLANG Default data of cutting angle for tool-axis in-feed of Pocketing.

Valid data range 0 to 90 ( In the case of 0, it is regards 90. )

Units 1 degree

FANUC standard settings 0

9121 FEEDRM (Frm)

9122 FEEDTM (Ftm)

FEEDRM Feedrate used for in-feed tool movement vertical to the tool axis. If 0

input, movement is rapid traverse. ( In the case of ESC = 1 only )

FFEDTM Feedrate used for tool movement along the tool axis. If 0 input,

movement is rapid traverse.

Valid data range 0 to 65535

Units 1mm/min

FANUC standard settings 0

9123 CHK CNR ESC ILA

FANUC standard settings 00000000

ILA 1 : The top of a island is not cut.

0 : The top of a island is cut by controlling the cut depth

Ftm

Frm

ILA = 1

ILA= 0
