5. POCKETING TYPES OF CYCLE MOTIONS B-63424EN/03
-198-

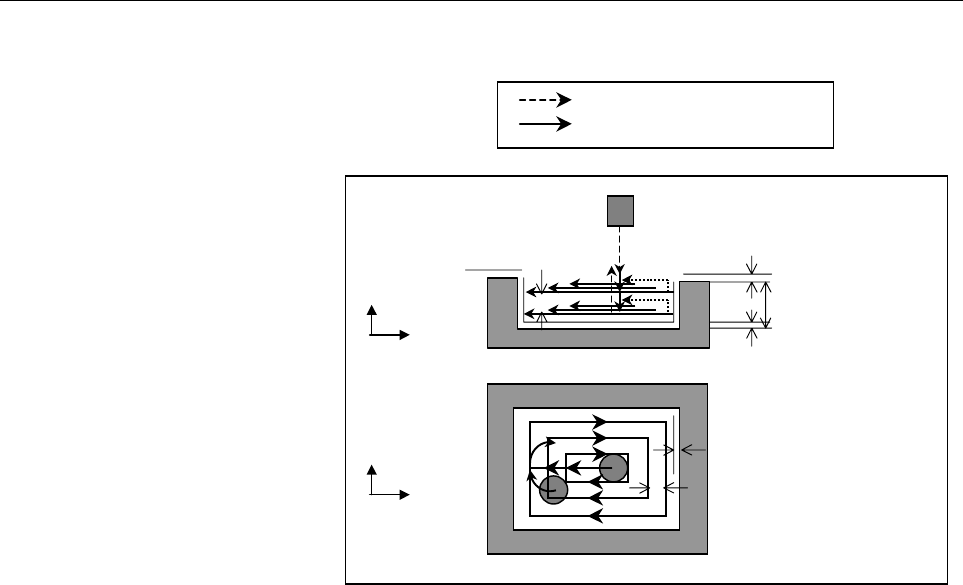

MOVEMENTS
:
a) In the case of rough cutting
1. Rapid traverse up to the starting point.
2. Rapid traverse along the Z axis up to point R (END POINT Z
+ REMOVAL DEPTH + CLEARANCE)
3. Descent along the lower Z axis in cutting feed (Z-CUT
FEED RATE) by the pitch (REMOVAL PITCH).
4. Cutting from the inside to the outside using the same cutting
width (CUTTING WIDTH) in cutting feed (FEED RATE).
5. After cutting, side finish allowance (SIDE FINISH) remains.
6. Rapid traverse along Z axis up to point R
7. Rapid traverse back to the starting point (A).
8. Rapid traverse down to the cutting surface + clearance
(CLEARANCE) along Z axis.
9. Advance in –Z axis by the pitch (REMOVAL PITCH) and
repeat steps 3. to 8. up to the point of the distance (SIDE
FINISH).
10. Rapid traverse along Z axis up to point R.
b) In the case of bottom finish cutting
1. Rapid traverse up to the starting point.
2. Rapid traverse along the Z axis up to point R (END POINT Z
+ REMOVAL DEPTH + CLEARANCE)
3. Descent along the lower Z axis in cutting feed (Z-CUT
FEED RATE) up to the end point (END POINT Z).
4. Cutting from the inside to the outside using the same cutting
width (CUTTING WIDTH) in cutting feed (FEED RATE).
5. After cutting, side finish allowance (SIDE FINISH) remains.
6. Rapid traverse along Z axis up to point R
c) In the case of side finish cutting
1. Rapid traverse up to the starting point.
Feed Traverse
(
G01
)
Ra
p
id Traverse
(
G00
)
Clearance
Removal Depth
Bottom Finish
Cutting Width
Removal Pitch
Side Finish
Point R
X
X
Z
Y
