Manual Guide (for Milling) Operators manual Page 17

Operators manual

Page of 332

/ 332

B-63424EN/03 GENERAL 2. GUIDANCE HANDWHEEL

-5-

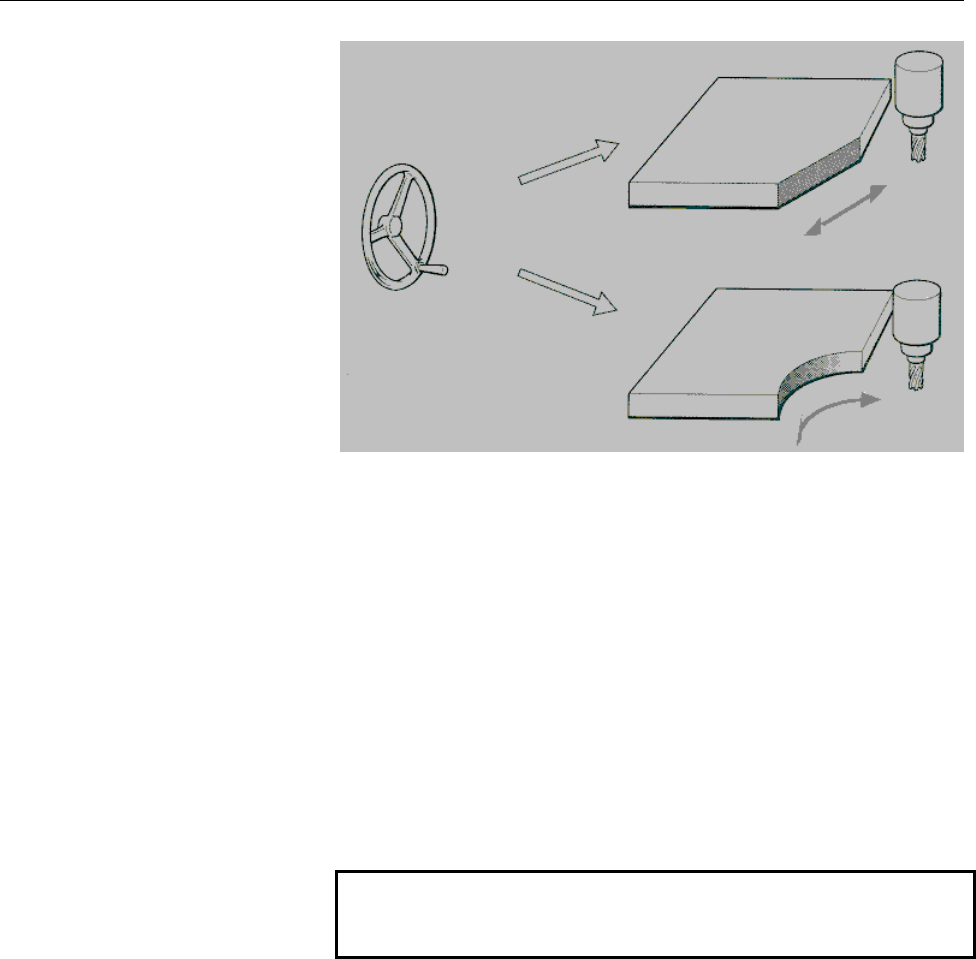

Rotating the Guidance Handwheel for Machining

After cutting a work-piece by using the above guidance cutting, this

cutting motion can be taught into a machining program as an one block

motion command, and these taught-in motion command can be used for

playback machining.

Synchronous Feed and Guidance Handwheel

During running a machining program under automatic executing mode,

an operator can control a tool motion by using guidance handwheel.

By selecting a synchronous feed mode on guidance handwheel, an

operator can make a tool moved by the feedrate which is synchronized

with handwheel rotating instead of inputted feedrate in the machining

program.

NOTE

This Guidance Cutting is the optional function of

MANUAL GUIDE.
