TITLE
Modification of FANUC FL-net Board
OPERATOR’S MANUAL
Addition of the explanation about [ERRMSG] to Page 69
(2) Press soft keys [PMCDGN], [I/OCHK], and [FL-NET] in this order. Then, screen 1-1
shown below appears.

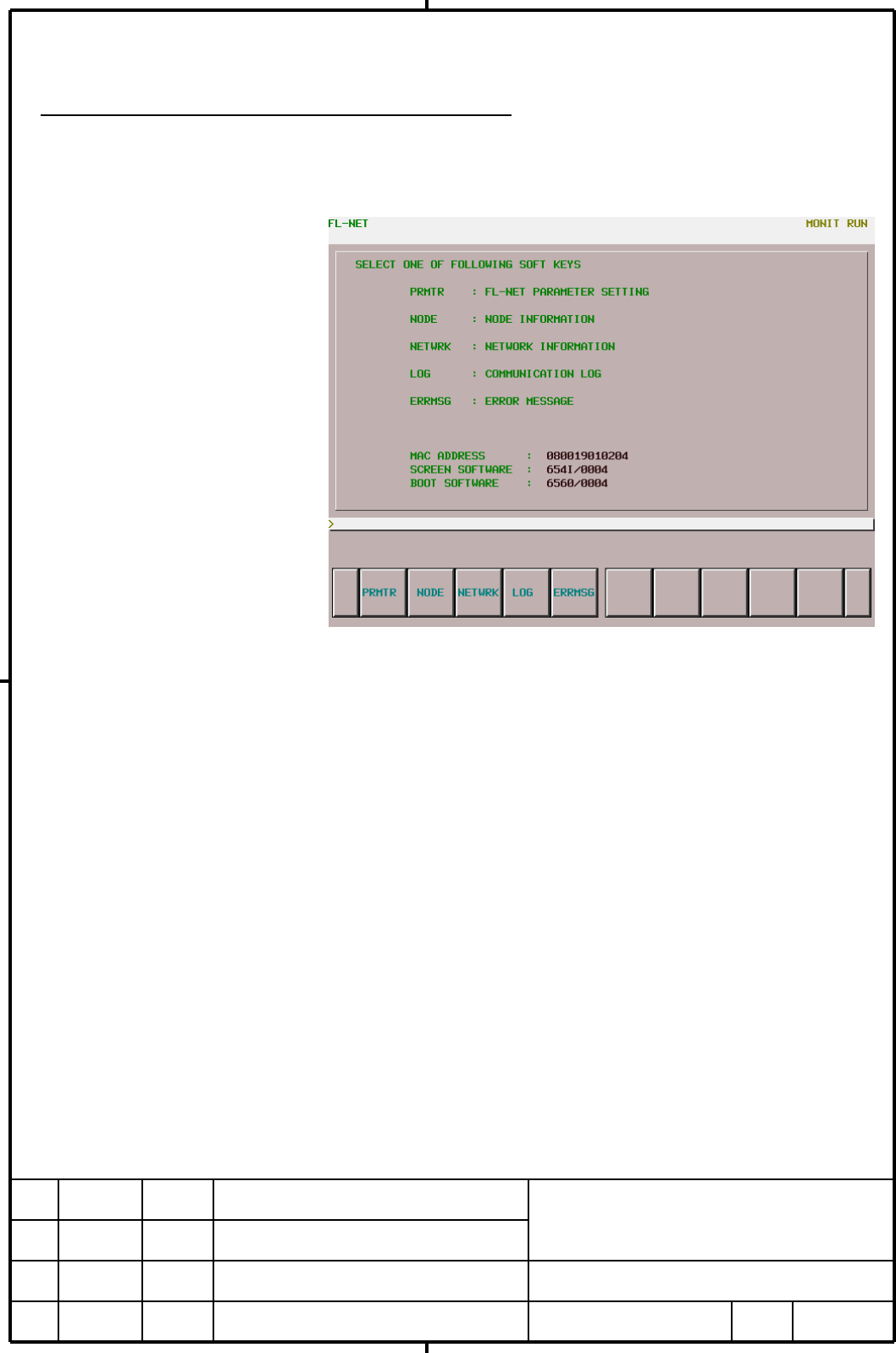

Screen 1-1 FL-net Main Menu Screen (for the 10.4” LED)
This screen also displays the MAC address (Ethernet address) of the FL-net board.
When a soft key on this screen is pressed, the corresponding screen is displayed as
follows:
1) [PRMTR] : Parameter setting screen for using the FL-net function
2) [NODE] : Monitor screen of Participating Node Management Table
3) [NETWRK] : Monitor screen of the FL-net network parameters
4) [LOG] : Monitor screen of the log of the local node
5) [ERRMSG] : Error message screen for FL-net
SHEET
9/17
DESCRIPTIONDESIGN DATE EDIT
01 Mutai First issue
B-63434EN/02-1
FANUC LTD.
02.05.20
DRAW.NO.
