FANUC FL-net Board
OPERATOR’S MANUAL
B-63434EN/02-3
4.2 Example of Setting
4.2.1 Example of Configuration
Using the example of configuration shown below, this section describes
the setting of each parameter.

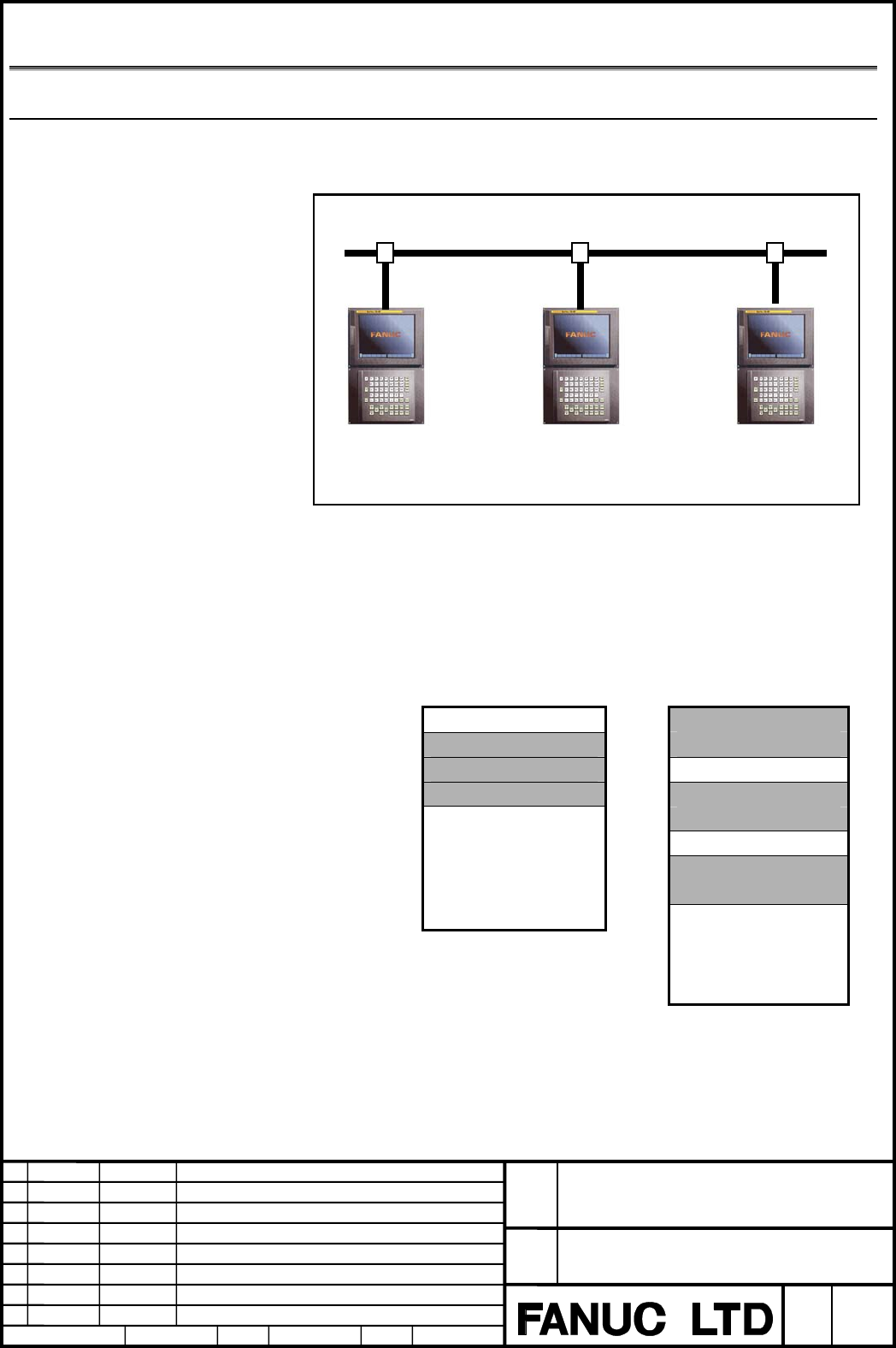

Fig. 4-1 Example of FL-net Configuration
The parameter settings and PMC area allocation state when 4-word DO
data in common memory area 1 and 64-word DO data in common
memory area 2 are exchanged at all of the three nodes are described
below.
The common memory of each node is allocated as shown below.
Common memory area 1 Common memory area 2
0x0000
0x0000
Node No.10
0x0010
Node No.10
0x0014
Node No.20
0x0040
0x0018
Node No.30
0x0050
Node No.20
0x001c
0x0090
0x00a0
Node No.30
0x00d0
0x01ff
0x1fff
FL-net
Series 18i -B Series 18i -B Series 18i -B
Node No.10 Node No.20 Node No.30
