2.CYCLIC TRANSMISSION DESCRIPTION B-63434EN/02
- 24 -
2.2.2.4 Timing of switching between conditions on data exchange
with common memory area 2
In data exchange between common memory area 2 and the PMC area,
the user can switch between data (nodes information) exchange
conditions.

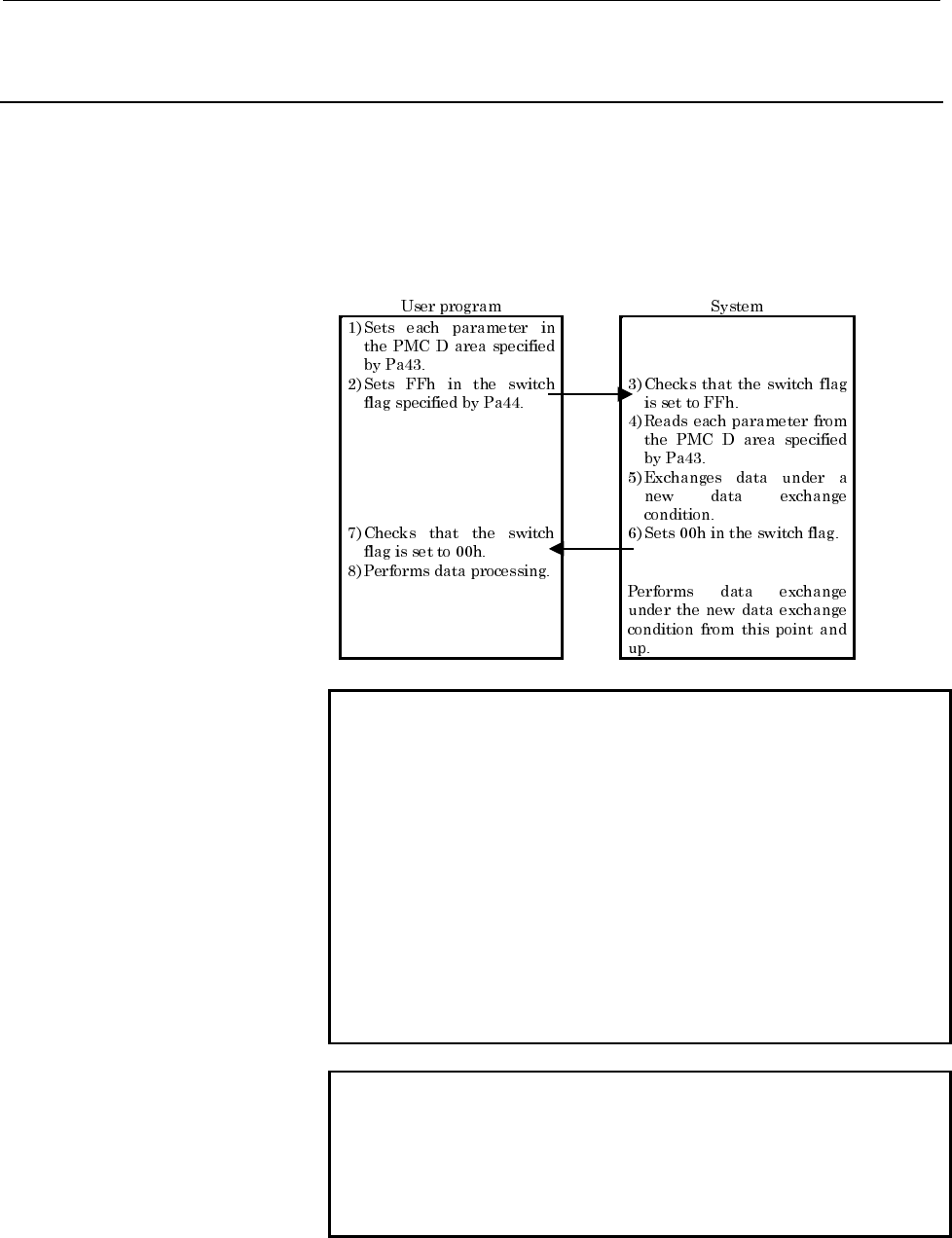

The timing of data switching specified by the user program is
described below.
CAUTION
1 If the setting of a parameter in the PMC D area
specified by Pa43 (area 2 data exchange condition
allocation address) is incorrect (for example, if a
specified DI offset exceeds the common memory
area of a specified node number), data exchange is
not performed.
So, be careful when making a data exchange
condition modification.
2 Do not access the DI data of common memory area
2 until the switch flag is set to 00h after the switch
flag is set to FFh by the user program. Otherwise,
invalid data may be read.
NOTE
Immediately after the power is turned on, data
exchange is performed according to each parameter
set in the PMC D area specified by Pa43 (area 2
data exchange condition allocation address) even if
no instruction is provided by the user program.
