FL-net Board Operators manual Page 96

Operators manual
B-63434EN/02 OPERATION 2.MAINTENANCE SCREEN
- 89 -
2.3 Log Information Management Table
The FL-net log information management table screen allows the user
to reference the network log information of the local node.
Procedure
(1) Press function key
SYSTEM
, then press soft key [PMC] to
switch to the PMC screen.
(2) Press soft keys [PMCDGN], [I/OCHK], and [FL-NET] in this
order. Then, screen 1-1 appears.
(3) On screen 1-1, press soft key [LOG]. Then, screen 2-4 shown
below appears.

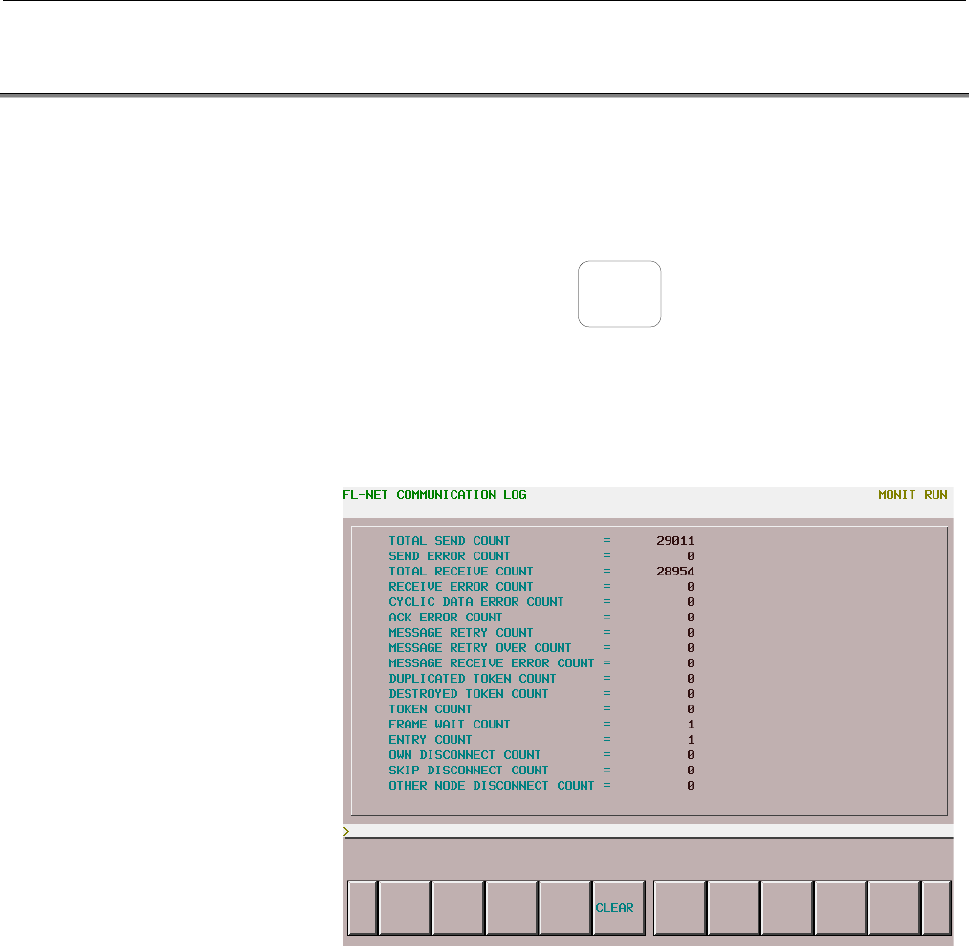

Screen 2-4 FL-net Log Information Management Table Screen
(10.4" LCD)
(4) Pressing soft key [CLEAR] clears log information.
