Series 16i/18i/160i/180i - TB Operators manual Page 106

Operators manual

Page of 933

/ 933

PROGRAMMING4. INTERPOLATION FUNCTIONS

B–63524EN/01

G31 W100.0 F100;

U50.0;

50.0

100.0

Skip signal is input here

Actual motion

Motion without skip signal

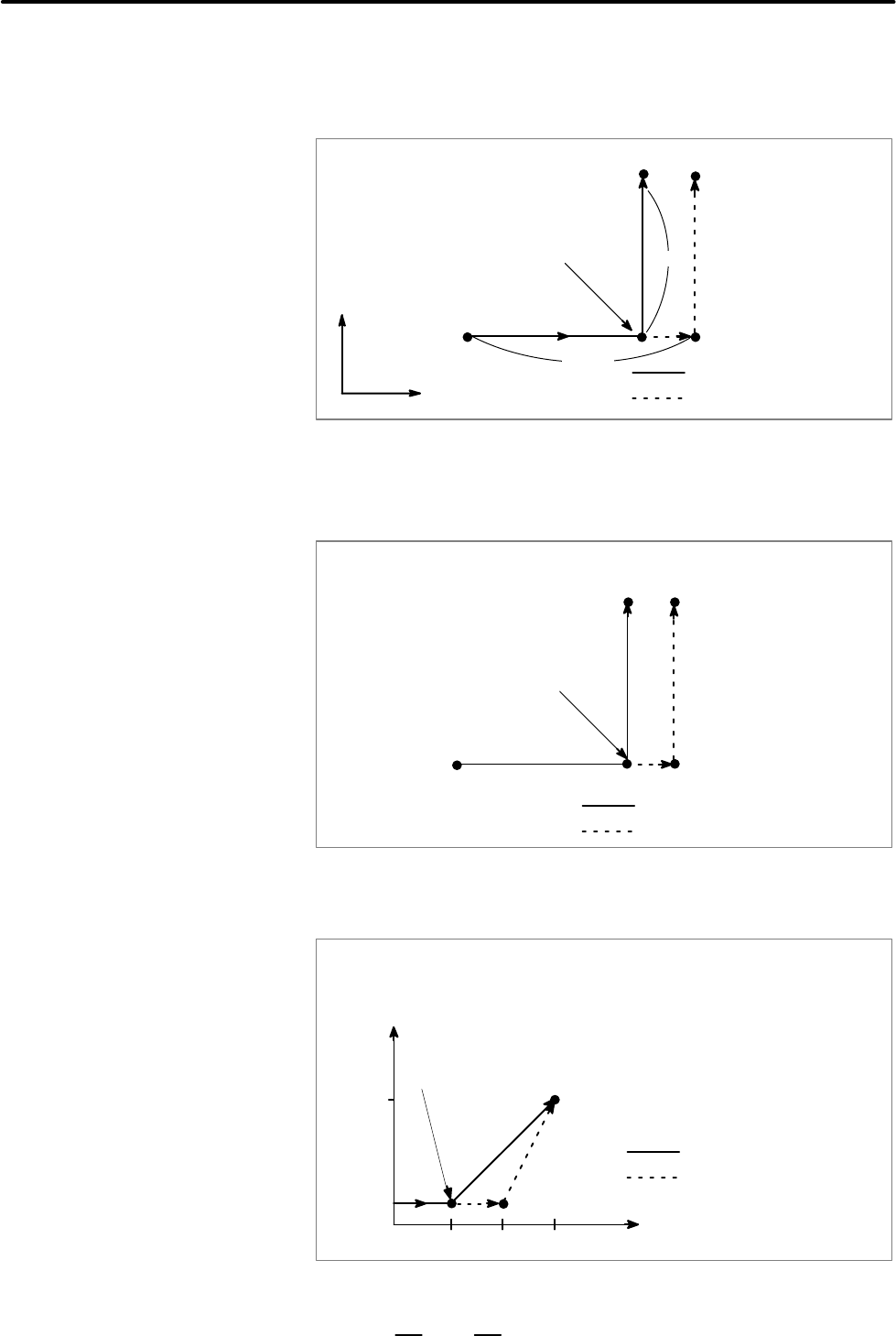

Fig.4.14 (a) The next block is an incremental command

G31 Z200.00 F100;

X100.0;

X100.0

Z200.0

Skip signal is input here

Actual motion

Motion without skip signal

Fig.4.14 (b) The next block is an absolute command for 1 axis

(100,300)

100 200 300

100

G31 G90X200.0 F100;

X300.0 Z100.0;

Actual motion

Motion without skip signal

Skip signal is input here

Fig 4.14 (c) The next block is an absolute command for 2 axes

Examples

D The next block to G31 is an

incremental command

D The next block to G31 is an

absolute command for 1

axis

D The next block to G31 is an

absolute command for 2

axes
