Series 16i/18i/160i/180i - TB Operators manual Page 76

Operators manual
PROGRAMMING4. INTERPOLATION FUNCTIONS
B–63524EN/01
50

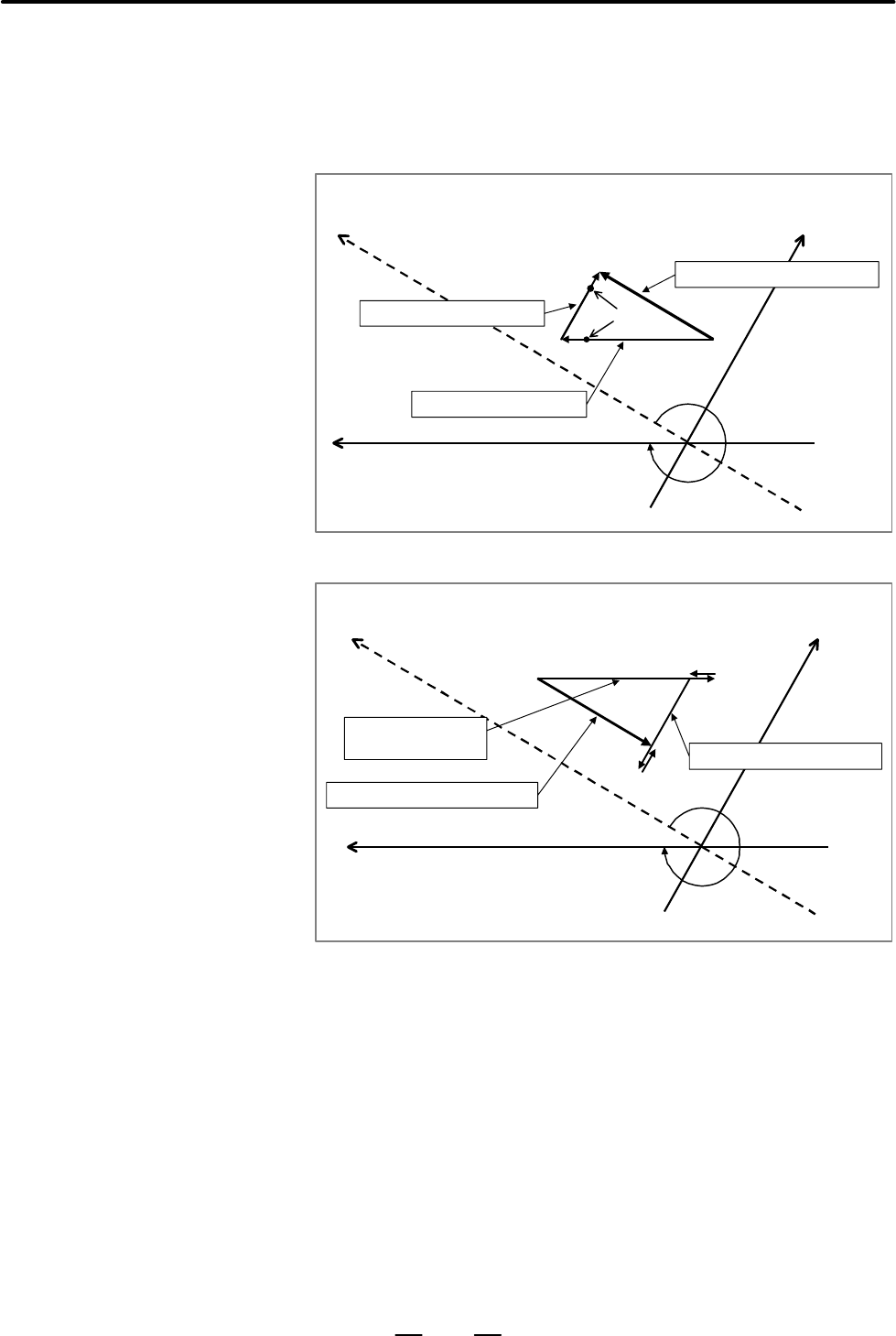

Please set the same direction between the angular axis (Y) and the
perpendicular axis (X) into the direction of the single direction
positioning. If the positioning direction of the perpendicular axis (X) is
plus, and the positioning direction of the angular axis (Y) is plus, the
motion of the each axes is as follows.
+Y (angular axis)
+X (perpendicular axis)
coordinate system actually used
program coordinate system
θ (inclination angle)
X–axis:correct to plus direction
Y–axis:mov to plus direction
motion command to plus direction
temporary stop
Motion command to plus direction
+Y (angluar axis)
+X (perpendicular axis)
coordinate system actually used
program coordinate system
Y–axis:move to minus
direction
motion command to minus direction
X–axis:correct to minus direction
θ (inclination angle)
Motion command to minus direction
D In case the tan value of
the inclination angle is
minus. (parameter
No.8201=91° to 179° or
271° to 359°
