Beta i SVPM Descriptions Additional Manual Page 23

Additional Manual
5.TOTAL CONNECTION DIAGRAM A-72562EN-027
- 22 -

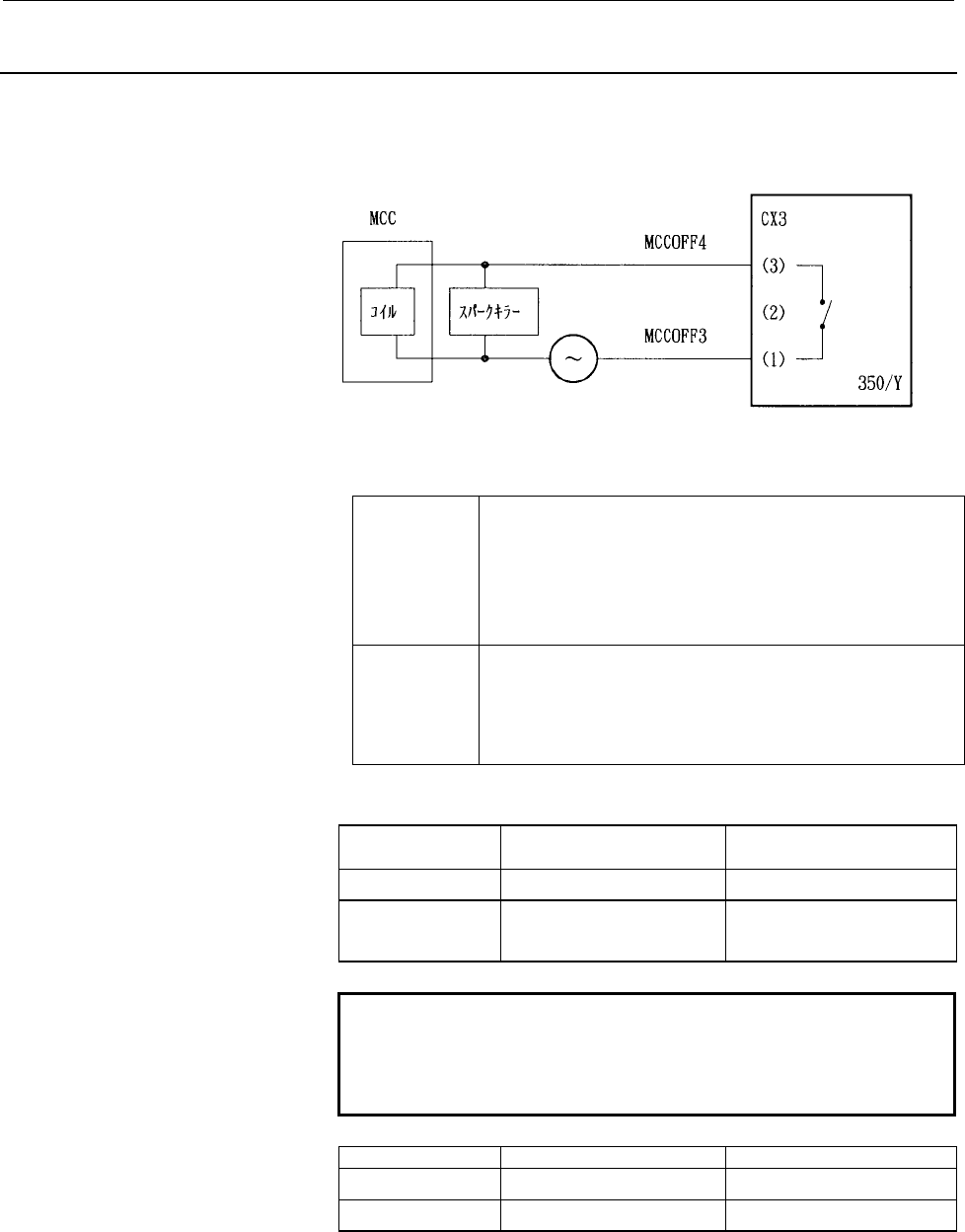

5.3.1.2 Details of cable K6
Cable K6 is used to control the magnetic contractor, which is installed outside the
unit.
killer
Internal
contact
External power supply
(must match the coil voltage of the
user's equipment)
SVPM
Connector tyco Electronics AMP
D-3200 series
Hausing 2-178128-3 (1 pcs.)
Contact 1-175218-2 (2 pcs.)
(Ordering numbef : A06B-6134-K201)
Cable Two-conductor polyvinyl heavy-duty power cable (JIS
C3312)
Conductor size 1.25 mm
2
(50/0.18)
PVC sheath 9.6 mm in diameter
Internal-contact specification:
Resistive load
(cos
φ=1)
Inductive load
(cosφ=0.4, L/R=7msec)
Rated load AC250V, 5A / DC30V, 5A AC250V, 2A / DC30V, 2A
Maximum contact
rating
5A 5A
NOTE
Always install a spark killer (CR) that matches the magnetic contactor
to protect the internal contacts. The following table lists the
recommended capacitance and resistances.
Coil voltage C R
DC24V 0.22µF 22 ohm
100 to 230VAC 0.1µF 220 ohm
