FANUC Series 30i-MODEL A
External Data Input
Data specification method in external message
Item E
A
6
E
A
5
E
A
4
E
A
3
E
A
2
E
A
1
E
A
0
ED15～ED0(binary)
Alarm set 1 0 0 0 0 0 0 Alarm No.
Alarm clear 1 0 0 0 0 0 1 Alarm No.
Operator message list 1 0 0 0 1 0 0 Message No.
Operator message
clear
1 0 0 0 1 0 1 Message No.
Message 1 0 0 0 X 1 1 Character(Note)
NOTE
Two characters are sent at a time

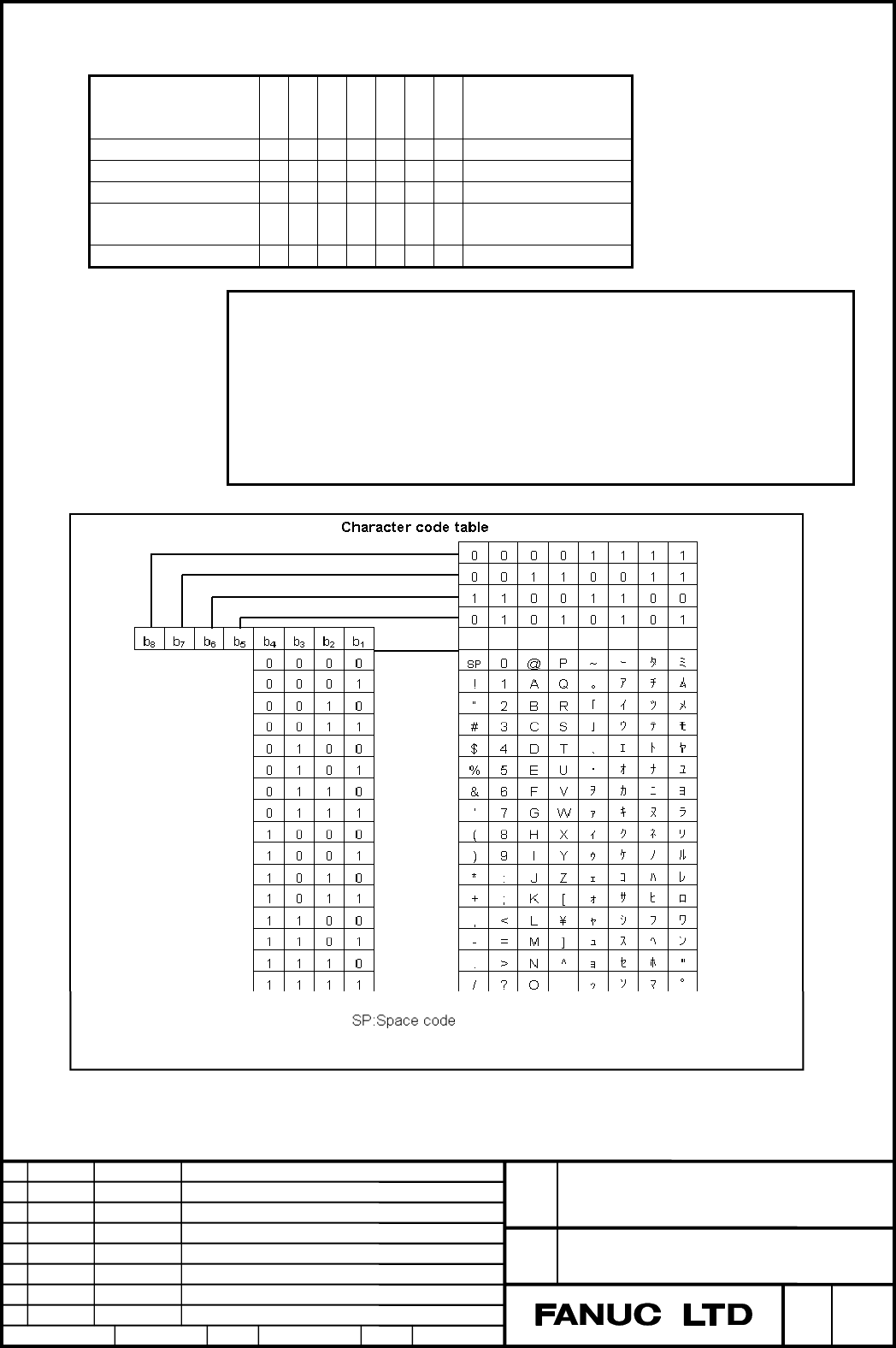

(See ISO code given in the table below.)
ED15 to ED8 . . . . . . . Character code in 1st character
ED7 to ED0 . . . . . . . . Character code in 2nd character
When sending only one character, fill the second slot with a
code smaller than 20 and it will be ignored.
