7.3. Example of sequence

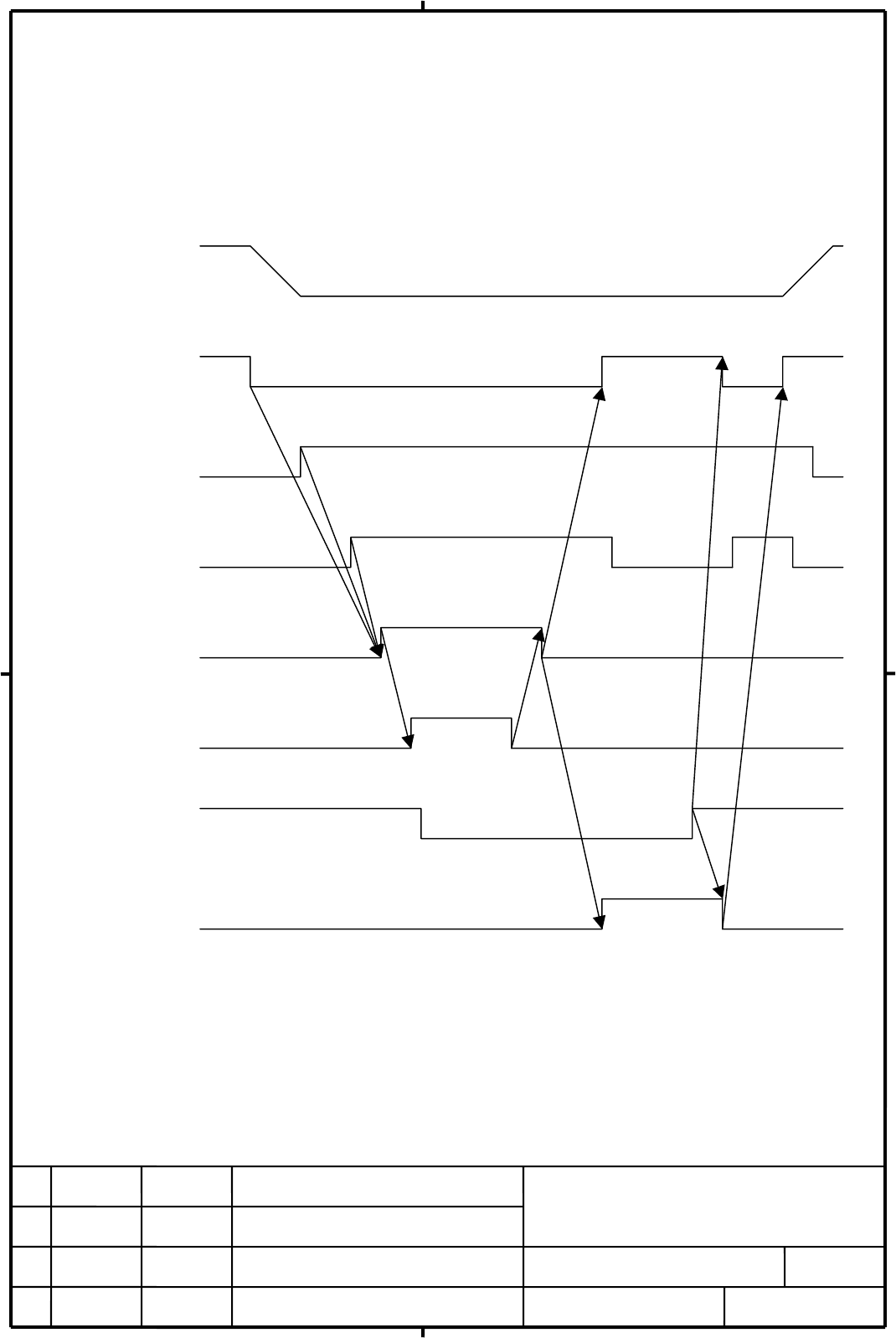

The following sequence shows that feedback cable is detached and connected again in case of
synchronous spindle motor. Please refer to “FANUC AC SPINDLE MOTOR αi series PARAMETER
MANUAL : B-65280EN” for detailed specification of each signal.
connected
detached
connected
Pole position
detecting
Forward rotation
command
SFRA
Motor speed
Disconnection
detection
disable signal
DSCNA
Connection
of feedback
Trigger signal
to start pole
detection
EPFSTRA
Motor excitation
off state signal
EXOFA
Zero speed
detection signal
SSTA
Pole detection
state signal
EPFIXA
