FS 16i/18i-TB Compound Machining Function Additional Manual Page 56

Additional Manual
A-78656E/01 FANUC Series 16i/18i-TB Compound Machining Function
55/127
Nov.14.2001 Edition 1
The angle (-90°/0°/90°) of B axis is notified to CNC by not the
coordinates value but R signal. And, the address of the R signal is
specified by the parameter. Please do not input the signal, except for
the above-mentioned angle. For that case, the offset conversion
processing is not done, and P/S alarm 5309 is generated.
Moreover, please input the distinction of the inside and outside of the
lathe tool to CNC as a signal at that time. CNC does the conversion
processing by the state of the signal.
•

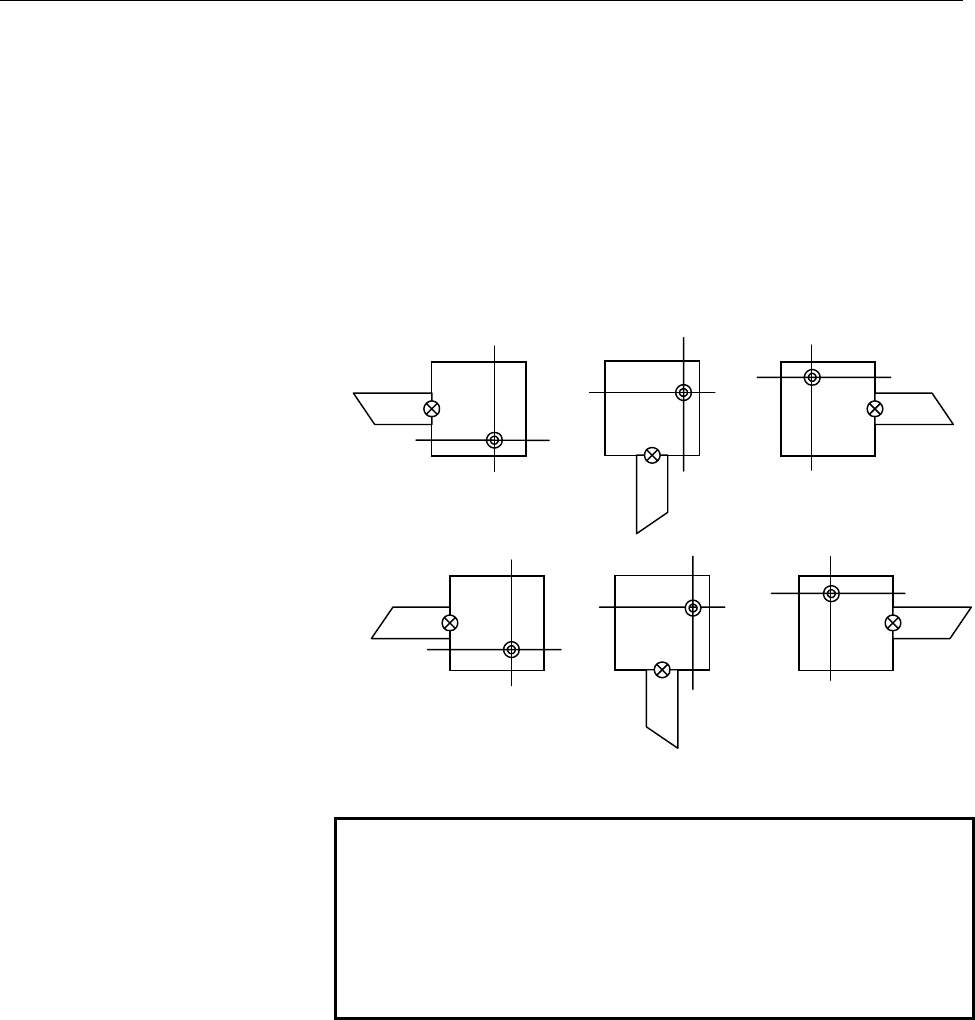

Example of direction of imaginary tool tip direction
< Inside >
< Outside >
Note
The command in order to make offset effective is
necessary whenever the angle of the B axis is
converted. The offset amount conversion is done by
the command.
Ex.) PRM No.13001#1(TO2)=0
→
T code
PRM No.13001#1(TO2)=1
→
G43
34 1
23 4
Previous page
Next page
