FS 16i-160i-LA Two Laser oscillators control function Additional Manual Page 4

Additional Manual
01 01.10.19 Tokito Newly designed.
Drawing No.
A - 78540E
Tilte
FS-16i/160i-LA
Two laser oscillators control functions
-- Specifications --
Edit Date Design Recog. Contents Page 4 / 9
DATA
I/O unit
Machine
Operator’s panel 1
CNC２
PMC２
I/Ounit
LASER２LASER１
I/O LINK connection
unit
I/Ounit
PMC1
A
xis control
CNC１
Operator’s
panel 2

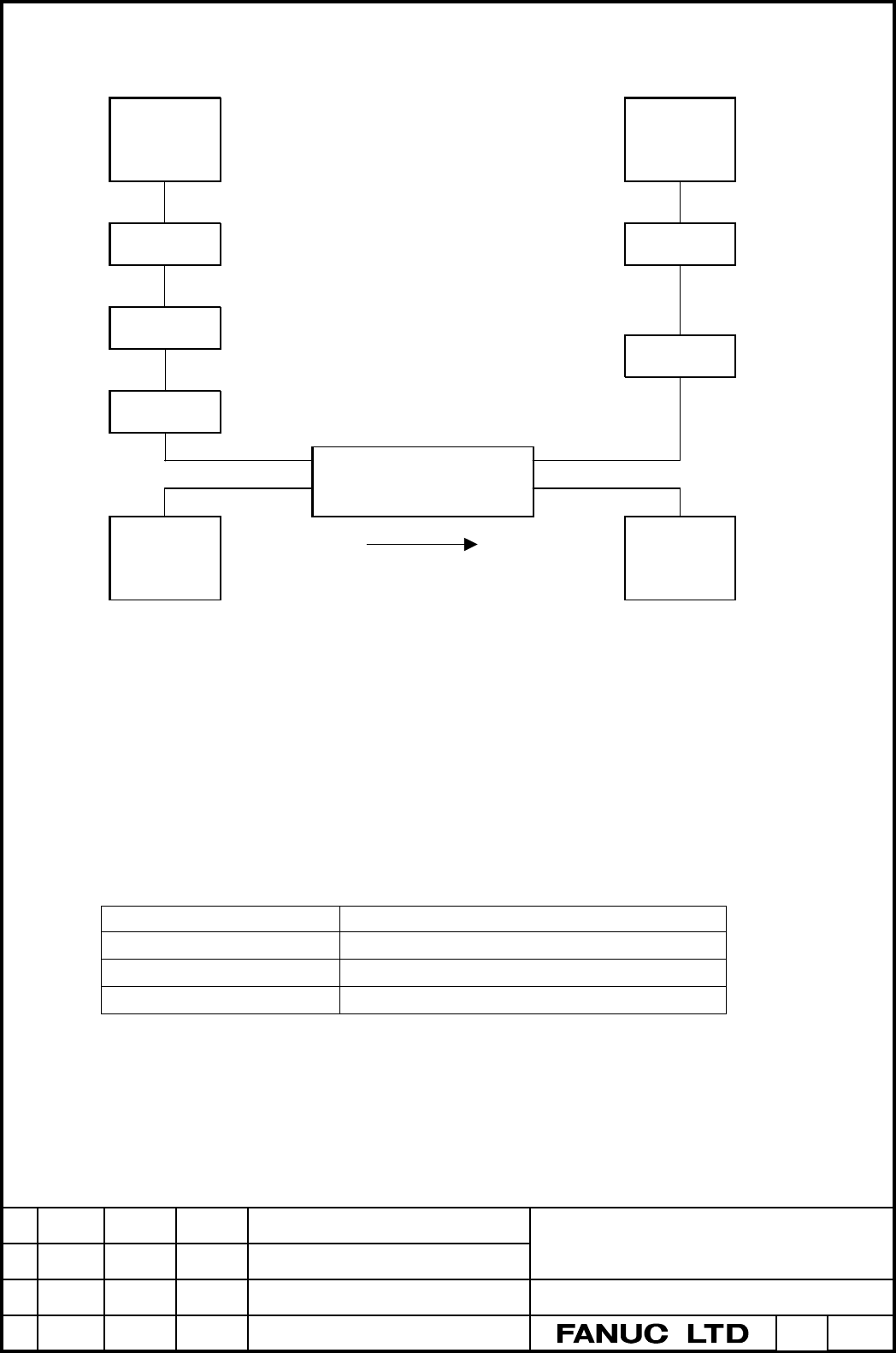

Fig2. Example of CNC connection
I/O UNIT of operator’s panel or machine should be selected arbitrarily. (I/O Unit model-A,
I/O B3 board, etc are available.)
However, because the data area has been booked to the laser for three groups, MTB can
use the data area of 13 groups including the I/O Link connecting unit.
The I/O Link connecting unit can treat DI/DO of 256/256 points in the maximum. The number of
actually used points should be allocated on host side(PMC1,PMC2).
There are three kinds of specifications for I/O Link connecting unit. Please select one of them by the
interface.
Kind of interface Specifications
Metal－Optical Ａ０２Ｂ－２０００－０４１０
Metal－Metal Ａ０２Ｂ－２０００－０４１１
Optical－Optical Ａ０２Ｂ－２０００－０４１２
2-3 Outline of control
The outline of the control shown in Fig2.is described as follows.
1. CNC1 has axes control function. CNC2 has only the oscillator control and does not
has
