B-66244EN/03 2.FANUC PICTURE (Windows)

- 99 -

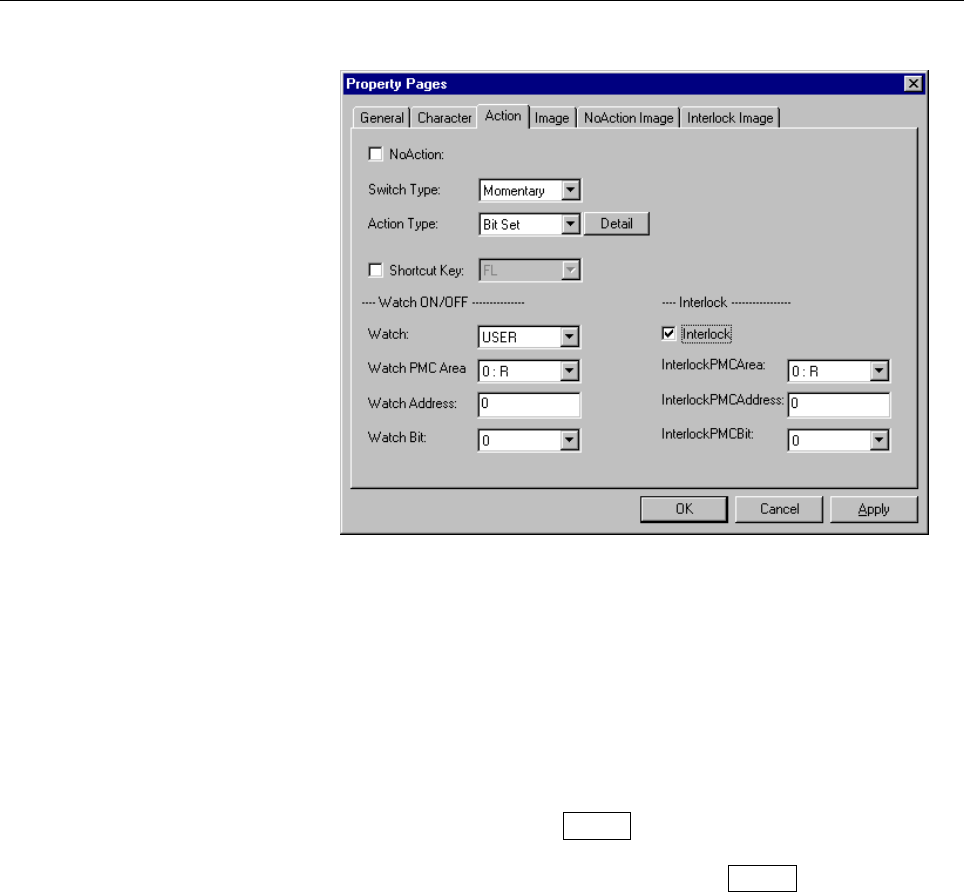

- Action

NoAction:

Check this check box to disable the button control function.

The control can be placed on the form, but can be disabled, in

which case the display is embedded.

Set the lamp image for no action set in the Image tab.

Switch Type:

Select a switch type. This property is valid for other than screen

switch action.

Action Type:

Specify operations to be performed when a switch is pressed and

released. Click the Detail button and set the detailed properties

of the selected type.

For the method of setting, see [Action Detail Properties].

[Bit Set]

Performs bit operation in the PMC area.

[Data Set]

Writes fixed data as word-size data to the PMC area.

[Function Call]

Calls an FP function.

[Change Screen]

Calls another screen. (Used with momentary type)

Shortcut key:

If you want to execute an operation set up on the Action tab by

pressing an associated shortcut key, turn on this check box.

An operation associated to the shortcut key setting can be

executed by pressing the key on the display unit, no matter

whether it has a touch panel, or touching the corresponding button

on the touch panel (if available).

The following key types can be selected:

1. Soft keys (FL, F1 - F9, and FR for 10 + 2 soft keys

FL, F1 - F5, and FR for 7 soft keys)

2. Cursor / Page key (←,→,↑,↓,Page-UP,Page-DOWN)
