2.FANUC PICTURE (Windows) B-66244EN/03

- 152 -

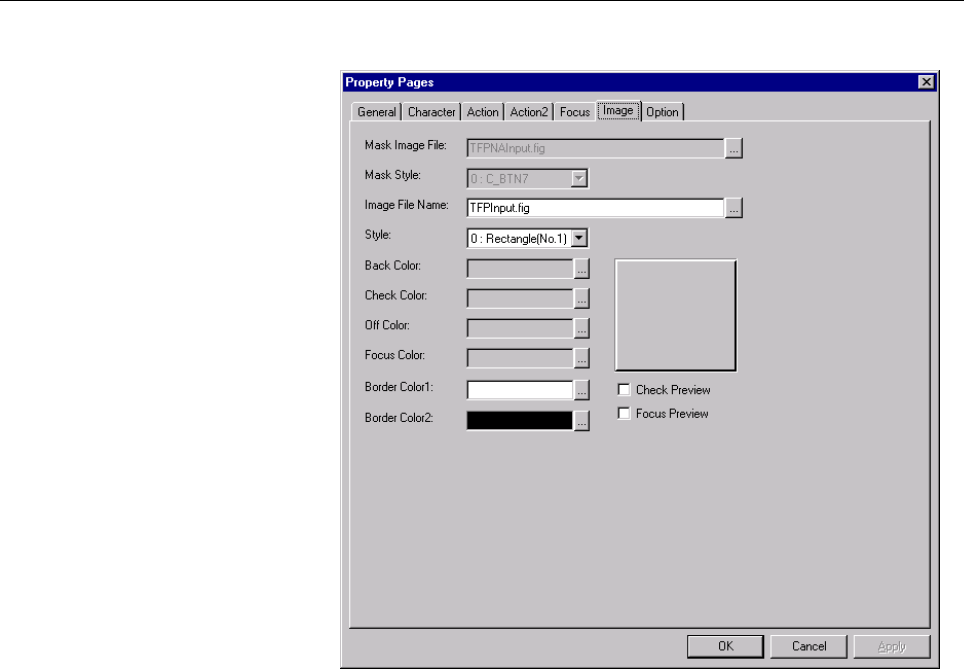

- Image

Mask Image File:

The FIG file holding the embedded figures to be used when the No

Action check box in the Action tab is checked can be selected.

Mask Style:

Select a type of embedded figure registered in Mask Image File.

Image File Name:

The FIG file holding the control figures to be used when the No

Action check box in the Action tab is not checked (that is, when

the function is enabled) can be selected.

Style:

Select a type of control figure registered in Image File Name.

Back Color:

Specify the background color of the rectangle of the control.

Check Color:

Select a color to be used for the light section when the check

function returns a value other than zero.

Off Color:

Select a color to be used for the light section when the check

function returns zero.

Focus Color:

Select a color to be used for the light section when the control has

focus .

Border Color 1:

Select a frame color for the upper edge and left edge of the control.

Border Color 2:

Select a frame color for the lower edge and right edge of the

control.
