2.FANUC PICTURE (Windows) B-66244EN/03

- 114 -

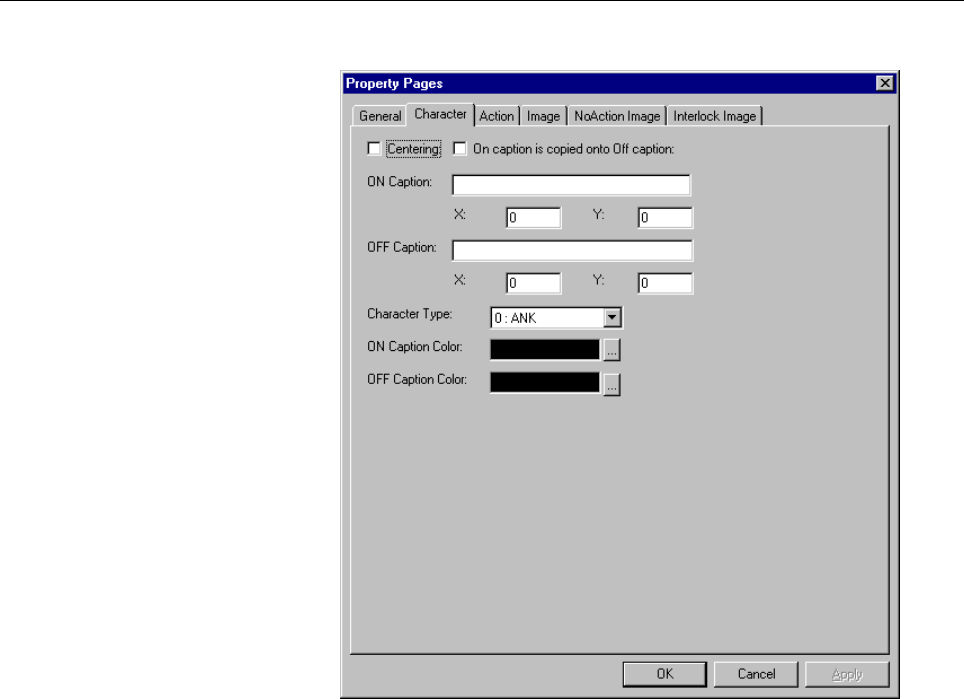

- Character

Centering:

Check this check box to center the caption display position

automatically in the vertical and horizontal directions within the

rectangle of the control.

On caption is copied onto Off caption:

Checking this check box causes the On caption settings to be

automatically copied as the Off caption settings.

ON Caption:

Set a character string to be output to the light section when the

PMC light signal is on.

A character string that cannot be completed on one line can be

continued by inserting "\n" before continuing onto the additional

line.

Although no new line mark is indicated, new line operation is

automatically performed at the right edge of the rectangle.

If the character string not containable in the rectangle is specified,

those characters that overflow the rectangle are not displayed. If a

character not using a FANUC-specified font is specified, "¨" is

displayed. In such a case, change the character to a displayable

one.

X, Y:

Specify the display position of the caption by using relative

coordinates within the rectangle of the control. Specify the

coordinates of the upper-left corner of the character string to be

displayed. If you have checked the check box for automatic

centering, coordinates after automatic calculation are set.
