B-66244EN/03 2.FANUC PICTURE (Windows)

- 73 -

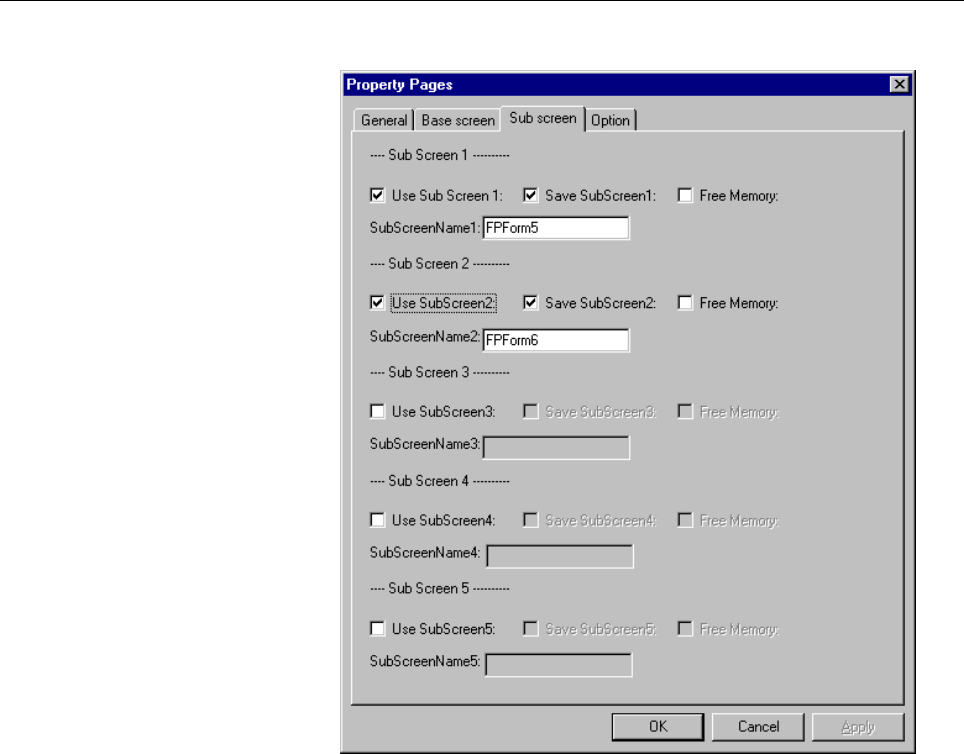

- Sub screen

The procedure for setting the properties below applies to sub screen 1

through sub screen 5.

Use SubScreen n:

Check this box when using the property settings for sub screen n.

Save SubScreen n:

When this base screen is selected and displayed on the screen,

check this box to display the sub screens selected when this base

screen was displayed previously. If you do not check this check

box, the sub screens set in SubScreen n are displayed.

Free Memory:

For high-speed screen display, screen data once read is stored in

the memory inside the touch panel. However, the memory space

is limited. If you check this box for a sub screen that does not need

to be displayed at high speed, sub screen display is performed at

low speed, allowing many other screens to share the memory.

SubScreen Name n:

Set the name of a sub screen to be displayed when a base screen is

first displayed after the power is turned on.
