NOTE
1. When 0 is set in parameter No.1770 or parameter No.1771, linear
acceleration/deceleration before interpolation is not performed.
2. In parameter No.1770 and parameter No.1771, set values that satisfy
the following:
Parameter No.1770 / Parameter No.1771 ≥ 5
3. When 0 is set in parameter No.1770 or parameter No.1771 in the AI-
APC, AICC and AI-NANO-CC modes, P/S alarm 5157 is generated.
1772
Time constant for bell–shaped acceleration/deceleration of acceleration time fixed
type before look–ahead interpolation during AI-APC, AICC and AI-NANO-CC modes
[Data type] Byte
[Unit of data] msec
[Valid data range] 0
~ 255

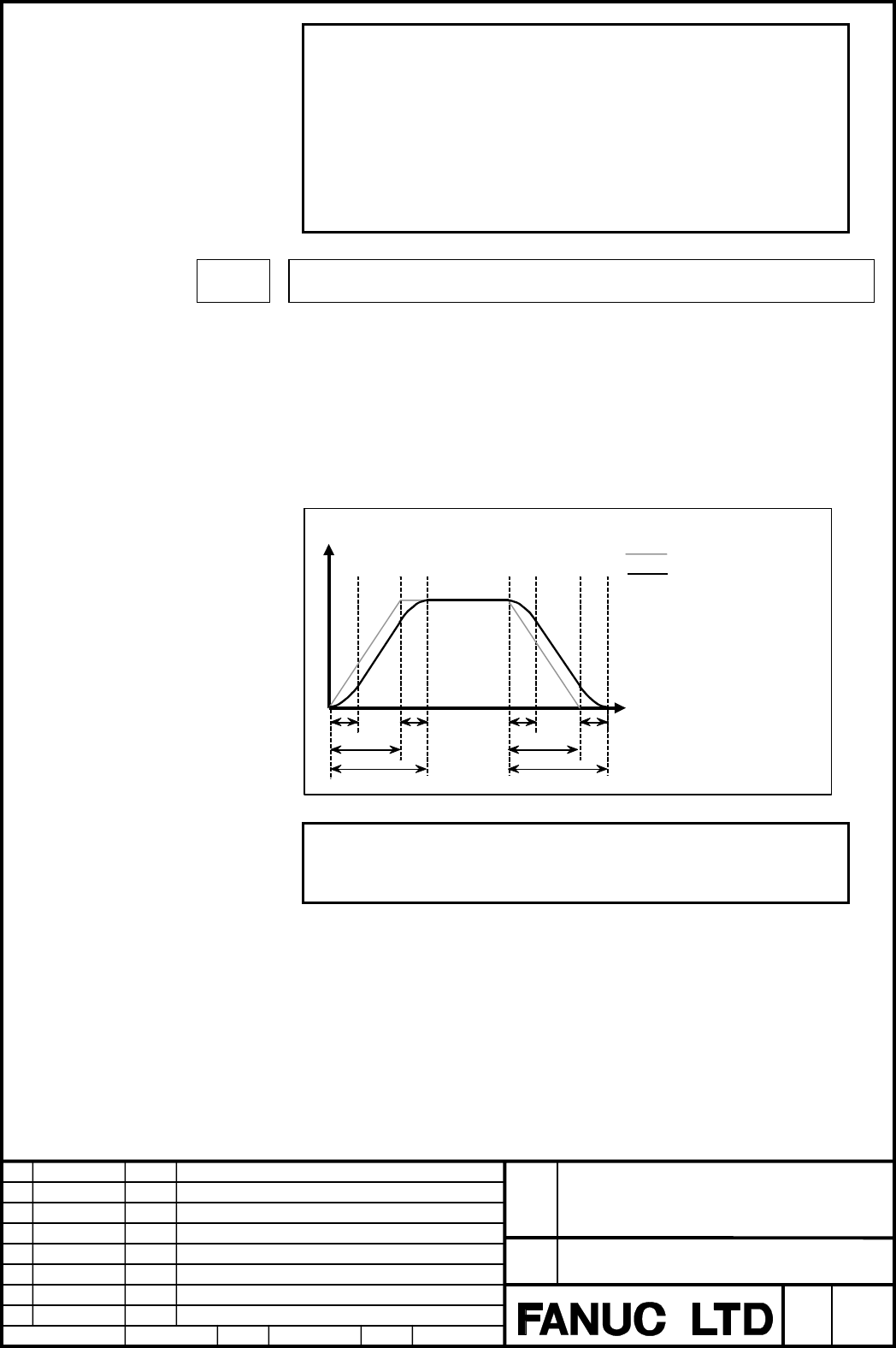

This parameter is set a time constant when the parameter BEL(No.1603#7) is set to 1,
that is, when bell–shaped acceleration/deceleration before look–ahead interpolation
is selected in AI-APC, AICC and AI-NANO-CC modes. Set the value of “tb” as shown
below. When 0 is set, linear acceleration/deceleration before interpolation is applied.
S
eed
Linear acc./deceleration
Time
ta:Time constant for linear
tb:Time constant for bell-shaped
tc: Acc./dec. time for bell-shaped
tc=ta+tb
tb
tb tb tb
ta ta
tc tc
Bell-shaped
acc./deceleration
NOTE
Bell-shaped acceleration/deceleration before look-ahead interpolation
option is necessary.
