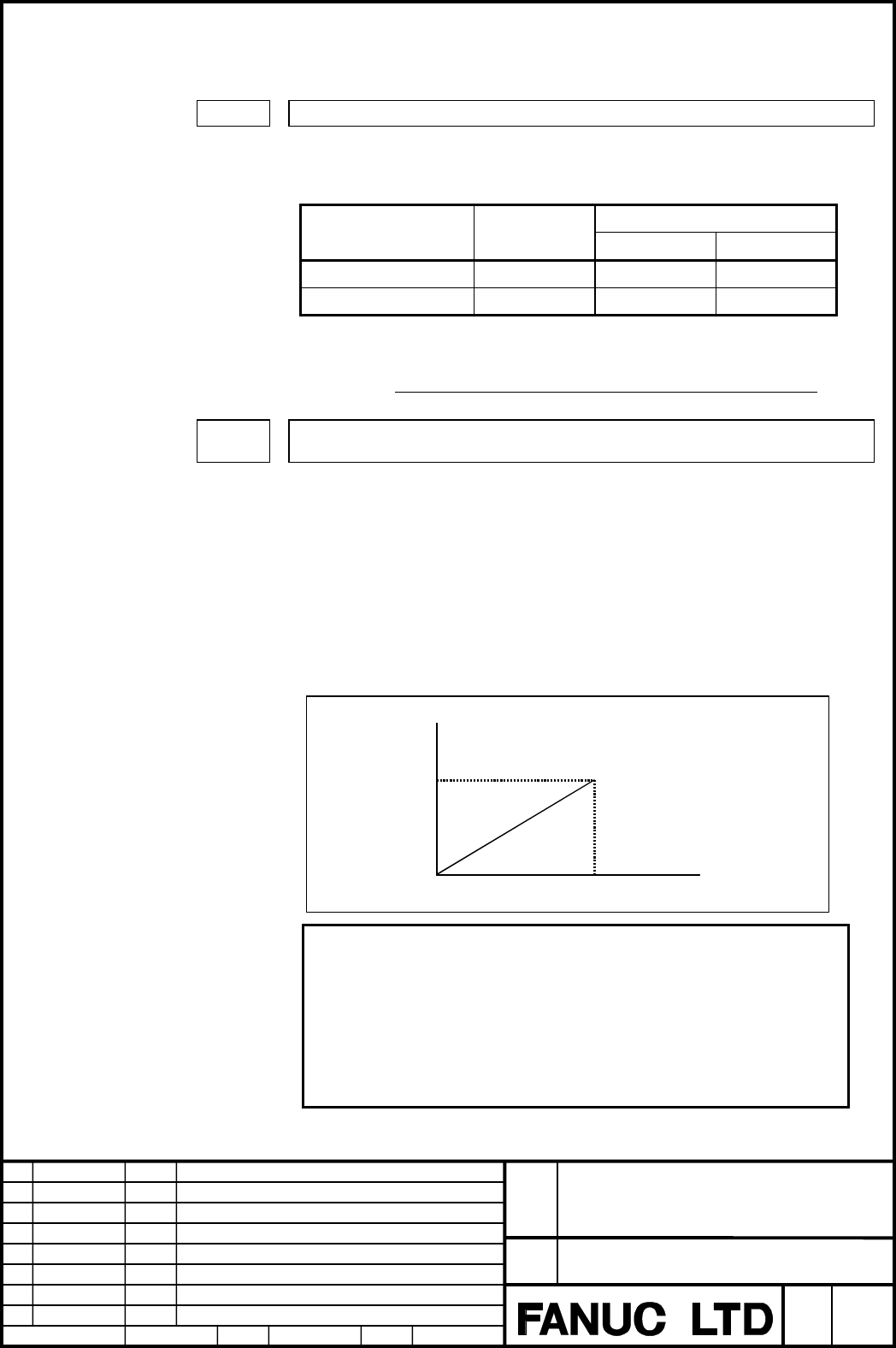

- Acceleration/Deceleration before interpolation for cutting feed during HPCC, AI-HPCC,
AI-NANO-HPCC and 5-axis machining function modes
8400
Parameter 1 for determining a linear acceleration/deceleration before interpolation
[Data type] 2-word
[Unit of data]
[Valid data range]
Valid data range
Increment system Unit of data
IS-B IS-C
Millimeter machine 1 mm/min 10 ~ 240000 1 ~ 24000
Inch machine 0.1 inch/min 10 ~ 240000 1 ~ 24000
This parameter determines an acceleration for linear acceleration/deceleration before
interpolation. Usually, set the maximum cutting speed (parameter No.1422).
8401
Parameter 2 for determining a linear acceleration/deceleration before interpolation
(common to all axes)
[Data type] Word
[Unit of data] msec
[Valid data range] 0
~ 4000
In this parameter, set the time(time constant) to reach the speed set in parameter 1
(No.8400).
When the bell-shaped acceleration/deceleration before interpolation is used, the data
specified in parameter 1 and parameter 2 determines the maximum acceleration of
bell-shaped acceleration/deceleration before look-ahead interpolation.
Speed
Parameter 1
(No.8400)
Time
Parameter 2 (No.8401)
(Maxmum acceleration)
NOTE
1. The function for acceleration/deceleration before interpolation is not
performed when either parameter 1 (No.8400) or parameter 2
(No.8401/No.19510) is set to 0. (Parameter No.19510 is effective in
the AI-HPCC, AI-NANO-HPCC and 5 axis machining mode.)
2. When both parameter No.8401 and No.19510 are set, the setting value
of No.19510 becomes effective.
