PWM Distribution Module
DESCRIPTIONS
Ａ-72562E-029
FANUC LTD

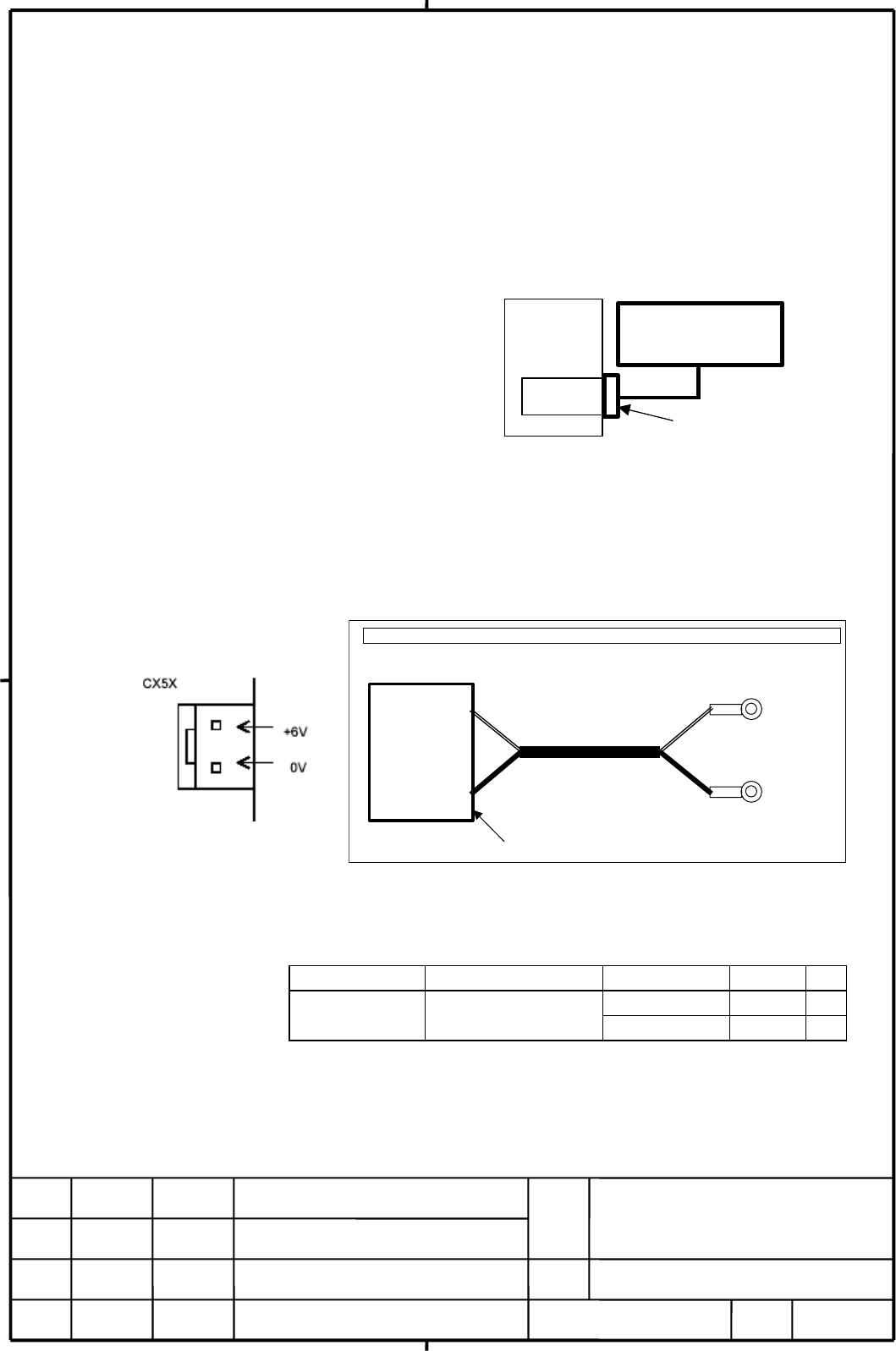

[Connection method 2]
Supplying power from one battery unit to more than one PWM
Distribution Module
PDM
Battery case
A06B-6050-K060
Battery
A06B-6050-K061
Connector
A06B-6093-K303
CX5X
- A battery case (A06B-6050-K060) and four R20 alkaline batteries
(A06B-6050-K061) are available as options. Commercial R20
alkaline batteries can also be used.
[Connection between the battery case and module]
Terminal 1, White
Crimp Terminal 1.25-4
Terminal 2, Black
Crimp Terminal 1.25-4
6V
0V
6V (2,White)
CX5X
Two 0.3mm2 Shielded Wires
0V (1, Black)
Connector A06B-6093-K303
Example of a cable between the batteries and PWM Distribution Module connector CX5X
- A connector kit (A06B-6093-K303) for connecting batteries is
available as an option.
Ordering number Manufacturer Part number Name Q’TY
IL-L2S-S3L-B(N) housing 1 A06B-6093-K303 Japan Aviation
Electronics Industry, Ltd
IL-C2-1-00001
contact 2
- As for tools, contact the connector manufacture (Japan Aviation
Electronics Industry, Ltd) .
Connector pin assignment of CX5X
(2)
(1)
