PWM Distribution Module
DESCRIPTIONS
Ａ-72562E-029
FANUC LTD

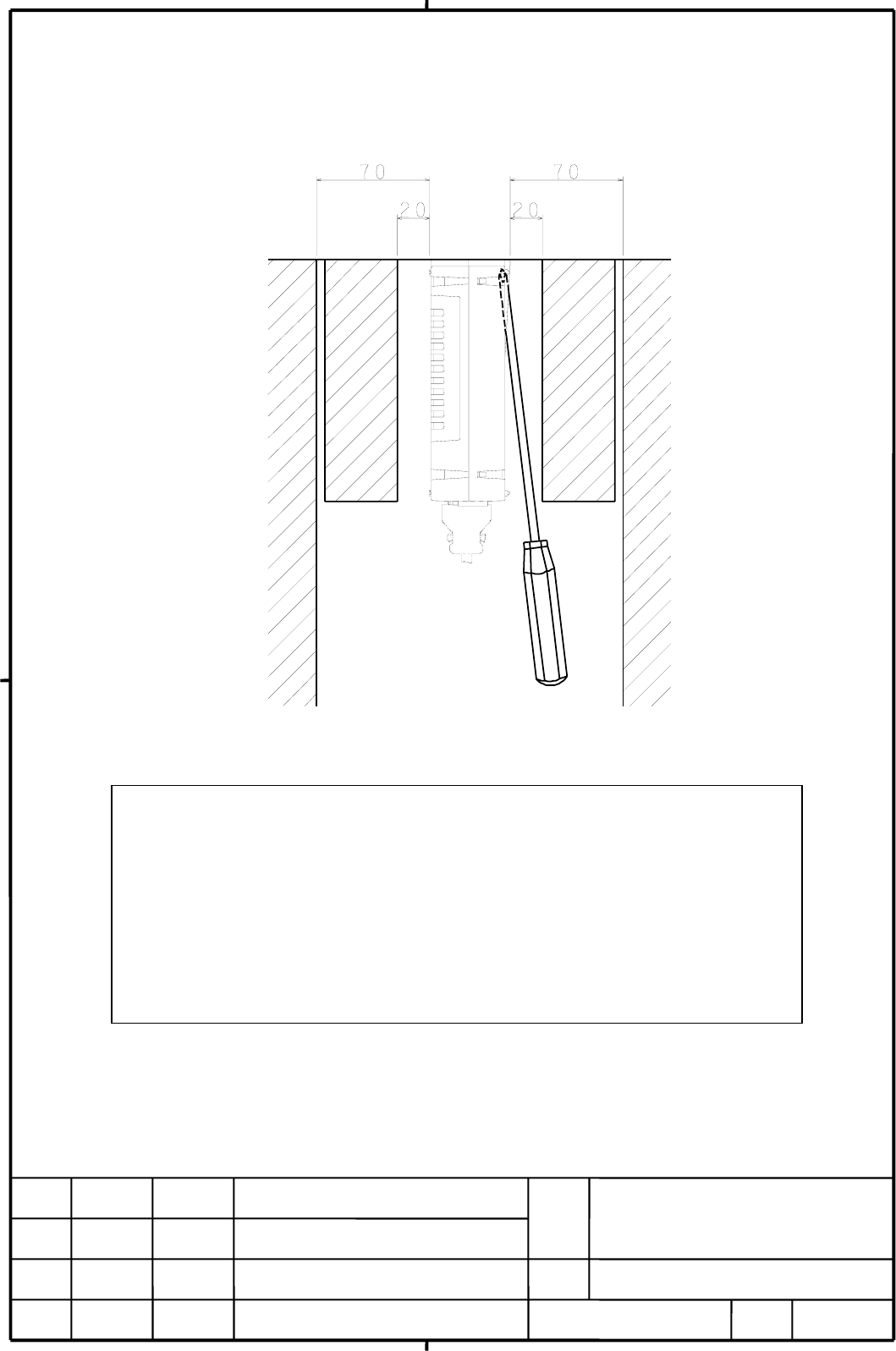

9.5. Maintenance area drawing
CAUTION
To install/remove the module, a screwdriver must be inserted obliquely. So,
sufficient access clearances are required on both sides of the module. As a
guideline, if the front of an adjacent module appears flush with the module or
slightly set back, allow a clearance of about 20mm between the module and the
adjacent module. If the front of an adjacent module protrudes beyond the front of
the module, allow a clearance of about 70mm between the module and adjacent
module. Also, when installing the module near a side of the cabinet, allow a
clearance of about 70mm between the module and the side of the cabinet．
