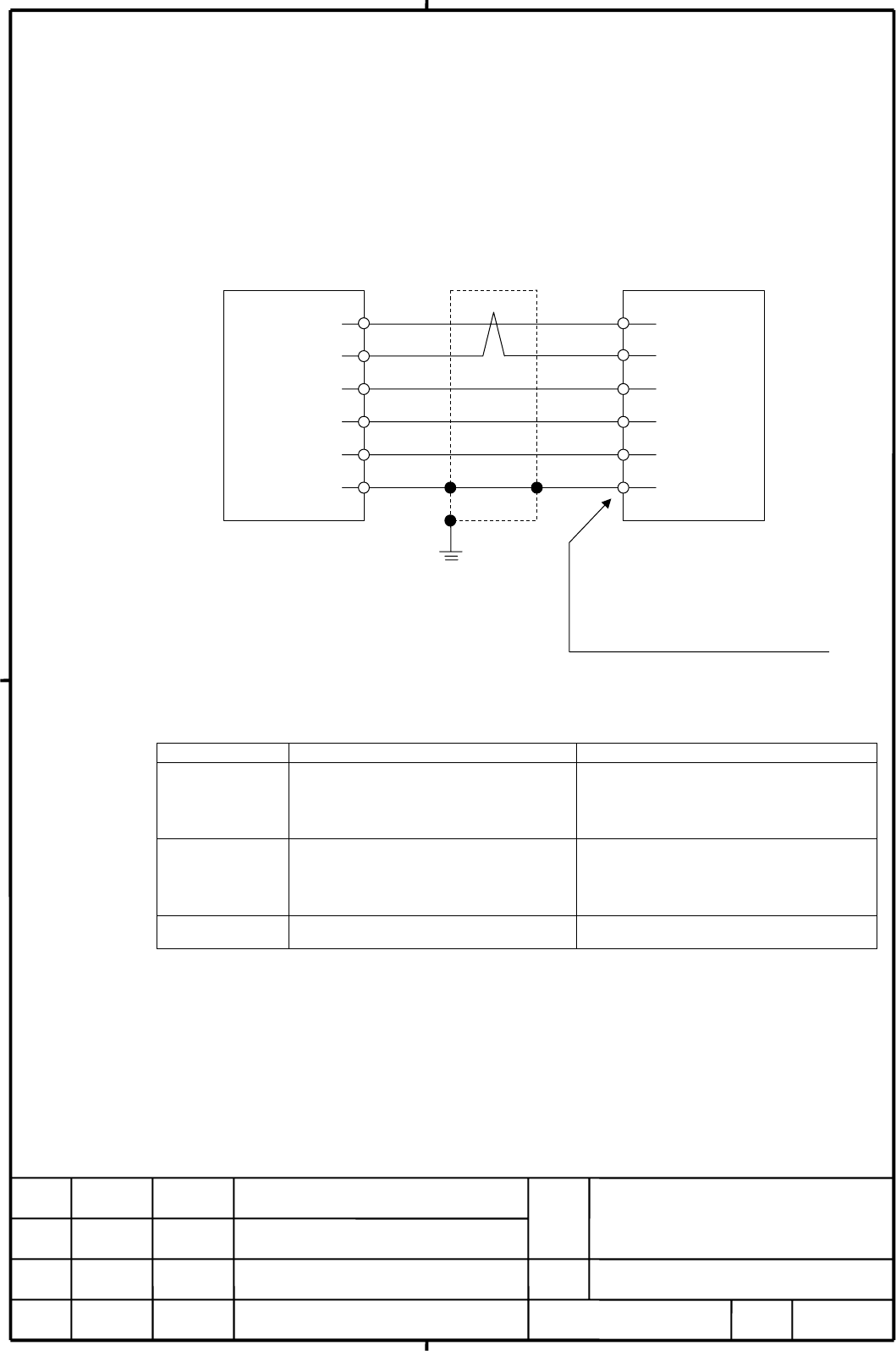

8.2. Detailed description of the connection of cable K2
For servo motor αi, αis, α(HV)i, α(HV)is series
The cable K2 is used to connect the PWM Distribution Module and Pulsecoder.
(5)
Servo motor
(6)
(9, 20)
(12, 14)
PWM
Distribution
Module
(7)
RD
*RD
5V
0V
6V
(6)
(5)
(8, 9)
(7, 10)
(4)
(16)
(3)
Drain wire
Ground plate
Shield
FG
20-pin half-pitch connector
Connector (Japan Aviation Electronics Industry)
JN2x S10SL1 : for
φ
5.7 to 7.3 sheath diameter
JN2x S10SL2 : for
φ
6.5 to 8.0 sheath diameter
D : Straight plug
F : Angle plug
Contact (Japan Aviation Electronics Industry)
JN1-22-22S
Using cable conductor
Signal name Cable length : 28m or less Cable length : 50m or less
5V, 0V, 6V
0.3mm
2
× 5 (Note 4)
Strand configuration 12/0.18 or 60/0.08
Insulation outer diameter φ0.8 to φ1.5
0.5mm
2
× 5 (Note 4)
Strand configuration 20/0.18 or 104/0.08
Insulation outer diameter φ0.8 to φ1.5
RD, *RD
0.18mm
2
or more
Twisted-pair wire
Insulation outer diameter φ0.8 to φ1.5
0.18mm
2
or more
Twisted-pair wire
Insulation outer diameter φ0.8 to φ1.5
Drain wire 0.15mm
2
or more 0.15mm
2
or more
See Subsection 9.4.1 of FANUC SERVO AMPLIFIER αi series
DESCRIPTIONS (B-65282E) for explanations about the PDM-side
connector that matches the recommended cable.
See Appendix B of FANUC SERVO AMPLIFIER αi series
DESCRIPTIONS (B-65282E), "About Cable Conductors," for detailed
explanations about the cable.
