B-63854EN/03 MANUAL GUIDE 0i 1.MANUAL GUIDE 0i

- 631 -

1.5.4.2 Start Point

Selecting type of calculation

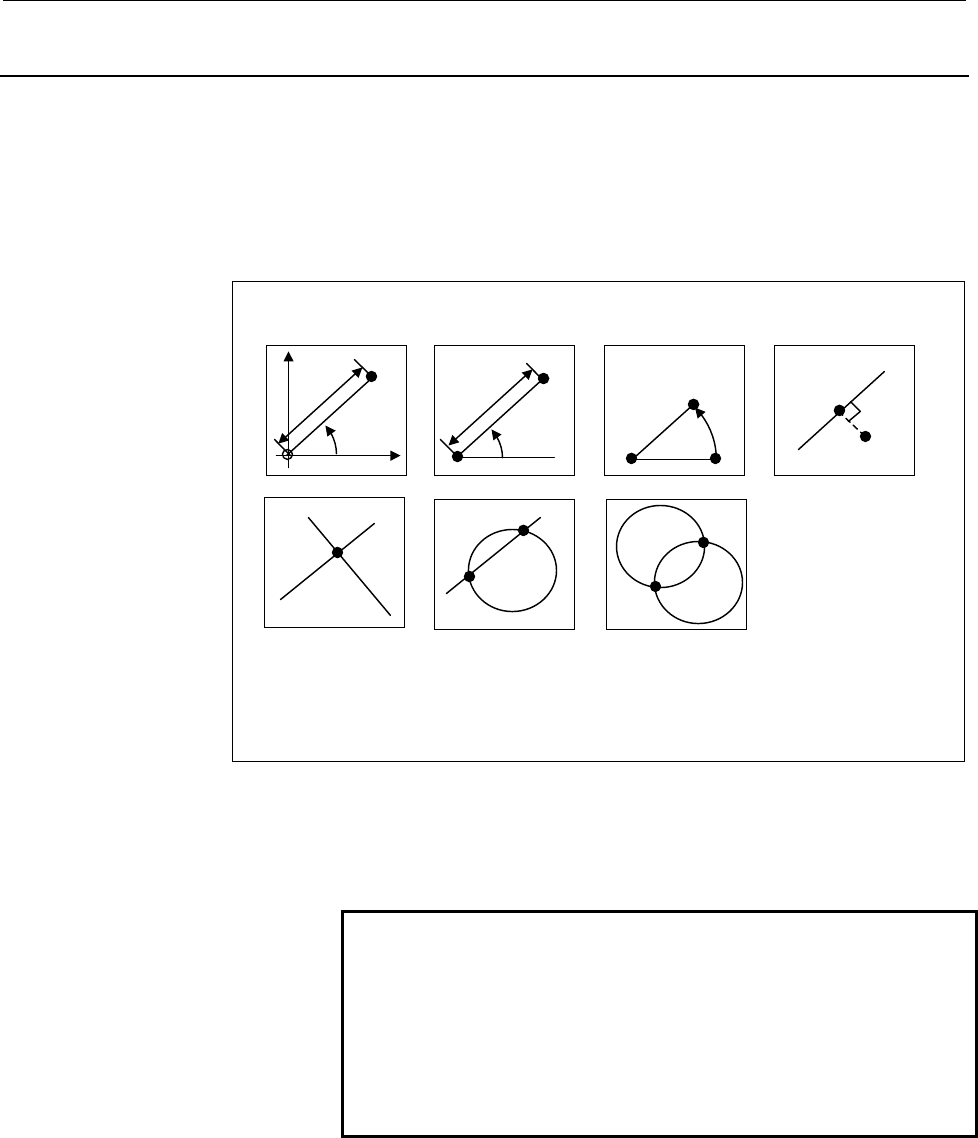

On the data-entry screen for a start point, press [AUX.]. The

following calculation type menu screen will appear.

By pressing the cursor key, scroll through the menu comments until

you find the one to select.

[OK] : Use the active calculation type

[CANCEL] : Cancel selecting operations and return to the previous

screen

NOTE

When bit 5 (AUX) of parameter No.9342 is set to 1,

the menu for auxiliary calculation is displayed as

shown above. By setting it to 0, the menu is

displayed as a list of comments for each

calculation type.

This parameter is available for other auxiliary

calculation menus.

SELECT CALCULATION OF START POINT

1. POINT BY POLAR COORD.

[ ][ ][ ][ OK ][CANCEL ]

3. 4.

5. 6.
