Series 0i Mate - TB Operators manual Page 671

Operators manual

Page of 756

/ 756

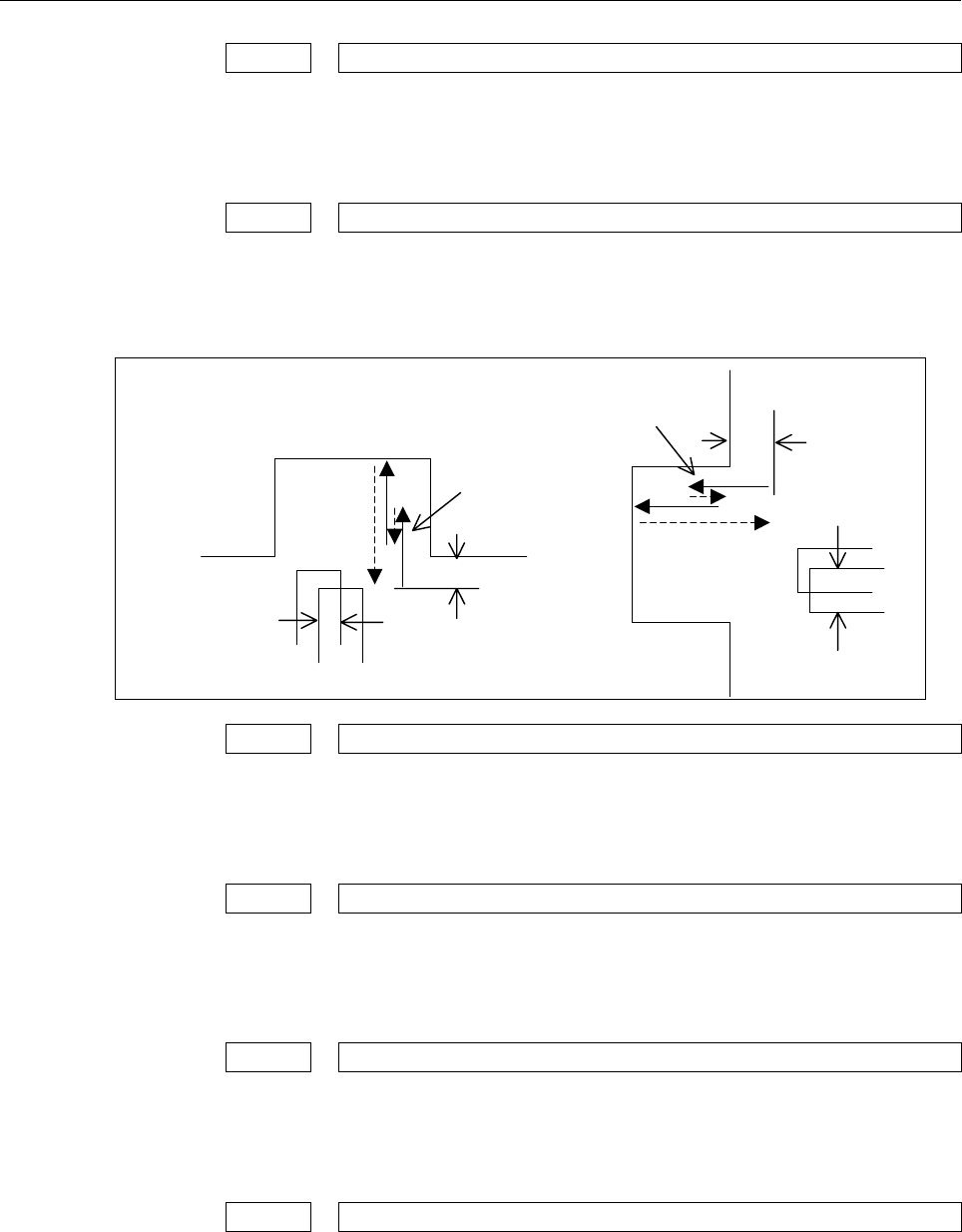

B-63854EN/03 MANUAL GUIDE 0i 1.MANUAL GUIDE 0i

- 647 -

9820

CLGRVX

CLGRVX Clearance (diameter) of the X-axis in outer or inner grooving.

Valid data range : 0 to 99,999,999

Units : 0.001mm, 0.0001inch

9821

CLGRVZ

CLGRVZ Clearance (radius) of the Z-axis in end face grooving.

Valid data range : 0 to 99,999,999

Units : 0.001mm, 0.0001inch

9824

GRVBCK

GRVBCK Pecking clearance for grooving (radius).

Valid data range : 0 to 99,999,999

Units : 0.001mm, 0.0001inch

9825

OVLGRV

OVLGRV Overlaps between each cutting in grooving (proportion to the tool

width).

Valid data range : 0 to 100 Units : 1%

9833

TRDMIN

TRDMIN Minimum depth (radius) of cut for threading.

Valid data range : 0 to 99,999,999

Units : 0.001mm, 0.0001inch

9850

DRLDEC

DRLDEC Reduced depth of cut in peck or high-speed peck drilling (radius)

Valid data range : 0 to 99,999,999

Units : 0.001mm, 0.0001inch

CLGRVX

GRVBCK

OVRGRV

CLGRVZ

GRVBCK

OVRGRV
