1. Fanuc
  2. Series 30i-MODEL A, Index Table Indexing

Series 30i-MODEL A, Index Table Indexing Additional Manual Page 5

Additional Manual
A-79355E
Title
Draw
No.
Ed. Date Design Description
Date Jan.06.’04 Desig. Apprv.
3/12
Sheet
FANUC Series 30i-MODEL A
Index Table Indexing
This completes the sequence.

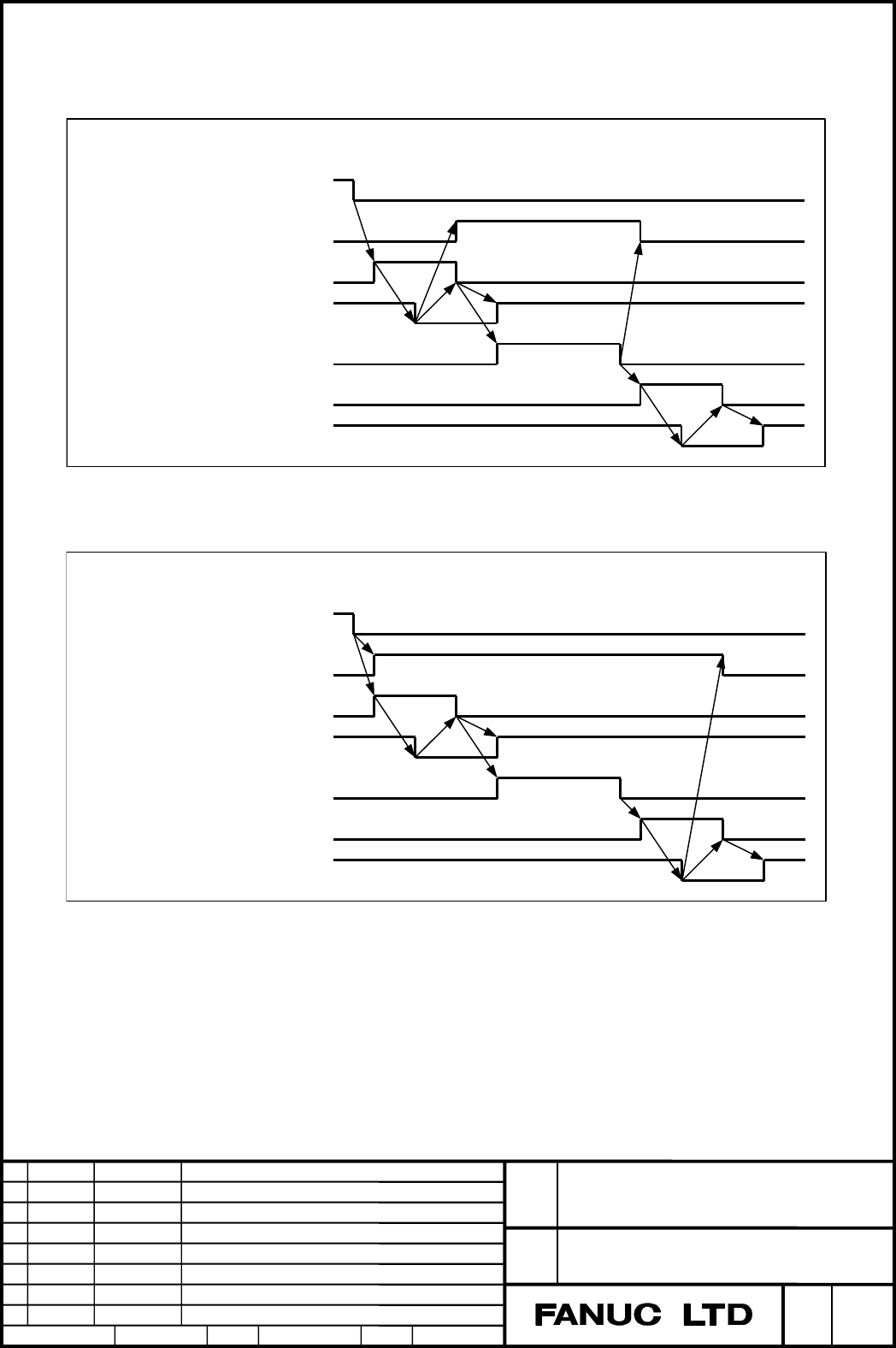

The time charts for these operations are shown in the figures below.
B command
(
inde
p
endent
)
B axis servo on for position control
B axis unclamp si
g
nal BUCLP
B axis unclamp completion signal
*BEUCL
B axis rotation
B axis clam
p
si
g
nal BCLP
B axis clam
p
com
p
letion si
g
nal *BECLP
(
1
)
(
2
)
(
3
)
(
4
)
(
5
)
(
6
)
(
7
)
(
8
)
(
9
)
Fig. 1.1 (a) Time chart for positioning index table (type A)
B command (independent)
B axis servo on for position control
B axis unclamp signal BUCLP
B axis unclamp completion signal *BEUCL
B axis rotation
B axis clamp signal BCLP
B axis clamp completion signal *BECLP
(1)
(2) (3) (4) (5) (6) (7) (8) (9)
Fig. 1.1 (b) Time chart for positioning index table (type B)
