B-63945EN/01 1.DISPLAY AND OPERATION
- 107 -
21 Click the [SCALE SET] soft key.

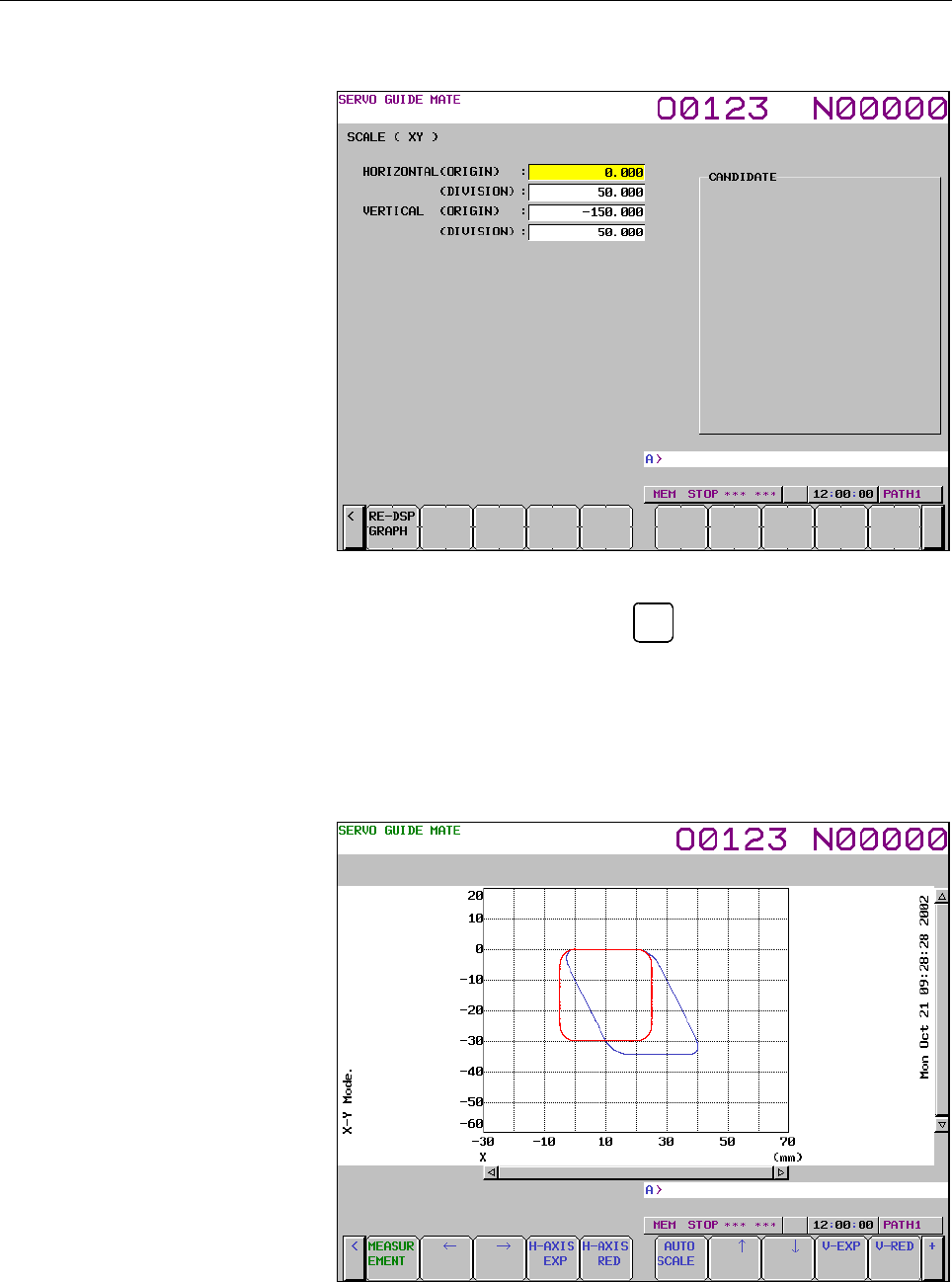

The scale setting screen is displayed as shown below.
22 Move the cursor to the parameter you want to set, by pressing the
cursor key.
23 Enter data and the press the
INPUT
key.
24 Repeat steps 22 and 23 until you set all the parameters.
25 Click the [RE-DSPGRAPH] soft key.
26 Click the [MEASUREMENT] soft key.
27 Click the [START] soft key.
28 Start the automatic or manual operation.
29 When the measurement is completed, the wave display screen is
displayed as shown below.
