5.CONNECTION TO CNC PERIPHERALS B-63943EN/02

- 92 -

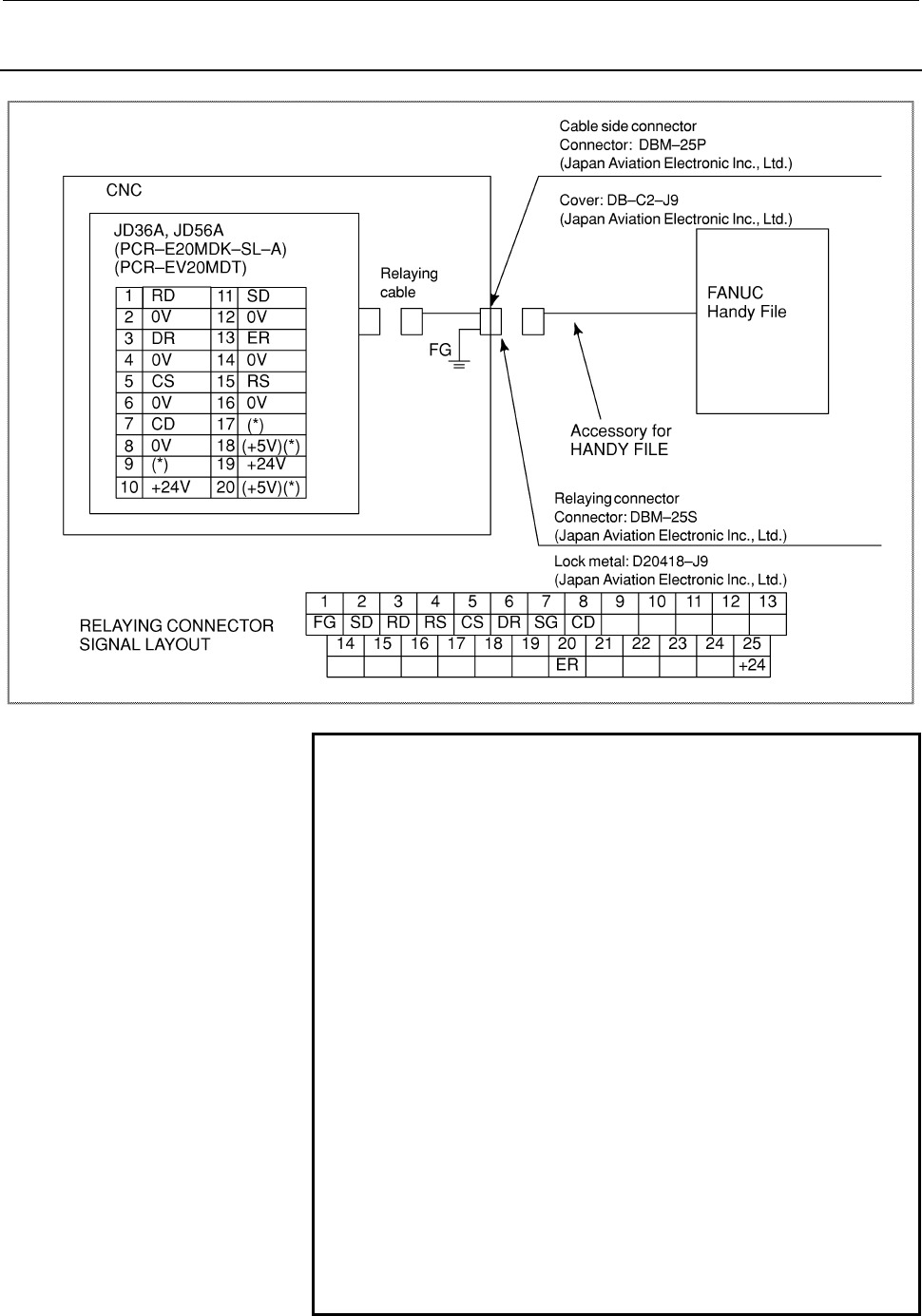

5.3.5 FANUC Handy FILE

NOTE

1 Machine tool builder shall furnish relay connector

and relay cable.

2 Use a totally shielded cable for the signal cable.

Recommended cable specification:

A66L-0001-0284#10P

3 Open all terminals other than illustrated.

4 Set suitable parameters on reader/puncher interface

for FANUC Handy File. The baud rate is 4800

baud in standard.

5 The maximum number of FANUC Handy FILEs that

can be connected to the system is one. The +24V

power supply capacity is exceeded if two or more

channels of FANUC Handy FILE are connected.

6 Make no connections to pins 18 (+5V) and 20 (+5V).

JD5A and JD5B have no +5V pins.

7 The upper connector name on the CNC side is for

the LCD-mounted type. The lower connector

name, enclosed in parentheses, is for the

stand-alone type.

8 With JD56A, the pins marked with an asterisk (*) are

used for a serial spindle.
