D.OPTICAL FIBER CABLE APPENDIX B-63943EN/02

- 462 -

Optical connector

Reinforcing cover

Optical connector

Reinforcing cover

Wire with a hook

Tension member

Tape

2 cords combined

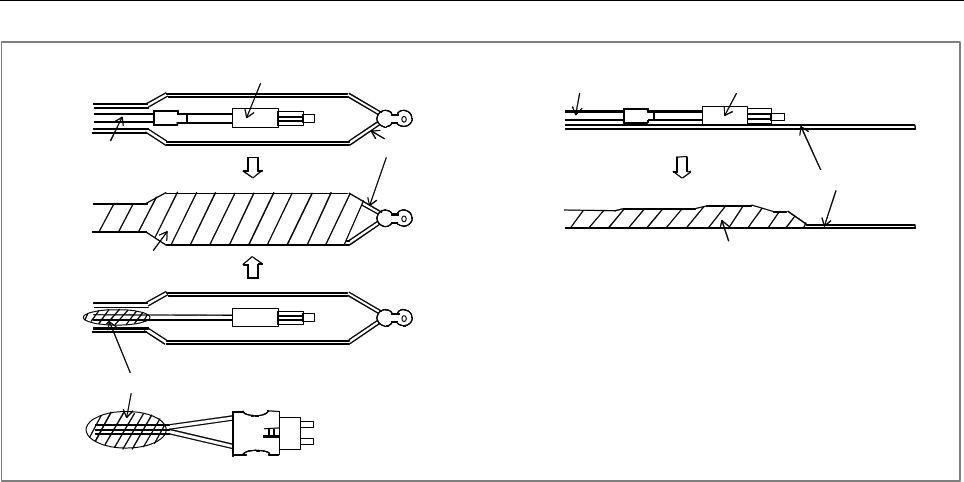

Fig. D (d) Prior to installing a cable

• Take care to keep both parts of the optical connector (cable

side and PCB side) clean. If they become dirty, wipe them

with tissue paper or absorbent cotton to remove dirt. The

tissue paper or absorbent cotton may be moistened with

ethyl alcohol. Do not use any organic solvent other than

ethyl alcohol.

• Fix the reinforcing cover of the external cable or the cord

binding portion of the internal cord type cable by using a

cable clamp, as shown in Fig. D(e), to prevent the weight of

the optical fiber cable from being applied directly to the

connecting part of the optical connector.

(Recommended cable clamp) Recommended cable clamps are

listed below. Use a clamp that

grasps the optical cable lightly;

the clamp should not apply

excessive pressure to the cable.

For an external cable CKN-13SP (with sponge)

(Kitagawa Industry Co., Ltd.)

For an internal cord type cable

MN-1 (Kitagawa Industry Co.,

Ltd.)
