30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 254

Connection manual (Hardware)
8.CONNECTION TO FANUC I/O Link B-63943EN/02
- 236 -
also the fixed addresses that are directly supervised by the CNC, and
keep the following in mind.

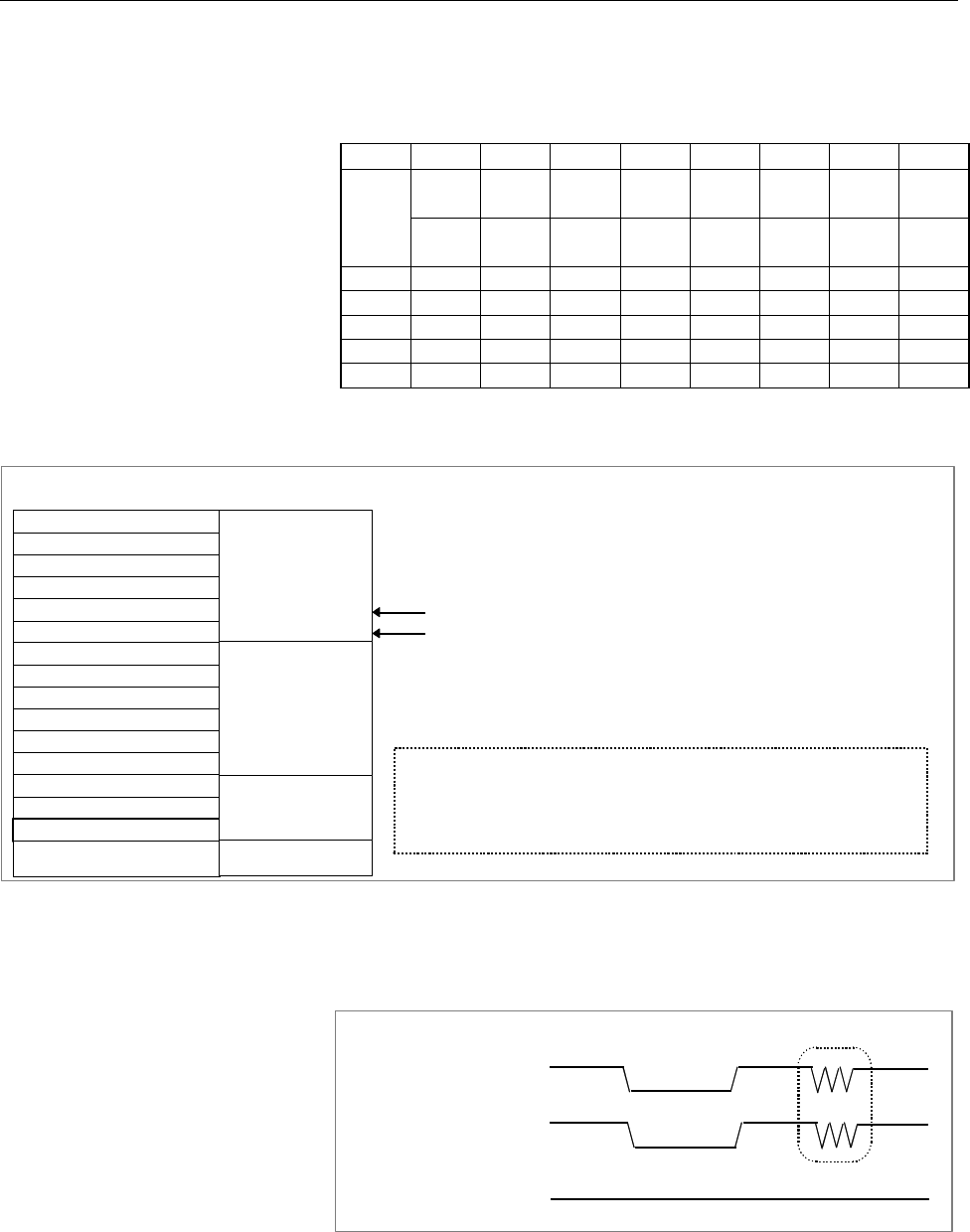

Fixed addresses directly supervised by the CNC (for Series 30i)
7 6 5 4 3 2 1 0
SKIP ESKIP -MIT2 +MIT2 -MIT1 +MIT1 ZAE XAE
SKIP6 SKIP5 SKIP4 SKIP3 SKIP2 SKIP8 SKIP7
SKIP ESKIP SKIP5 SKIP4 SKIP3 ZAE YAE XAE
X0004
SKIP6 SKIP2 SKIP8 SKIP7
X0005
X0006
X0007
X0008 *ESP
X0009 *DEC4 *DEC3 *DEC2 *DEC1
The upper row indicates those signals used for the T series. Those in
the lower row are for the M series.
X0004
X0005
X0006
X0007
X0008
X0009
X0010
X0011
X0012
X0013
X0014
X0015
X0016 (for 1st MPG)
X0017 (for 2nd MPG)
X0018 (for 3rd MPG)
X0019 (DO alarm
detection)
*DECn fixed signal
*ESP fixed signal
A
llocating DI addresses from X0004 allows the fixed signals, such as
SKIP and *DECn, to be used and the *ESP fixed signal to be allocated to
an address for which the common voltage in fixed to 24 V.
Input signal
Not used
MPG
DO alarm detection
When DI addresses are allocated in units of 16 bytes, starting at X0004
Turning the DO (output signal) power on and off (DOCOM)
All the DO signals can be turned off simultaneously by turning off
(opening) the DO (output signal) power supply pin "DOCOM".
Doing so causes the DO signal status to change as shown below.
DOCOM
ON
OFF
When DO is ON in
the sequence
When DO is OFF in
the sequence
ON
OFF
ON
OFF
