1. Fanuc
  2. 30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A

30i/300i/300is-A, 31i/310i/310is-A & A5, 32i/320i/320is-A Connection manual (Hardware) Page 319

Connection manual (Hardware)
B-63943EN/02 11.CONNECTION FOR Series 300is/310is/320is
- 301 -

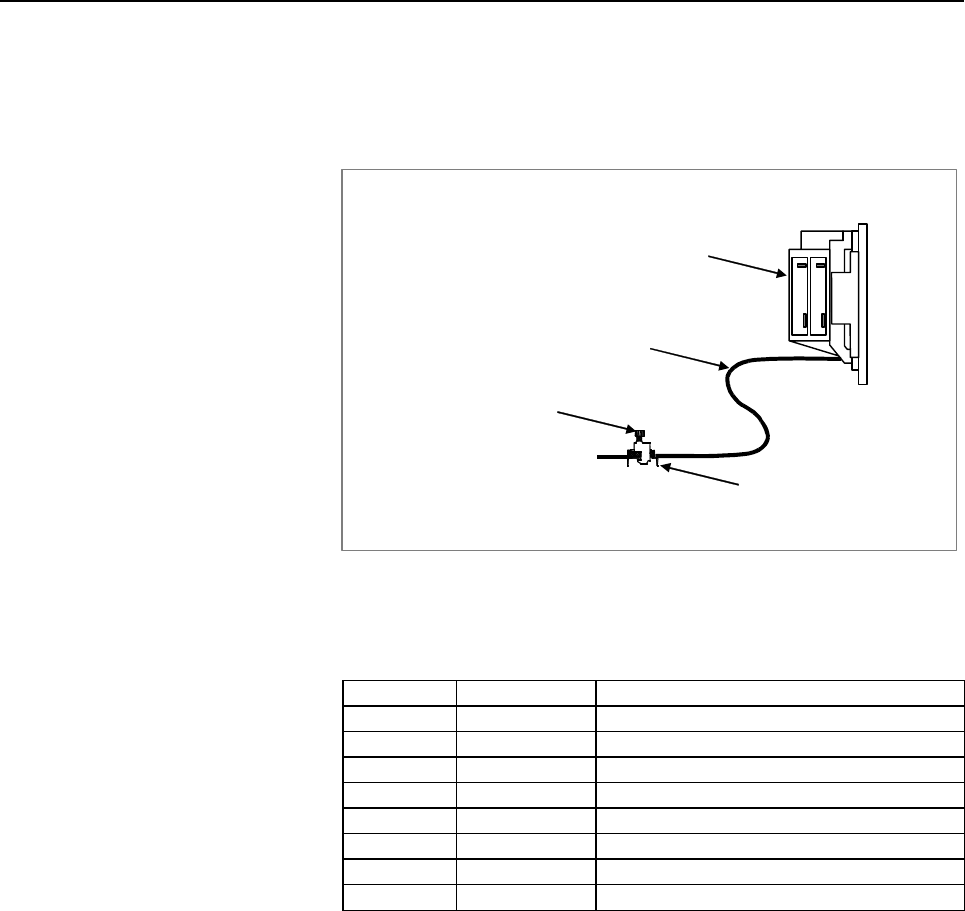

(2) Leading in Ethernet cables
An Ethernet cable should be fixed with a clamp or the like so that
pulling it will not cause tension to be applied to the connector
(RJ-45) at the end of the cable. The clamp not only fixes the
cable but also grounds the shield of the cable.
Ethernet cable
Ground plate
Clamp
LCD-mounted type or display
unit for
i
s series CNC
(3) Pin arrangement of the 10BASE-T/100BASE-TX connector
(CD38S)
CD38S
Pin No. Signal name Description
1 TX+ Transmit +
2 TX- Transmit -
3 RX+ Receive +
4 Not used
5 Not used
6 RX- Receive -
7 Not used
8 Not used
